In recent years, stacked flexo printing machine have entered the printing market with their environmentally friendly, high-speed, high-efficiency, and excellent substrate adaptability characteristics, gaining favor in industries such as food, daily chemicals, pharmaceuticals, logistics, hygiene products, industrial and agricultural sectors, and labels and stickers. As one of the core components of a stacked flexo press, the ink doctor blade plays an indispensable role in the precision and printing quality of products such as coffee paper cups, trademark labels, and fast food takeaway paper bags. This article will introduce manufacturers to the working principle, importance, and detailed replacement process of the ink doctor blade, hoping to be helpful to your printing production.

Flexographic Printing Diagram

How the Doctor Blade Works

In simple terms, the working principle of the ink doctor blade in a flexographic printer is "metered ink delivery." The fountain cylinder pick up ink and pass ink to the anilox cylinder. The the doctor blade removes the excess ink from the smooth non-engraved portions of the anilox roll and the land areas of the cell walls. Anilox cylinder even spread ink in the surface of the flexible plate. Impression cylinder and plate cylinder press substrate and transfer ink to substrate material surface.

The ink doctor blade in a flexography machine acts like a "precision gate." It instantly removes excess ink from the surface of the anilox roller using a reverse doctor blade, leaving only a precise amount of ink in the cells of the roller. This ensures consistent color in printed products such as cupcake paper cups, food paper bags, jewelry boxes, and perfume and cosmetic bottle labels, even at high printing speeds.

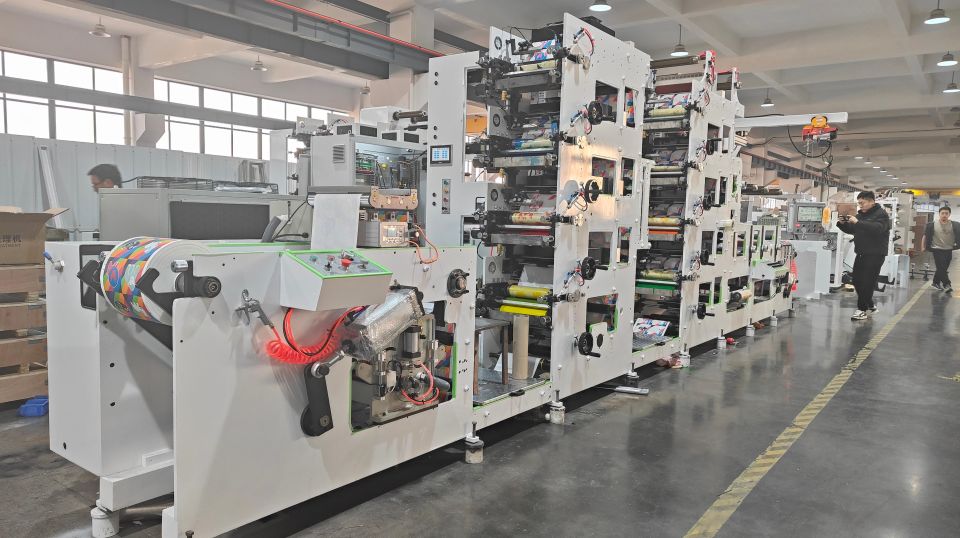

Label Printing Machine for Thank You Stickers

Why the Doctor Blade Matters

As a key component that directly affects the printing quality of flexographic products such as ice cream paper cups, rice packaging bags, and tea packaging valve bags, the importance of the ink doctor blade is mainly reflected in four aspects: determining the ink volume, ensuring stable quality, reducing costs, and guaranteeing high-speed printing.

Determine the Ink Volume.

The ink doctor blade precisely removes excess ink remaining on the anilox roller surface, ensuring that the amount of ink transferred to the printing plate is the ideal amount and is uniform and consistent. This prevents problems such as uneven color, dirty prints, or blank spots in printed materials such as single-wall paper cups, sandwich bread dessert baking paper bags, and vitamin medical bottle labels.

Maintain Quality

Ink doctor blades can reduce splashing and dripping of water-based inks. This reduces the frequency of adjustments during the flexographic printing process. This ensures color consistency and high production efficiency for printed products such as hamburger paper boxes, medical paper pouches, and beverage paper cups.

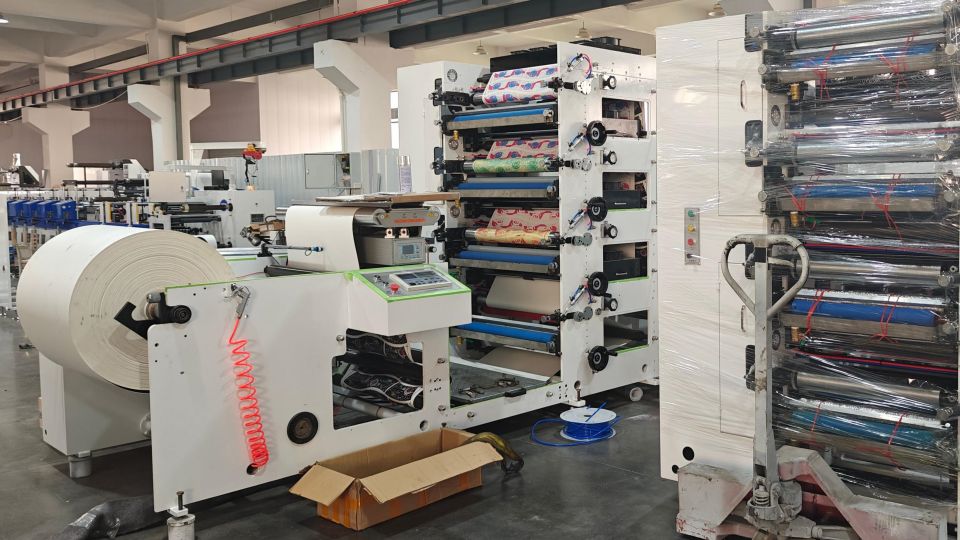

Paper Cup Printing Machine for Yogurt Cups

Reduce Costs

The proper selection and maintenance of ink doctor blades directly affect ink consumption, reject rates, and equipment downtime, which is crucial for controlling production costs.

Keep High Speed

Choosing the right ink doctor blade allows flexographic printing machines to maintain consistent ink removal even at high printing speeds, facilitating high-speed printing production. This is crucial for manufacturers of products with high production demands, such as salad paper bowls, sterilization pouches, and shipping sticker thermal labels.

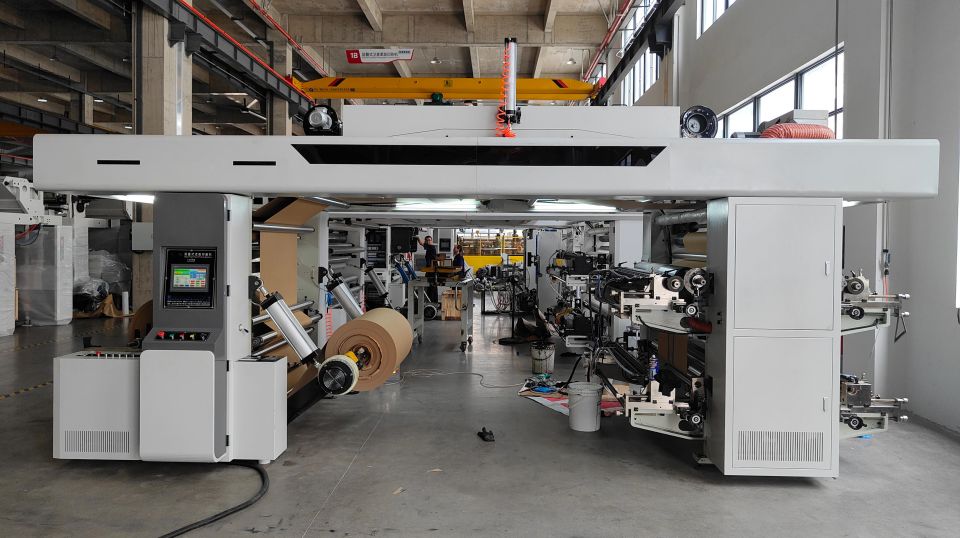

Flexo Printing Machinery for Woven Garbage Bags：

How to Change the Doctor Blade

Replacing the ink doctor blade involves four steps: removing the old blade, cleaning the installation area, installing the new blade, and adjusting and testing.

Click to View the Video＞＞＞

Remove the Old Blade

First, use a tool to remove the fixing screws or clips at both ends of the wiper blade. If you're worried about forgetting the order of the screws, you can take a picture before removing them.

Next, carefully remove the old doctor blade. Avoid scratching the anilox roll or the blade holder during the removal process.

Clean the Installation Area

Currently, the industry primarily uses cleaning agents and lint-free cloths to clean the doctor blade holder and fixing groove. While ensuring there is no ink residue or impurities, it is also necessary to check the doctor blade holder for wear or deformation.

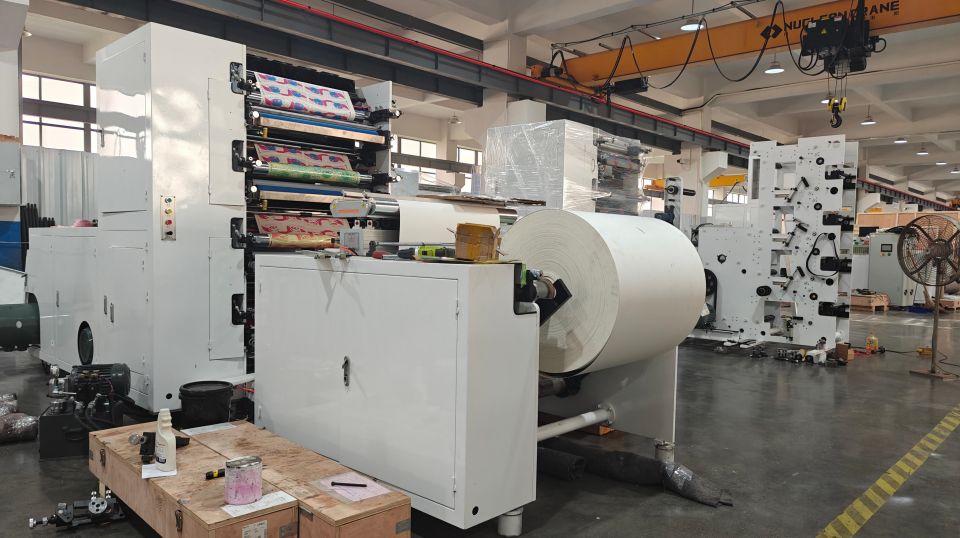

Flexo Printer for Tea Milk Paper Cups

Install the New Blade

First, insert the new doctor blade straight into the doctor blade holder slot, ensuring the blade edge is facing the correct direction (usually the beveled edge faces the anilox roll).

Next, secure the doctor blade. Tightening the fixing screws alternately from the middle outwards will prevent uneven stress.

Finally, check the flatness of the new doctor blade. After installation, use a flashlight to inspect it, ensuring the blade makes even contact with the anilox roll and is not crooked.

Adjust and Test

First, using a method of light pressure followed by fine adjustment, slowly increase the doctor blade pressure until it makes even contact with the anilox roller.

Next, set the flexographic printing press to a low operating speed and observe the doctor blade's ink scraping effect. Simultaneously, check for any ink leaks, incomplete scraping, or unusual noises.

Finally, turn on the ink pump and observe whether the ink supply to the doctor blade area is smooth.

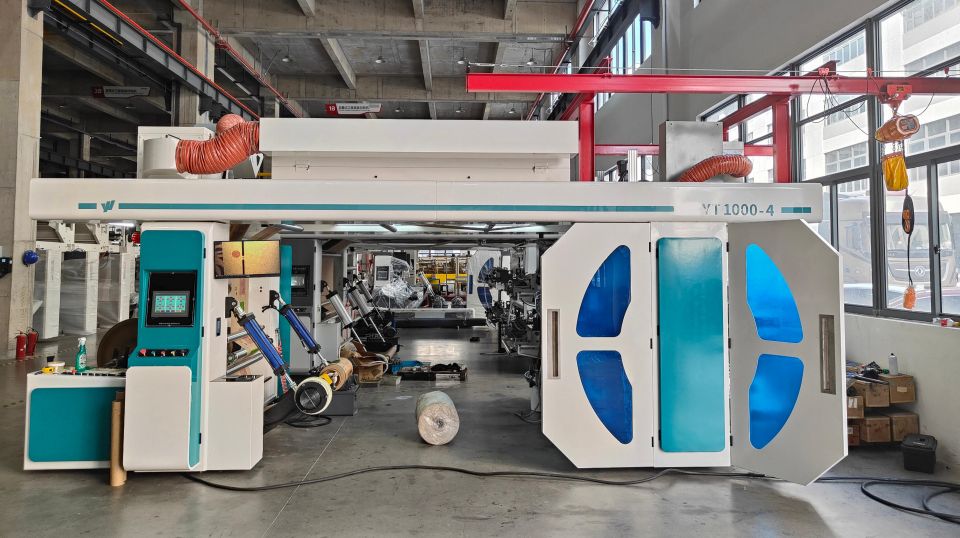

Flexographic Machine for Shopping Clothing Gift Paper Bag

Overall, replacing the ink doctor blade in a stacked flexographic press is a systematic engineering process that combines mechanical precision, material knowledge, and process expertise. Mastering the correct method for replacing the ink doctor blade can contribute to high-quality and efficient flexographic printing of products such as soup paper bowls, advertising stickers, QR code labels, and tissues.
