In recent years, flexo printing machines have been widely used in the production lines of coffee paper cups, facial boby soap wrappers, and gold foil shampoo stickers, gaining strong popularity among food packaging and beverages packaging manufacturers. As a critical consumable component in a flexo press, the doctor blade often wears out quickly. This article begins with the working process of the doctor blade in a flexographic printer, analyzes the causes of its wear in depth, and explores effective strategies to help manufacturers reduce blade wear.

Click to See How to Replace the Doctor Blade of A Flexo Press

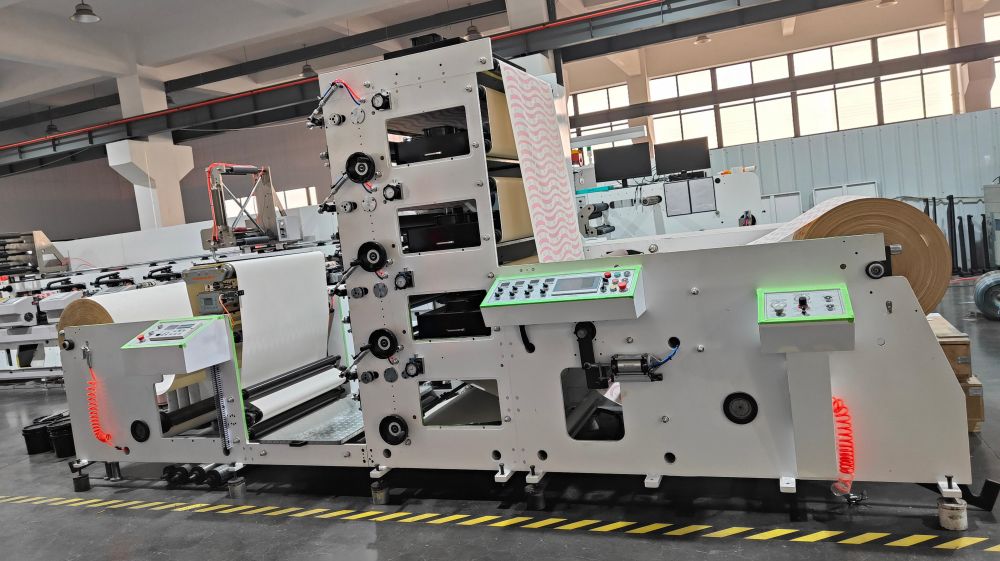

Flexo Printer for Soup Paper Bowls

Working Process of the Doctor Blade

The doctor blade is used in flexographic printing machines to precisely control the ink volume. It not only retains the required ink on the anilox roller or printing plate while removing excess ink, but also helps control print density, improve print clarity, reduce ink splashing and plate contamination, and enhance the stability of high-speed printing for products such as sterilization pouches, paper jewelry boxes, and adult baby diapers. The doctor blade achieves accurate metering through a combination of mechanical contact and pressure control.

Ink Transfer Diagram of Flexo Presses

Ink Supply

Ink is delivered to the surface of the anilox roller in the flexo printing machinery through an ink pump, filling the cells of the roller.

Doctoring

The doctor blade in the flexographic machine maintains close contact with the surface of the anilox roller at a specific angle (typically 30°–60°), removing excess ink from the roller surface with constant and appropriate pressure.

Metering and Retention

According to the required ink volume, the ink within the anilox cells is retained, ensuring stable and uniform ink transfer.

Transfer Printing

The anilox roller first transfers the ink to the printing plate, which then transfers it onto substrates such as paper, film, nonwoven fabric, and self-adhesive materials.

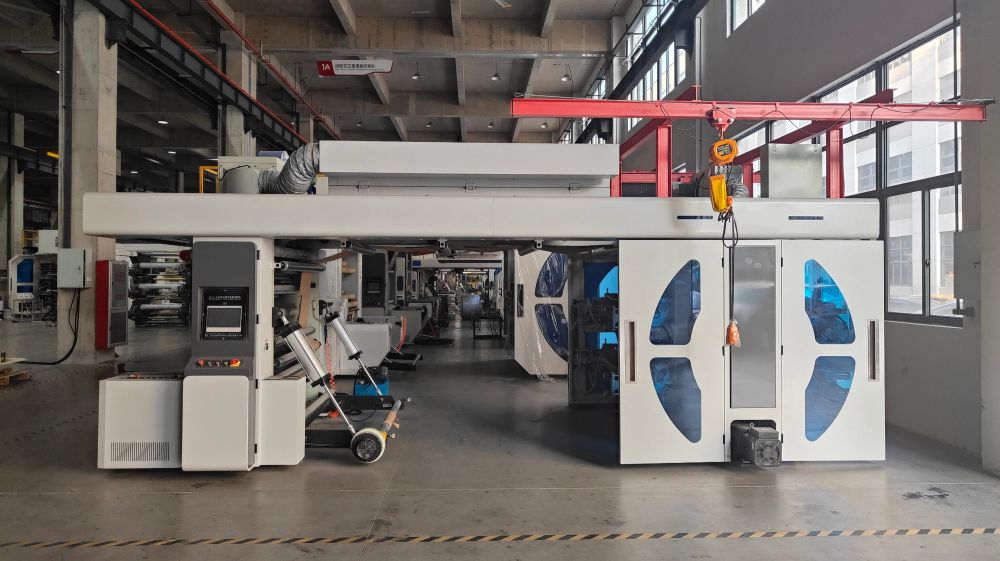

Flexographic Press for Non-Woven Fabric Gown

Causes of Doctor Blade Wear

The most common causes of doctor blade wear include friction between the blade and the plate or anilox roller, abrasive wear, and ink separation failure.

Friction Between the Blade & the Plate or Anilox Roller

During flexo printing of non-woven fabric baby bibs, medicine pill labels, and breathable PE film diapers, microscopic particles—often invisible to the naked eye—are generated at the contact surface between the doctor blade and the roller. These easily overlooked particles create shear forces, and over time, their accumulation leads to gradual wear of the doctor blade.

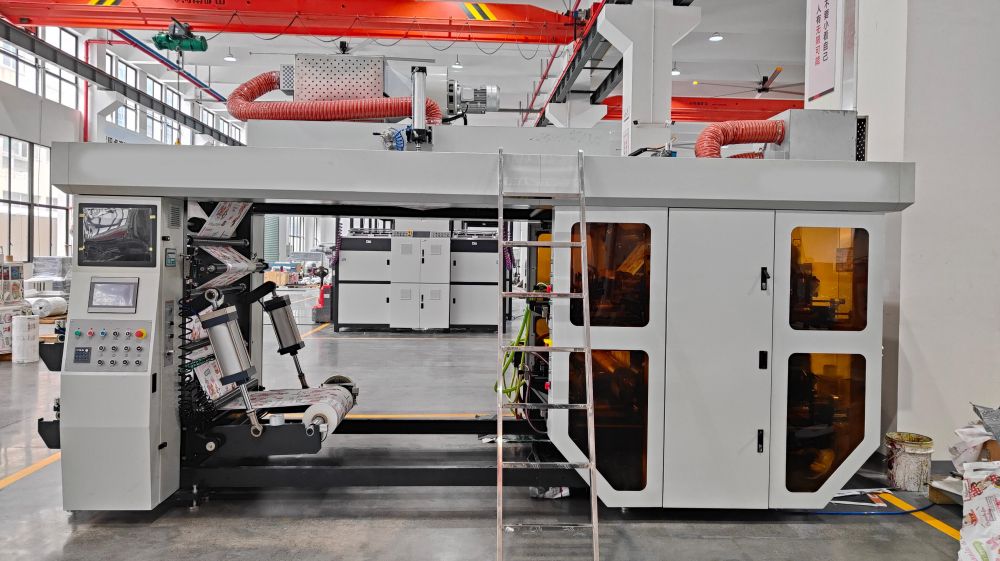

Flexography Machine for Rice Packaging Bags

Abrasive Wear

Whether in flexographic printing of pet food paper bags, PP valve cement bags, or products such as transparent logo stickers and thank you sticker labels, any hard particles present between the doctor blade and the roller will cause wear due to friction.

Certain inks, especially inorganic inks, have higher abrasiveness than others. Common sources of these abrasive particles include ink pigments, insoluble particles, solvent impurities, dried ink residues, rust caused by solubility issues, contaminants on the surface of paper or film, adhesive coating particles, fragments from worn doctor blades, and fine chrome particles flaking from the roller surface.

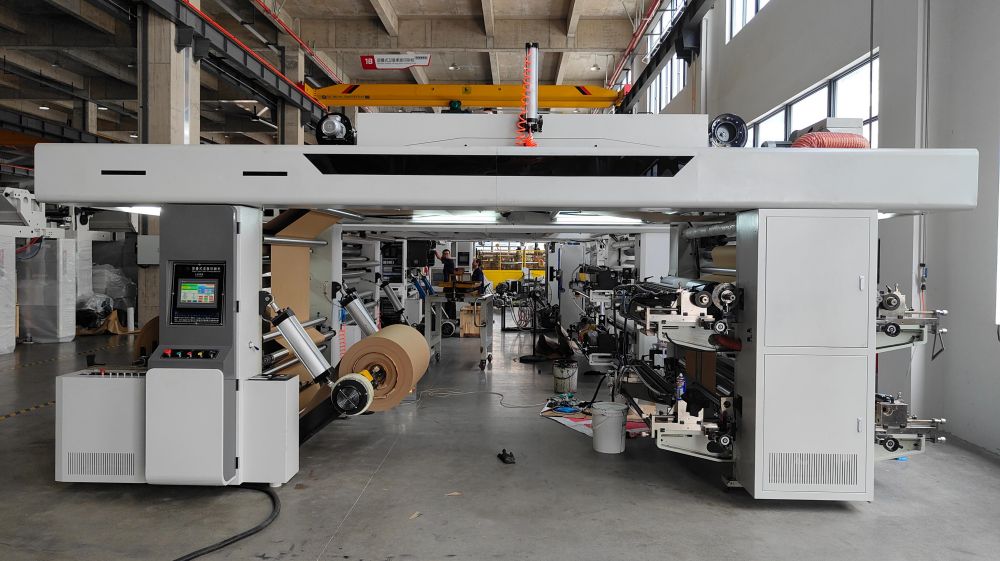

Paper Bag Printing Machine for Gift Paper Bags

Ink Separation Failure

During flexo printing of products such as chocolate bar paper boxes, cans sticker labels, and wine labels, if the ink fails to separate properly, it increases the friction between the doctor blade and the roller, thereby accelerating the wear of the doctor blade.

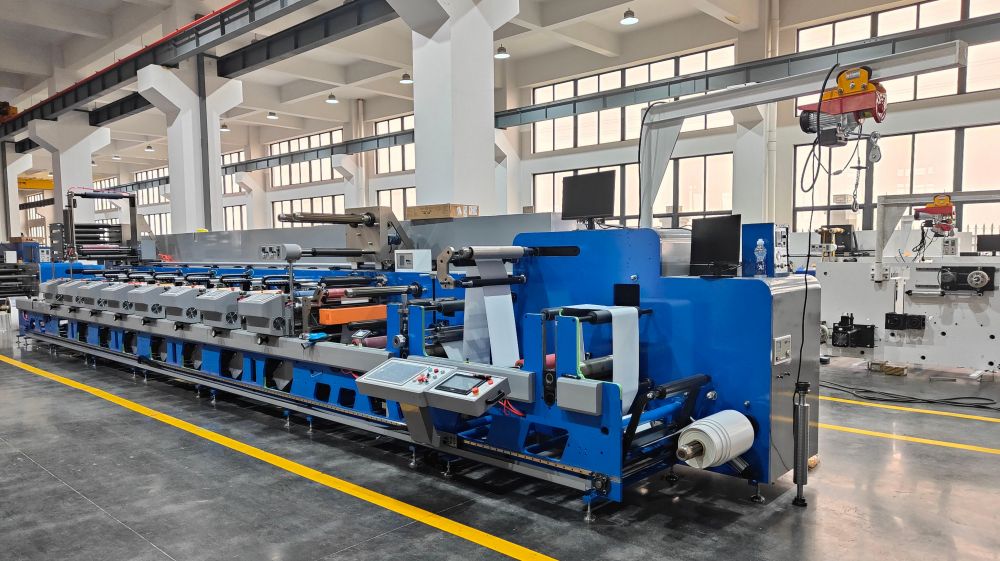

Label Printing Machine for Perfume Bottle Labels

How to Reduce Doctor Blade Wear

Doctor blade wear can be reduced by proper installation, selecting suitable inks, and maintaining cleanliness.

Proper Installation of the Doctor Blade

1.Install the doctor blade at an angle of 55°–65°, ensuring the blade edge faces upward.

2.Properly control the position of the doctor blade and the distance between the plate roller and the ink roller.

3.Allow the doctor blade to reciprocate 10–12 mm along the plate cylinder direction. This not only reduces wear but also helps eliminate burrs formed on the printing roller.

4.During installation and removal, secure the center first, then fix both sides to ensure fast, accurate alignment and parallelism.

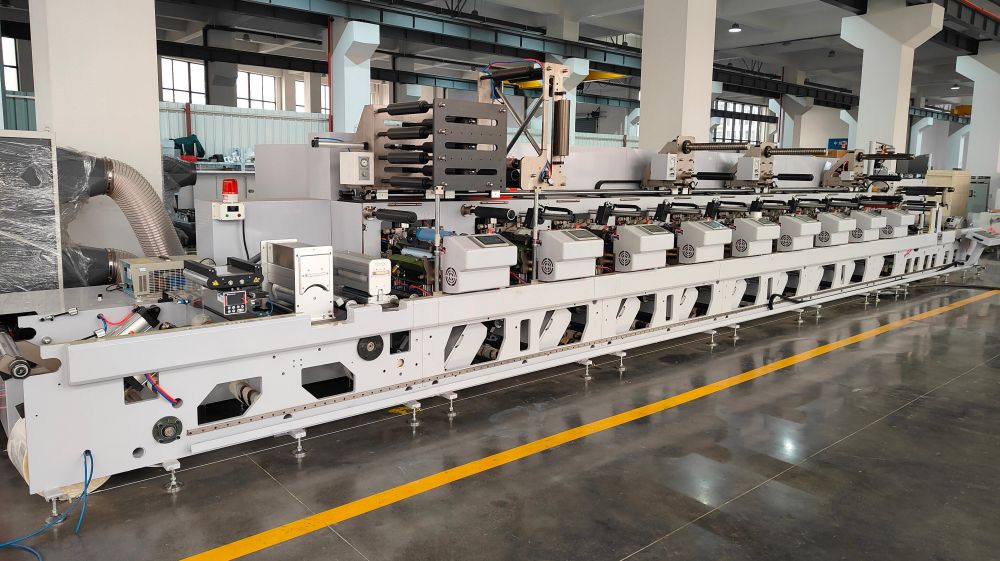

Flexo Printer for Protein Powder Stickers

Tips for Ink Selection

Ink with a pH level that is too high or too low may cause corrosive damage to the doctor blade. Highly abrasive inks can also accelerate wear on the roller. Therefore, low-abrasion inks with balanced pH values and minimal chemical content are the preferred choice for flexo printing machines when producing cupcake paper cups, candy film wrappers, and water bottle labels.

Maintaining Cleanliness

Installing filtration systems on flexographic printing machines can effectively remove impurities and large particles from the ink, ensuring its purity.

Regularly wiping the doctor blade and removing adhered residues helps maintain proper operation and optimal flexo printing performance. These measures can significantly improve the efficiency and quality of flexo printing for products such as hamburger paper boxes, charcoal flour powder grain bags, and non-woven shopping bags.

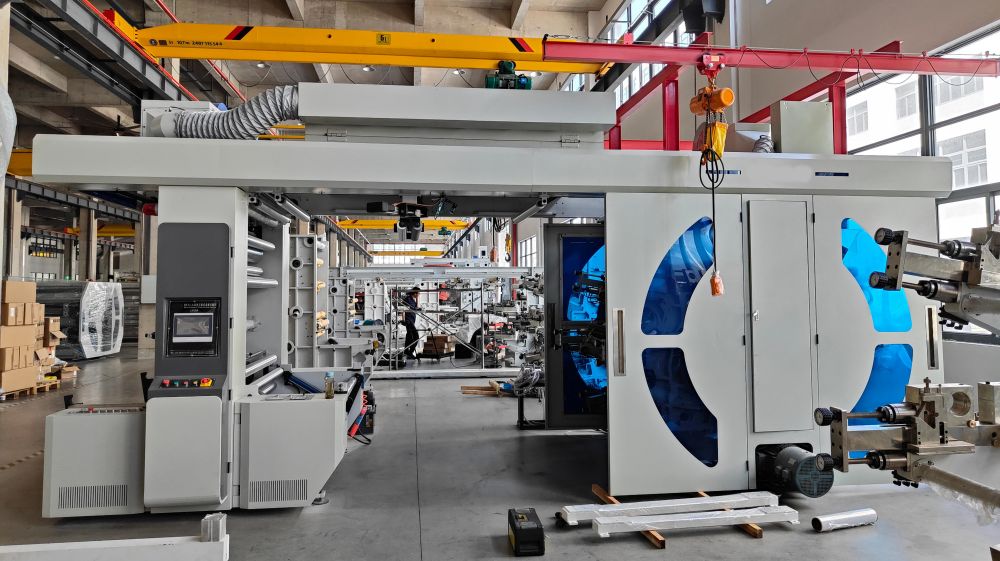

Flexo Press for Salad paper Bowls

The doctor blade is a core component of the flexographic machine, holding an indispensable position. Choosing the correct installation method, selecting suitable ink, ensuring ink purity, and regularly cleaning the doctor blade can all significantly reduce its wear. These measures help flexo printing machines achieve high-quality and high-efficiency printing for products such as soya bean milk packaging bags, beverage paper cups, and kitchen non-woven dish clothes.
