The anilox roller is a crucial component in flexo printing machines, primarily responsible for the uniform transfer of ink to the plate roller. It plays a key role in the short ink supply system, which is made up of four essential parts: the ink tank, the rubber roller, the doctor blade, and the anilox roller itself. This roller ensures that the right amount of ink is transferred to the plate roller for consistent printing quality. In this article, we will explore the surface structure, ink hole shapes, line screens, classification, operation methods, maintenance, and more about the anilox roller.

The Anilox Roller of A Flexo Printing Machine

Surface Structure of the Anilox Roller

The surface of the anilox roller features numerous tiny holes, typically uniform in shape and evenly distributed. These holes, known as "ink holes", play a vital role in the printing process by storing, distributing, and transferring ink. The holes are usually etched at a 45° angle to the roller's axis. Between each ink hole is a "net wall" that separates them, and the area of this net wall depends on the shape of the ink holes. These microscopic structures ensure precise control of ink transfer, which is critical for achieving high-quality prints.

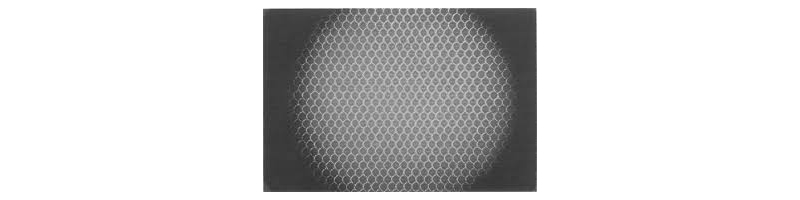

Ink Holes in the Surface of the Anilox Roller

Ink Hole Shapes and Their Impact

Anilox rollers come with several different shapes for the ink holes, each influencing the ink transfer characteristics:

- Quadrangular pyramid

- Quadrangular trapezoid

- Hexagonal trapezoid

- Trapezoidal cross-section oblique line

- Additional channel ink hole

Among these, the hexagonal trapezoidal ink hole is the most popular in engraved anilox rollers due to its large opening. This shape offers superior ink reception and release, making it ideal for high-quality printing where precise ink transfer is essential. The size of the hole opening and its depth directly affect the ink transfer performance—larger openings with shallower depths typically offer better transfer, while smaller openings or deeper holes can reduce performance.

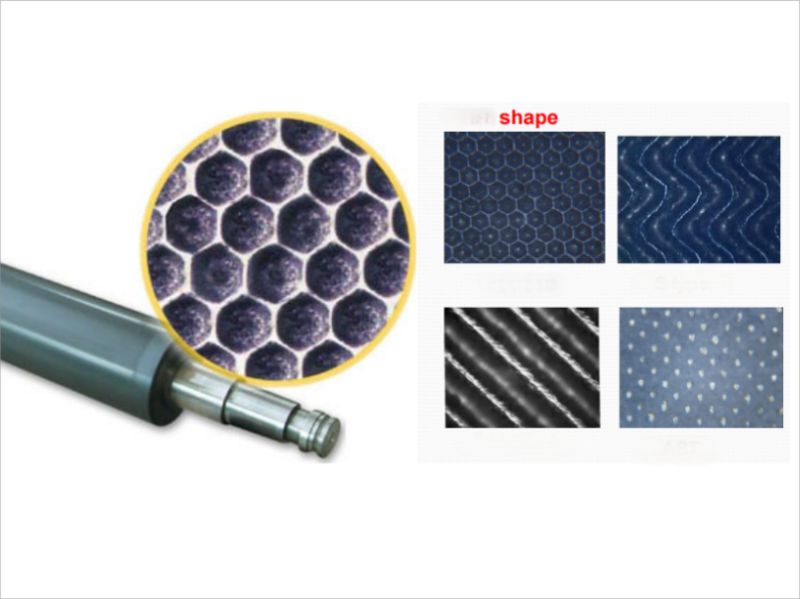

Different Ink Hole Shapes of the Anilox Roller

Line Screen and Ink Transfer

The line screen refers to the number of ink holes per unit length on the surface of the anilox roller. This is a crucial parameter that influences ink transfer. The higher the line screen (measured in lines per inch, or LPI), the smaller the amount of ink transferred, and vice versa. The choice of line screen depends on the type of printing required:

- Low LPI (around 360) is used for printing solid color areas or low-detail images.

- High LPI is suited for fine details, such as small text and intricate images, to prevent dot expansion and preserve fine lines.

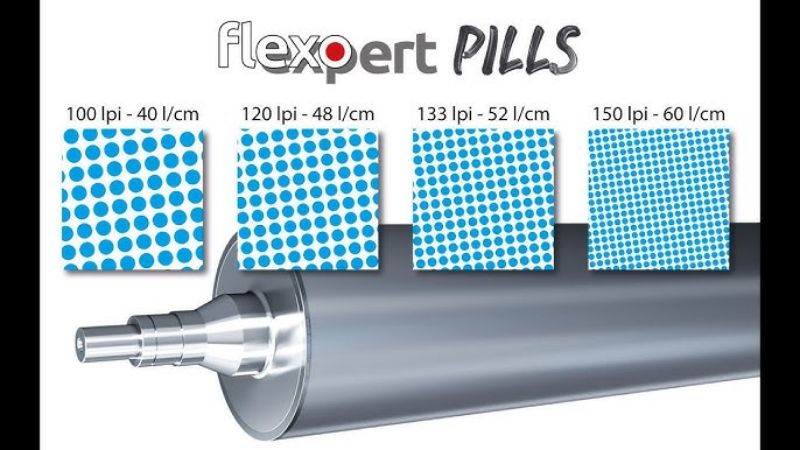

Line Screen Selection of the Anilox Roller

However, a high line screen can make the anilox roller more fragile and reduce its lifespan, as the thinner net walls can weaken and lead to damage. Therefore, it is essential to balance the line screen with the specific printing requirements.

Classification of Anilox Rollers

Anilox rollers are primarily classified based on the materials applied to their surfaces. The two most common types are:

- Chrome-plated anilox rollers: These are processed with a chrome coating that enhances durability.

- Ceramic anilox rollers: These are coated with a high-hardness ceramic layer (using plasma spraying techniques), offering superior wear resistance and longer lifespan.

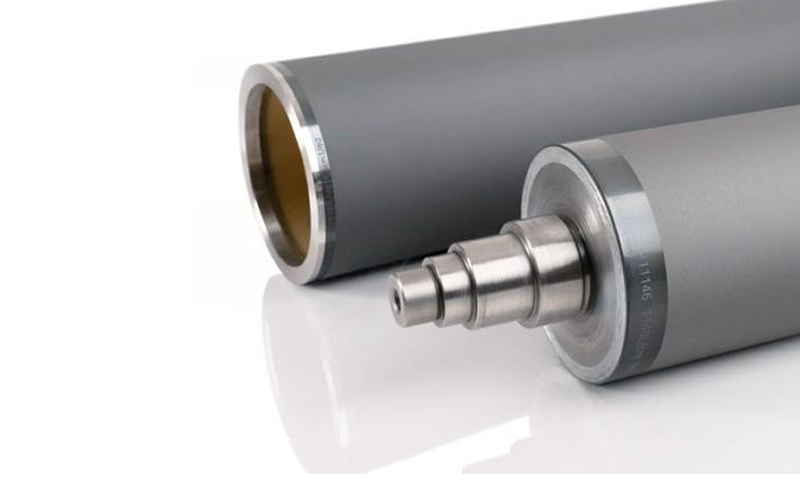

Ceramic Anilox Rollers

Anilox rollers are also categorized by their engraving parameters, including lines per inch (LPI) and the mesh volume (BCM, or billions of cubic microns). The BCM directly impacts the ink transfer rate. For instance, two anilox rollers with the same LPI might have vastly different ink transfer capabilities depending on their BCM.

Operational Considerations

Proper operation of the anilox roller is vital for achieving consistent printing results:

- Angle Between the Anilox Roller and Doctor Blade: Typically, this angle ranges from 25° to 30°. If the angle is too steep, the doctor blade may bounce, causing uneven ink distribution.

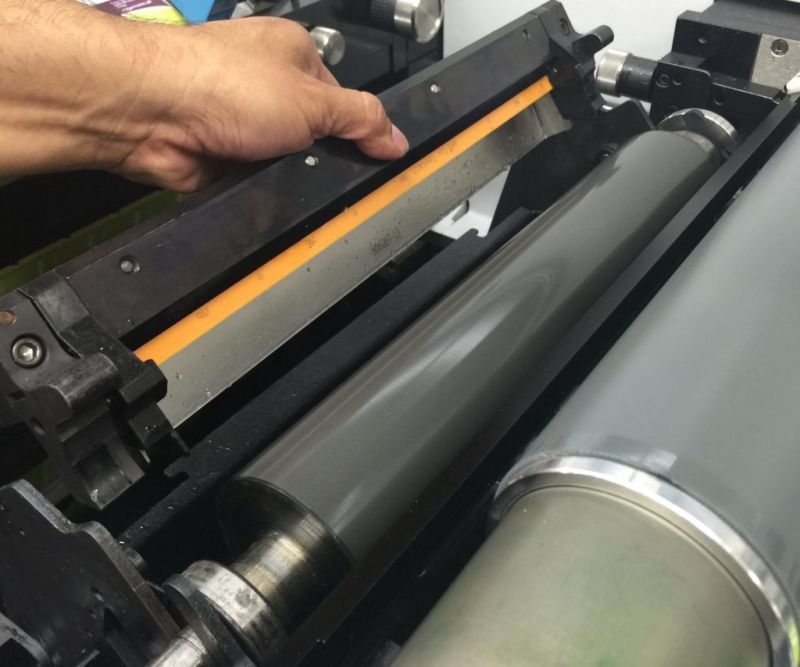

Doctor Blade of the Flexo Printing Machine

- Sharpness of the Doctor Blade: A sharp blade is essential to remove excess ink from the anilox roller while preventing damage to the roller itself. It is crucial to ensure the blade is sharp enough to scrape the ink without causing wear to the roller surface.

- Flatness of the Doctor Blade: Uneven blade surfaces can lead to inconsistent coating thickness. Therefore, the blade should be installed properly and checked for flatness regularly.

- Left and Right Movement of the Doctor Blade: This ensures better utilization of the anilox roller, minimizing wear on both the doctor blade and the roller surface.

Maintenance of Anilox Rollers

Given that anilox rollers are central to the performance of a flexo printing machine, maintaining them is crucial for prolonged use and consistent print quality.

- Wear and Tear: Over time, the doctor blade causes wear to the surface of the anilox roller, gradually reducing the ink transfer performance as the holes become shallower and smaller. Coatings such as chrome or ceramic are vital for enhancing the roller’s wear resistance.

- Cleaning: Regular cleaning is crucial to prevent dried ink from clogging the anilox roller’s micro-holes. Methods such as using copper or steel brushes for metal and ceramic rollers, ultrasonic cleaning, and low-pressure jet cleaning with special solutions are commonly employed.

Deep Cleaning for Anilox Rolls

- Storage and Handling: Proper storage is essential to prevent damage to the anilox roller. It should be stored in a dry, clean environment, away from dust, and protected from physical shocks. Additionally, the roller should be mounted securely when not in use to prevent unnecessary strain on the surface.

Usage and Operational Maintenance

To maintain the quality of printing and extend the lifespan of the anilox roller, operators should follow a routine of:

- Routine Cleaning: After each use, thoroughly clean the roller to prevent ink build-up.

- Inspection: Periodically inspect the surface of the roller under magnification to identify any signs of wear, clogging, or damage.

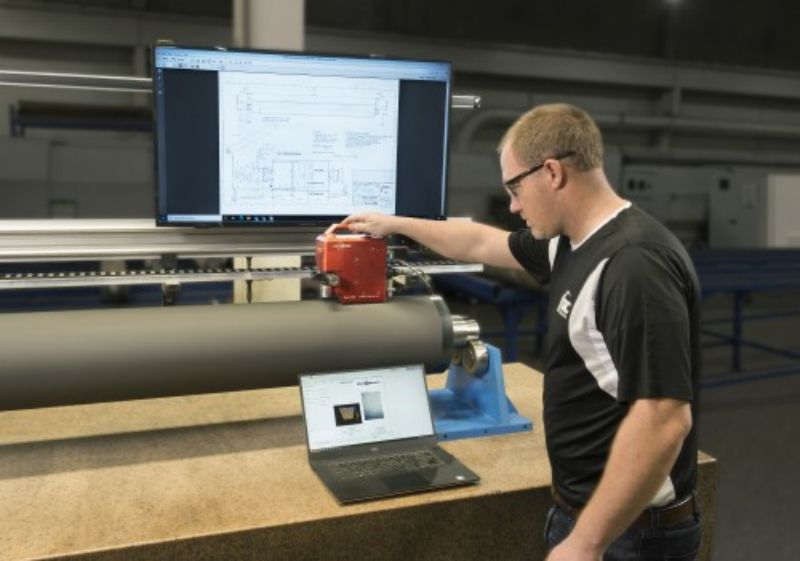

Maintenance for The Anilox Roller

- Correct Doctor Blade Usage: The doctor blade should be set to the proper pressure, and any wear should be monitored to prevent it from damaging the anilox roller.

- Timely Replacement: If the anilox roller’s mesh holes are significantly worn or clogged, it should be replaced to ensure optimal ink transfer and printing quality.

Precautions and Best Practices

Since the anilox roller is a sensitive component, it is essential to handle it with care:

- Avoid physical impact during installation or removal, as this can damage the precision-engraved holes.

- Ensure proper sealing and filtration in the ink supply system to prevent contaminants from damaging the roller.

- After the printing process, always ensure that the roller is separated from any pressure to prevent deformation or uneven ink transfer.

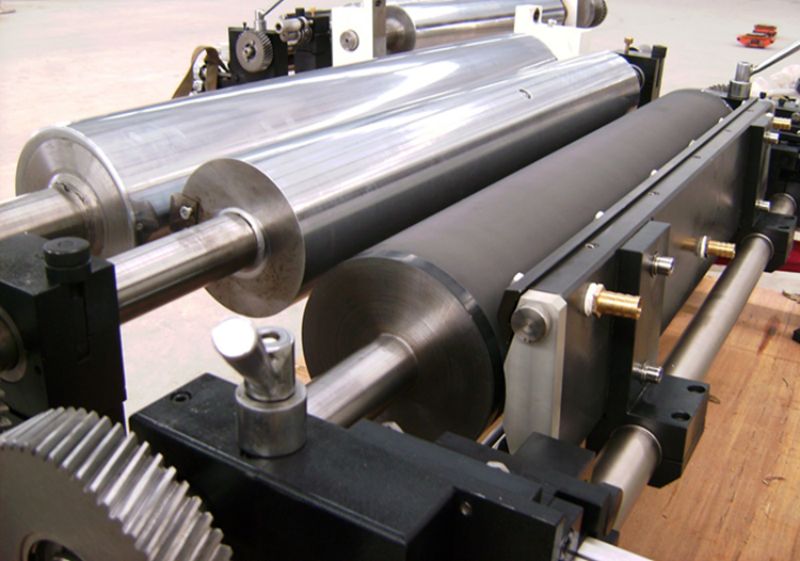

Anilox Roller in A Printing Unit

The anilox roller is an indispensable component in the flexo printing process, playing a pivotal role in ensuring precise and even ink transfer to the plate roller. Proper understanding of its surface structure, ink hole shapes, line screen, and maintenance practices can greatly enhance printing quality and machine longevity. By adhering to correct operational methods, cleaning routines, and storage practices, operators can ensure that their anilox rollers continue to deliver excellent printing results over time.
