In recent years, people have become increasingly aware of the importance of environmental protection. Flexographic printing machines have emerged in response to the demands of the times and are widely used for printing on various types of packaging, particularly paper cups such as coffee paper cups, milk tea paper cups, and juice paper cups. Flexographic printing machines use an anilox roller to evenly distribute ink across the graphic areas of the printing plate. Under the pressure of the printing roller, the ink layer from the graphic areas is transferred to the surface of the substrate, creating clear graphics. This article will discuss the advantages of flexo printing in paper cup printing from four aspects: flexo ink, printing plates, printing efficiency, and inline processing.

Flexographic Press for Coke Paper Cup

Flexo Ink

The ink used in flexographic printing machinery is mainly environmentally friendly water-based ink. It has the characteristics of low environmental impact, low residue, and low energy consumption.

Low Environmental Impact

Water-based flexographic inks use water as a solvent carrier and emit virtually no volatile organic compounds into the atmosphere during either the printing or production processes.

Low Residue

Water-based flexographic inks do not contain organic solvents, greatly reducing the amount of toxic substances remaining on the surface of printed products. They are particularly suitable for products with strict hygiene requirements and high safety standards, such as cold beverage paper cups and bubble tea paper cups.

Low Energy Consumption

Flexographic water-based inks have lower viscosity compared to other inks, which makes them less prone to plate blinding and ink build-up. Its curing speed can exceed 500m/min, and it consumes less than one-fifth of the energy required for traditional heat curing, making it ideal for large-scale printing of products such as beer paper cups, wine beverage paper cups, and cola sprite paper cups.

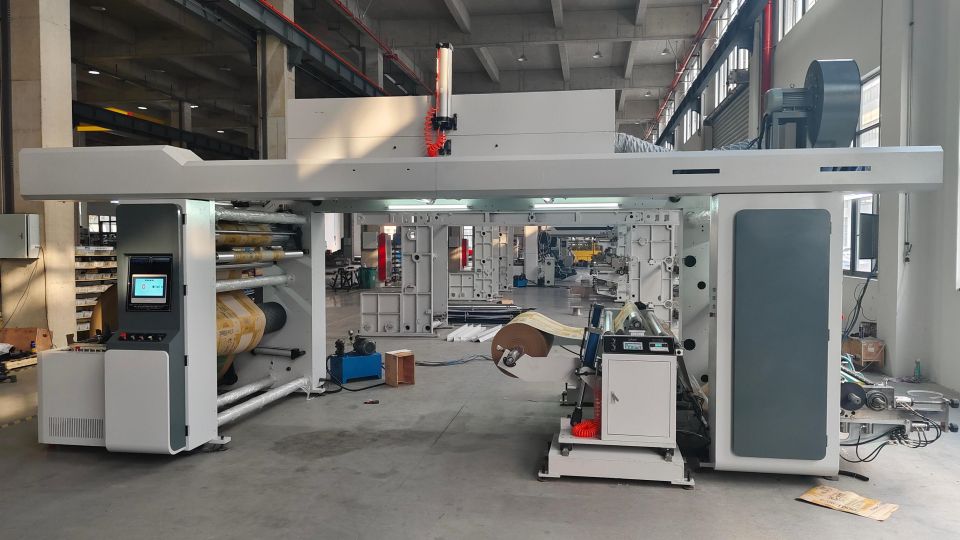

Flexo Printer for Soda Paper Cup

Printing Plates

Products such as latte paper cups, milkshake paper cups, and ice water paper cups have high precision requirements and are generally printed using thin plates.

Thin flexo plates have high hardness, excellent dot reproduction, and finer LPI (lines per inch) reproduction. The 1.70mm-thick thin flexo plate is the most widely used, primarily for printing and varnishing on products such as milk packaging, cardboard boxes, plastic films, labels, and paper bags. High-quality thin flexo plates can achieve a resolution of 100–175 lines per inch, with multi-colour registration accuracy within 0.02mm. They offer excellent reproduction of text and graphics, rich tonal gradations, vibrant colours, and superior visual appeal.

At the same time, flexographic printing plates have a short production cycle, are easy to transport, and have a high print durability. Depending on the product type, their print durability can reach hundreds of thousands to millions of prints.

Flexo Printing Press for Ginger Tea Paper Cup

Printing Efficiency

Flexographic printers are not only highly automated but also highly adaptable to different substrates, thereby greatly improving printing efficiency.

High Automation

The flexography machine utilizes an anilox roller inking system. Compared to offset and letterpress presses, this eliminates the complex inking mechanism and provides stable ink delivery, eliminating ink-water balance and emulsification issues, and requiring minimal manual intervention. This significantly simplifies the operation and maintenance of the flexographic printing press, improving the printing speed and efficiency of products such as yogurt paper cups, ice cream paper cups, and lemonade paper cups. Furthermore, it offers faster ink control and responsiveness, stable quality, excellent color reproduction, no ghosting, and low scrap rates.

The anilox rollers and plate rollers all adopt the air-shaft sleeve tensioning system, which has a simple structure, can achieve fast and accurate conversion, high work efficiency, save manpower, material and financial resources, reduce waste, lower production costs and environmental protection costs, and improve economic benefits.

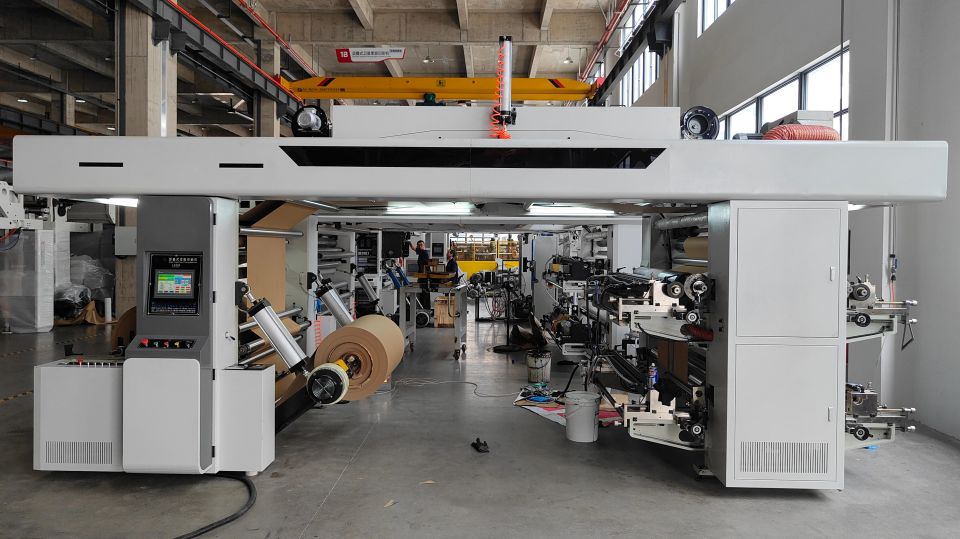

Flexography Printing Machine for Soy Milk Paper Cup

High Adaptability

Flexographic machines are suitable for printing a wide range of media. They can print not only various types of paper cups, paper bags, silicone paper, etc., but also aluminum foil, plastic film, self-adhesive paper, self-adhesive film, non-woven fabrics, etc.

Paper Cup Printer for Cappuccino Paper Cup

Inline Processing

Flexo printing machines are more suitable for combination printing and can perform post-printing processes such as double-sided printing, hot stamping, varnishing, laminating, die-cutting, waste removal, and slitting. It has strong inline processing capabilities, supporting roll-to-roll and roll-to-sheet operations. Functions can be added as needed, offering high flexibility and short production cycles. When connected to a die-cutting unit, the flexo printing press can directly die-cut paper cup blanks from printed paper cup substrates such as mousse paper cups, cake paper cups, and pudding paper cups, providing great convenience.

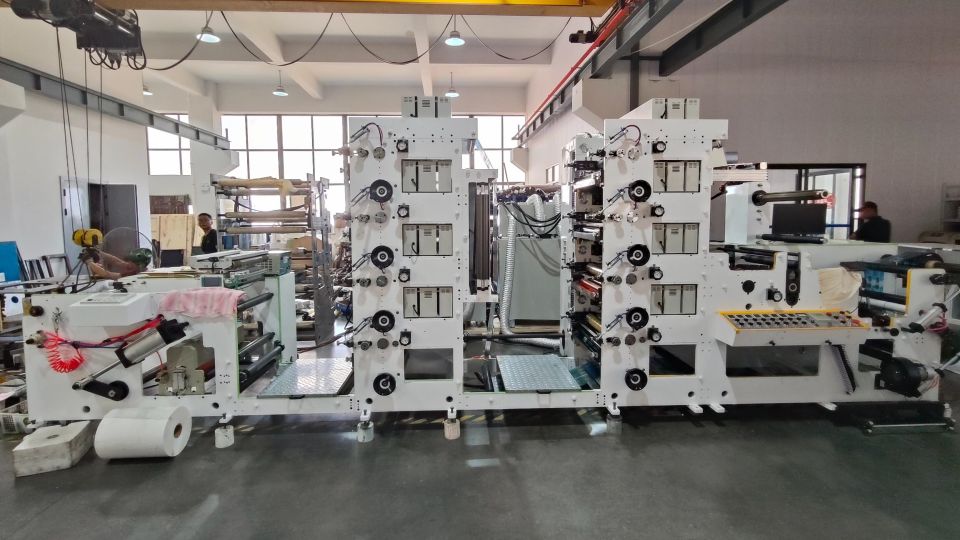

Flexo Printer for Black Tea Paper Cup

The advantages of the paper cup printing machine in terms of ink, printing plate, printing efficiency, and in-line processing make it stand out among many other types of printing presses. While achieving green printing, it also greatly improves the printing quality, printing speed, and printing efficiency of products such as jelly paper cups, fruit paper cups, and popcorn paper cups, reducing manual intervention and labor costs, making it a popular choice among various paper cup manufacturers.
