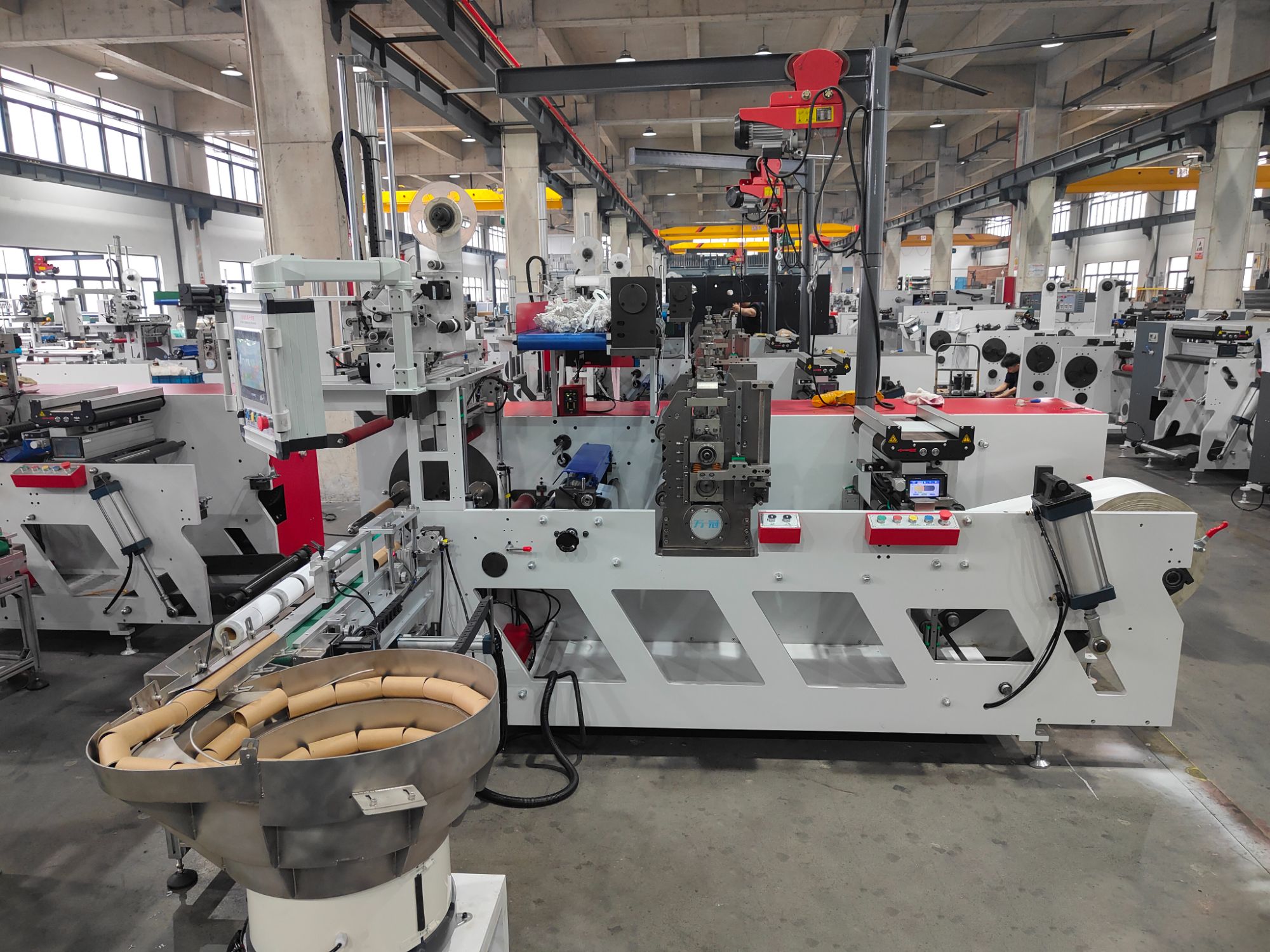

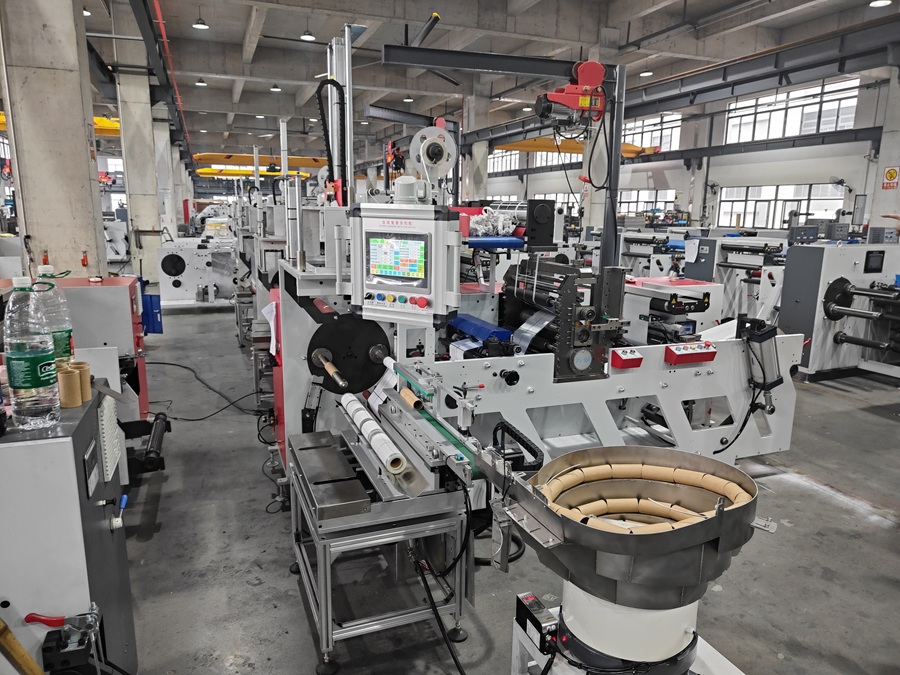

Fully Automatic Rotary Die-Cutting & Slitting & Rewinding Machine for Labels Stickers Packaging Films and Paper Rolls
Our fully automatic rotary die-cutting slitting and rewinding machine runs at a maximum speed of 220 m/min and is driven by an Inovance control system with seven servo motors and a motion controller. It supports rotary die cutting, slitting, automatic material loading, automatic paper-core feeding, automatic cross-cutting, automatic labeling, automatic rewinding, glue-free paper cores, crease-free winding, counting, and length-metering functions.
- Description
- Feature
- Parameters
- Application
- Details Display
- Q&A
Description
With non-stop rewinding unit, fully automatic die cutting and slitting machine is ideal for producing trademark labels, gold foil shampoo stickers, water bottle labels, and wine packaging stickers. The paper cores require no glue and no folding, and waste removal is handled through ultrasonic detection and servo control, significantly boosting the production efficiency of mineral-water bottle labels and thermal tag sticker rolls.
Feature
- Auto Labeling: consistent and precise label placement and angle can improve the visual experience for users of pressure-sensitive labels, spice bottles, food jars, cans, stickers, etc.
- Automated Waste Disposal: the automated waste disposal system reduces manual intervention, improving production efficiency for products such as high grade matte finish labels while lowering labor costs.
- Multi-Process Integration: integrates die-cutting, slitting, waste removal, labeling, and rewinding processes, completing the entire process in one go. Non-stop rewinding enables mass production of products such as transparent logo stickers.
- High-Speed Production:equipped with multi-servo synchronous control, the maximum speed can reach 220 meters per minute, maintaining stable high-speed die-cutting and slitting of shipping stickers and thermal labels.
- Intelligent Tension Control: fully automatic tension feedback ensures stable transfer of self-adhesive and paper materials such as brown paper stickers.
Parameters
| Max. Speed | 220 m/min 丨 180m/min |
Max. Feeding Width | 350 mm / 450 mm |
Max. Unwinding Diameter | 800 mm |
Max. Rewinding Diameter | 250 mm |
Position Accuracy | ±0.10mm |
Voltage | 380v, 3phase |
Total Power | 9kw / 11kw |
Weight | 2500 kg / 3000 kg |
Dimension | 2690*3100*2310mm / 3140*3355*2460mm |
Application
Adhesive Sticker
Magnetic Sticker
Shipping Label
Soft Paper
Sticker
Thermal Label Roll
Details Display
|  |

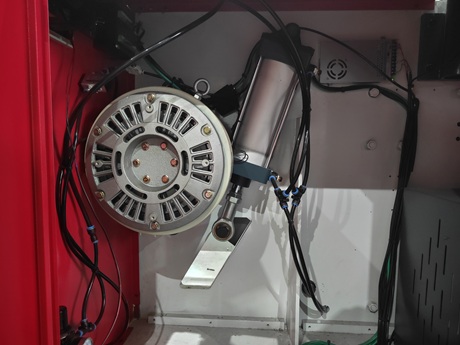

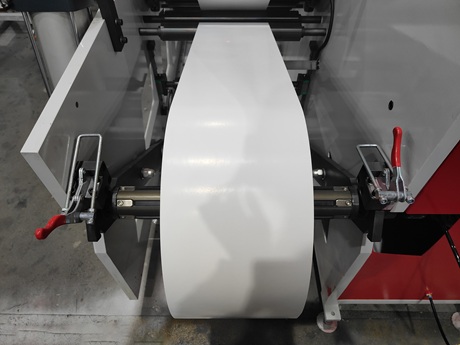

| Unwinding Unit of Fully Automatic Rotary Die-Cut Slit Rewind Machine for Trademark Label | |
 |  |

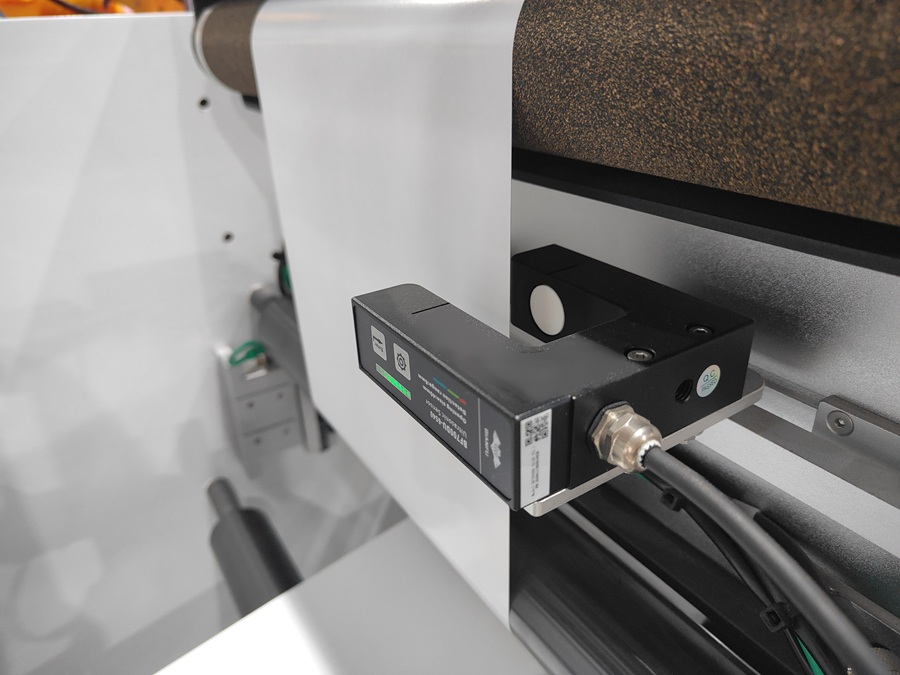

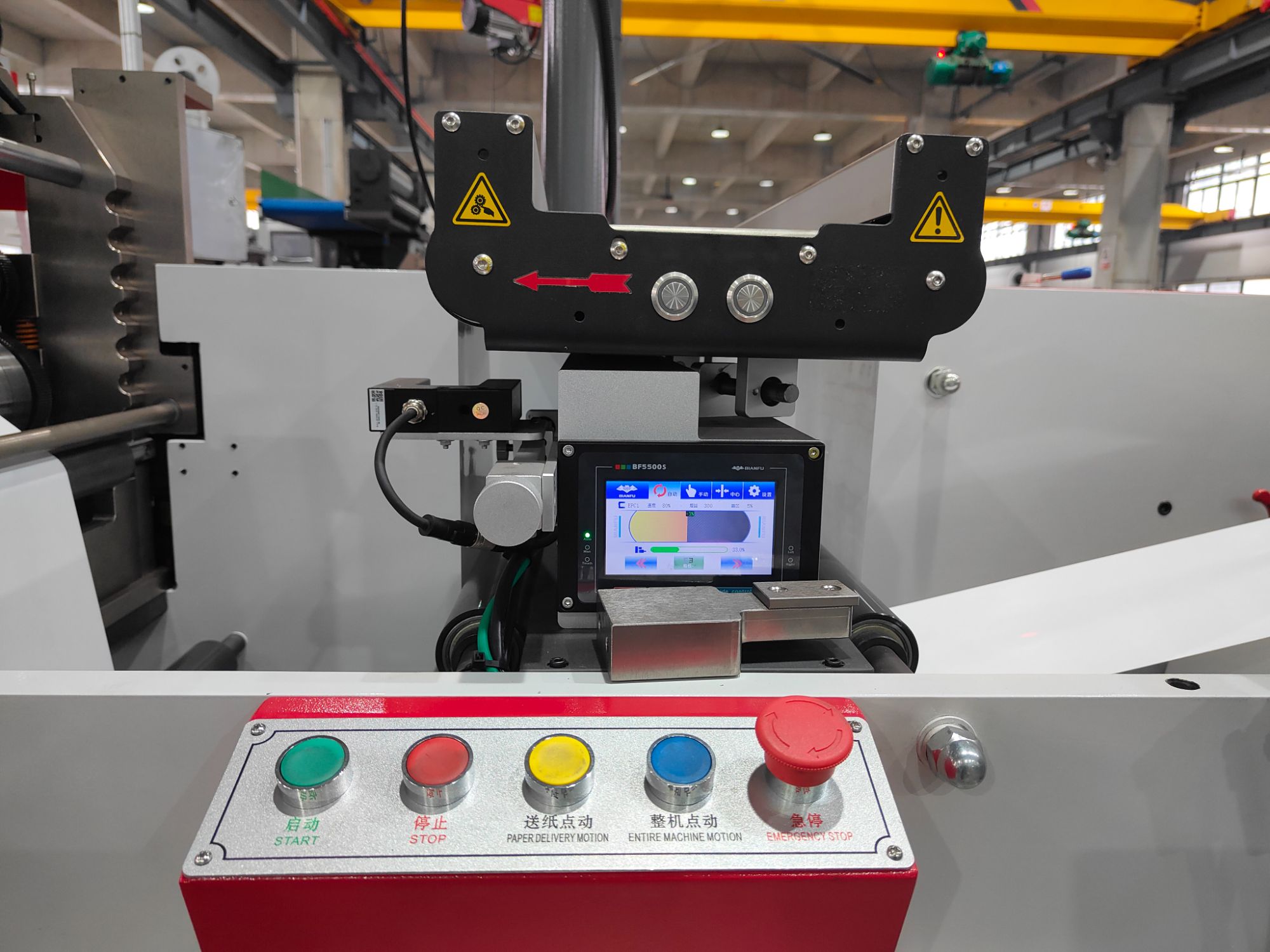

| Auto Web Guide System of Fully Automatic Rotary Die-Cut Slit Rewind Machine for Brown Paper Sticker | |
 |  |

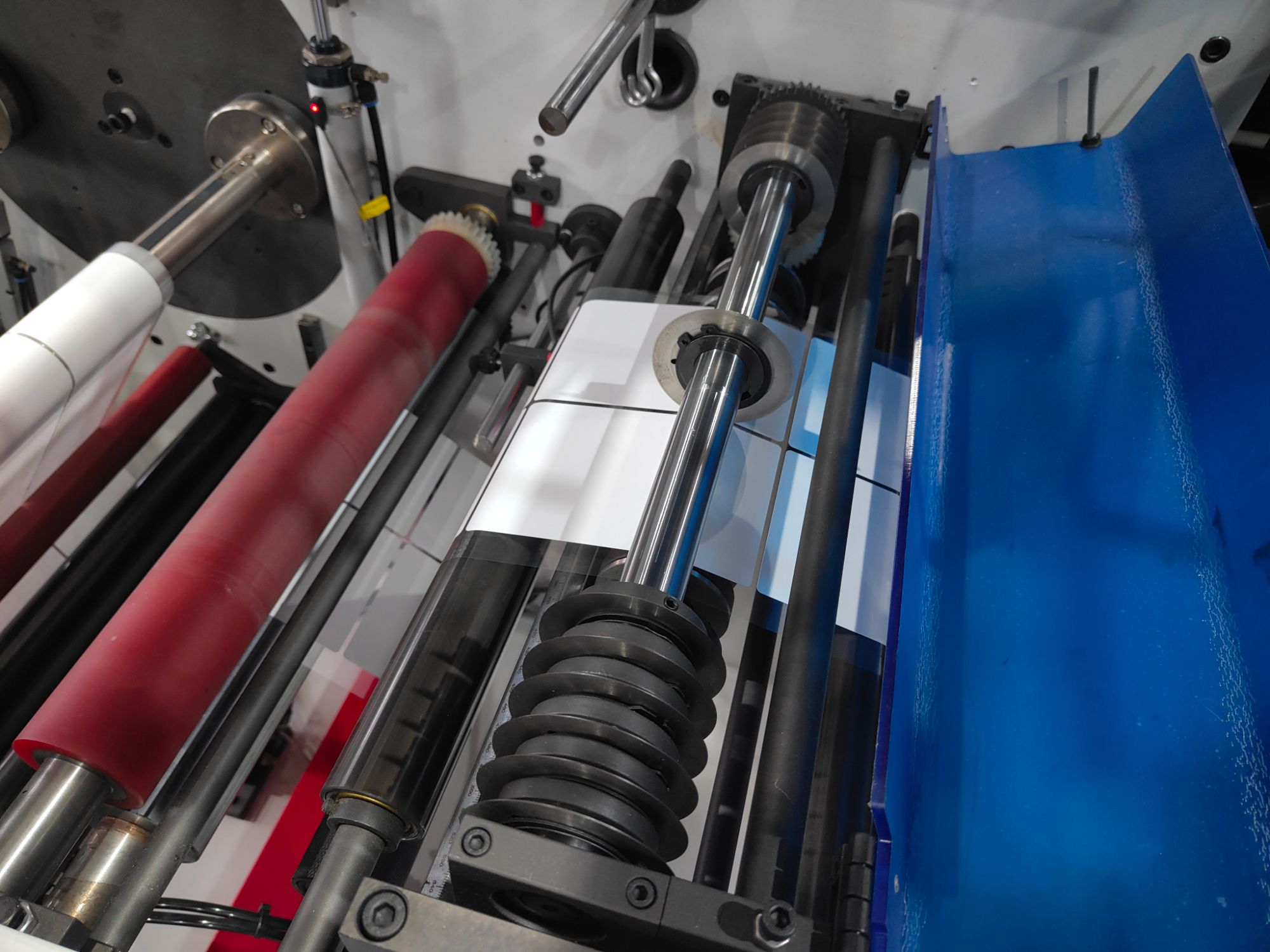

| Slitting Unit of Fully Automatic Rotary Die-Cut Slit Rewind Machine for Wine Label | |
 |  |

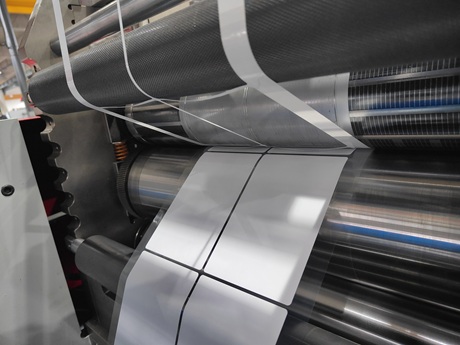

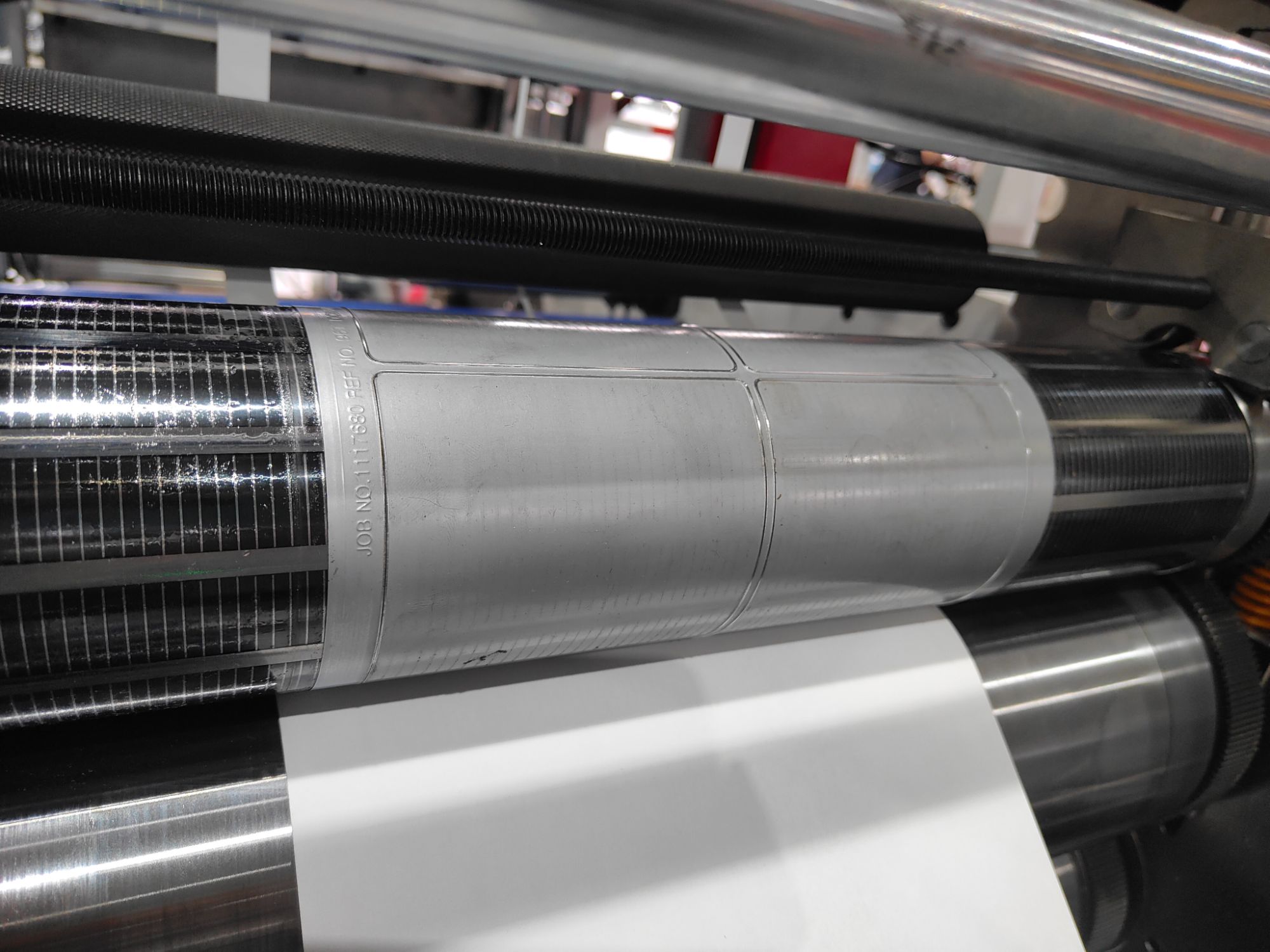

| Die-Cutting Unit of Fully Automatic Rotary Die-Cut Slit Rewind Machine for QR Code Label | |
 |  |

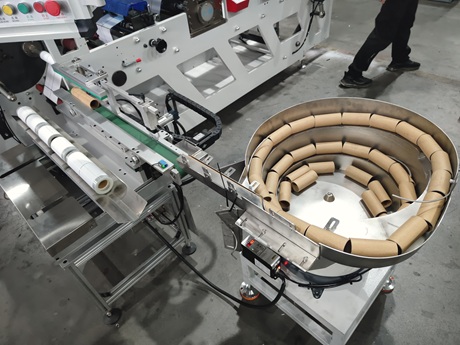

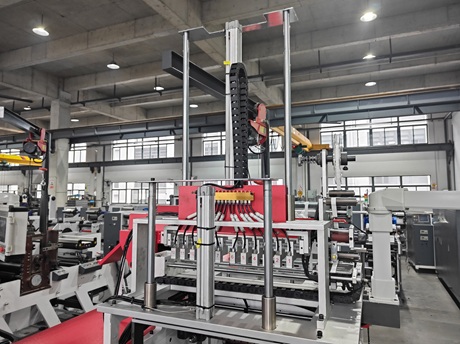

| Auto Core Loader & Label System of Fully Automatic Rotary Die-Cut Slit Rewind Machine for Water Bottle Label | |
 |  |

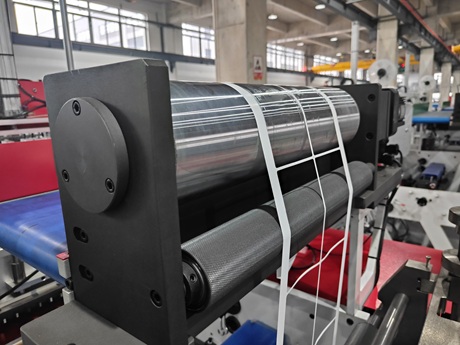

| Waste Stripping Section of Fully Automatic Rotary Die-Cut Slit Rewind Machine for Gold Foil Sticker | |
 |  |

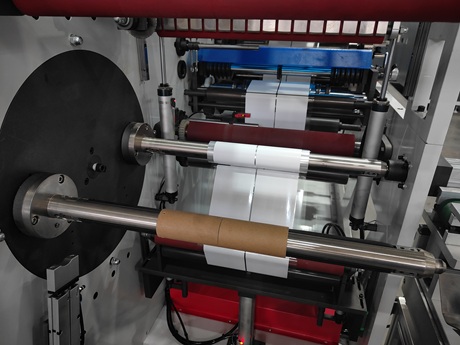

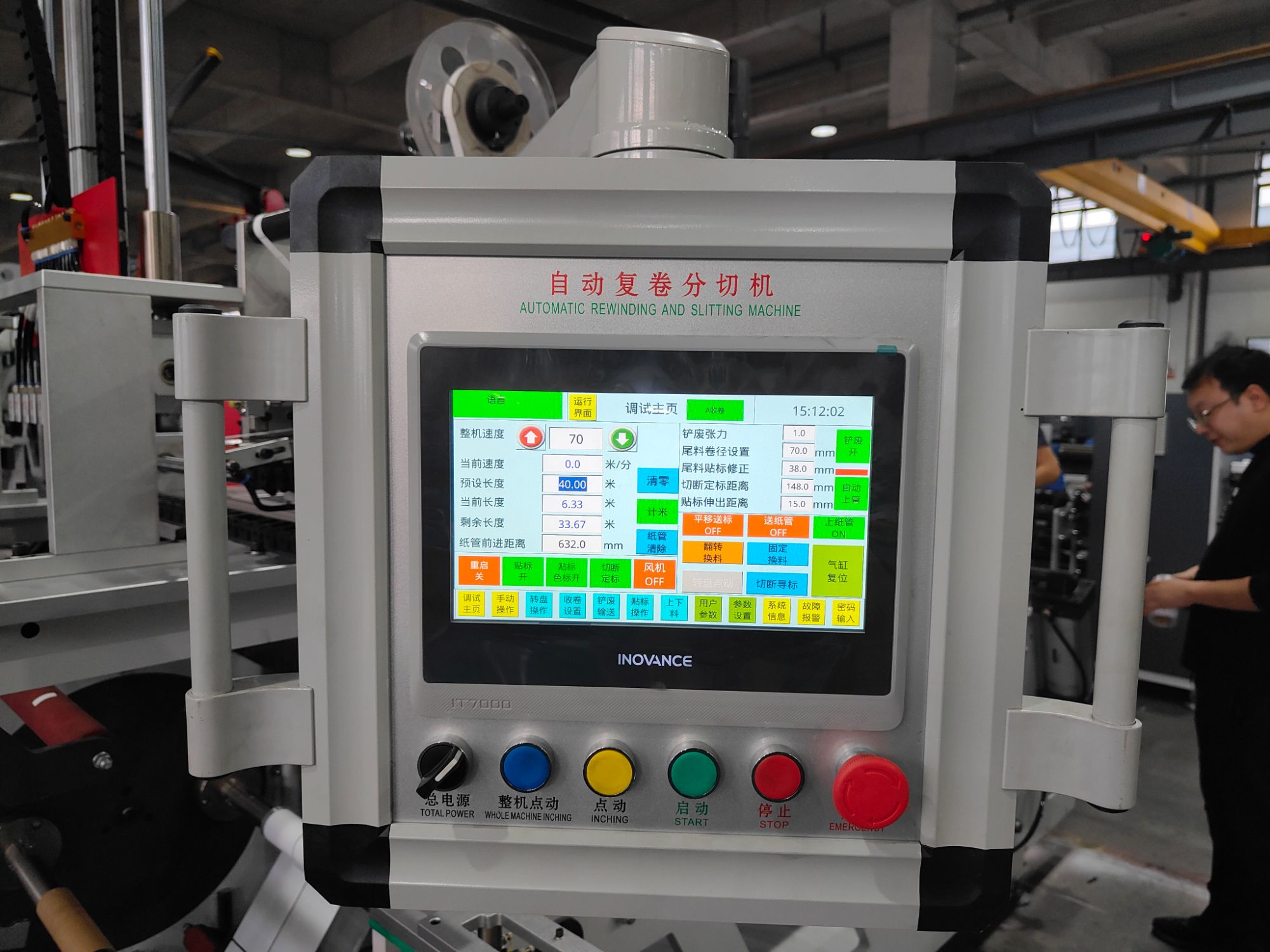

| Rewind Unit & Control Panel of Fully Automatic Rotary Die-Cut Slit Rewind Machine for Cans Sticker Label | |
Q&A
1. What is a fully automatic rotary die-cutting & slitting & rewinding machine?
It is an integrated rotary die cutting and slitting machine designed for label converting, combining die-cutting, slitting, rewinding, and waste-matrix removal into a single roll-to-roll finishing system.
- 2. What industries commonly use this rotary die-cutting and slitting solution?
Widely used in label production, flexible packaging, barcode labels, logistics labels, food & beverage packaging, and industrial roll-to-roll converting. 3. How does the special design improve productivity?
The structure allows die-cutting and slitting to run simultaneously, reducing setup time and significantly increasing label converting efficiency
- 4. What materials can the machine process?
Compatible with self-adhesive labels, paper labels, thermal paper, and other flexible roll materials used in high-speed rotary die cutting. 5. What is the typical running speed of this machine?
Depending on configuration, it can reach 220 m/min, making it ideal for high-volume roll-to-roll label finishing and high-speed slitting applications.6. Does the system support precise registration for high-accuracy die-cutting?
Yes. The machine features servo-driven registration control, ensuring ±0.1 mm accuracy for demanding rotary die-cutting and label finishing jobs.
7. What automated functions are available?
It includes automatic tension controller, auto web guide system, independent die-cutting seat, auto labeling system, waste rewind by ultrasonic and servo motor, touchscreen job setup and so on.8. Can the machine handle multiple slitting widths?
Yes. The adjustable slitting knife system supports variable widths for diverse label slitting and roll converting requirements.
9. What advantages does rotary die cutting offer over flatbed die cutting?
Rotary die cutting delivers faster speeds, continuous production, long lifespan tooling, and more consistent quality—ideal for large-volume label converting operations.10. What typical products can be produced on this machine?
The system manufactures pressure-sensitive labels, barcode stickers, logistics labels, cosmetic labels, food labels, and other roll-to-roll printed label products.
