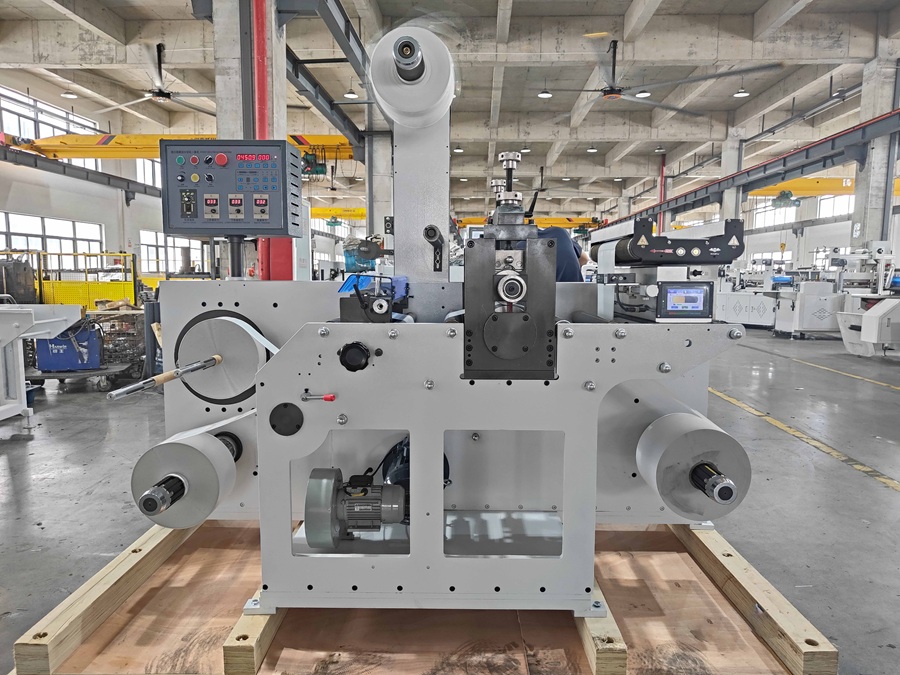

Rotary Die Cutting and Slitting Machine for Shipping Label
The rotary die cutting and slitting machine employs a high-speed rotating blade roller structure to achieve continuous, precise, and low-error die-cutting and slitting processes, making it particularly suitable for processing roll materials such as labels, films, paper, and aluminum foil. The equipment features a stable tension control system and intelligent deviation correction technology, ensuring neat edges and consistent dimensions on finished products. Its modular design facilitates blade replacement and rapid process switching, making it suitable for high-volume production and multi-specification orders of roll Labels, pressure-sensitive labels, shipping labels, logistics labels, and cosmetics labels, thereby improving efficiency and capacity in the packaging, labeling, and printing industries.
- Description
- Feature
- Parameters
- Application
- Details Display
- Q&A
Description

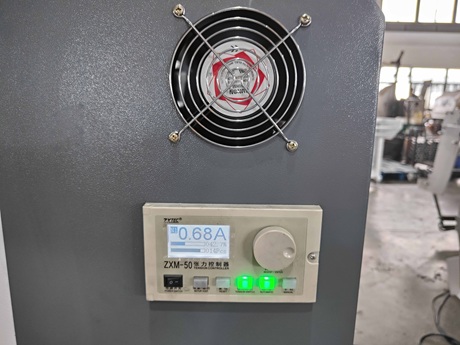

The rotary die-cutting and slitting machine adds a rotary die-cutting station to a slitting machine. This machine is suitable for die-cutting and slitting blank self-adhesive labels, completing the slitting and rewinding process in one operation. It features automatic meter counting, automatic stop when setting length and quantity, automatic air inflation, magnetic powder tension control, a dual rewind shaft rotation and repositioning device, and photoelectric automatic deviation correction control for unwinding. It boasts a compact structure, high speed, high efficiency, accurate slitting, simple operation, and stable running.
Feature
- High-hardness and wear-resistant die-cutting rollers are suitable for long-term, high-speed operation and mass production of products such as custom labels and QR code labels.
- Supports precision die-cutting and slitting of multi-layer composite materials and coated materials.
- Equipped with a precision tension control system, ensuring smooth roll feeding, suitable for the production of various products such as food packaging labels, beverage labels, and jar labels.
- Utilizes a high-speed roller cutter structure to achieve continuous and stable die-cutting operations for products such as warehouse labels and warning labels.
Stable die-cutting accuracy, reaching ±0.1mm.
Supports various roll materials, such as foil labels, chemical labels, warehouse labels, and paper, PET, BOPP, PVC, and aluminum foil.
Parameters
| Cutting Speed | 120 m/min |
Max.Roll Width | 350 mm / 450 mm |
Max. Unwinding Diameter | 550 mm |
Max. Rewinding Diameter | 550 mm |
Accuracy Rate | ±0.1mm |
Weight | 1000 kg / 1100 kg |
Dimension | 2090*945*1640mm / 2090*1045*1640mm |
Application
Adhesive Sticker
Magnetic Sticker
Shipping Label
Soft Paper
Sticker
Thermal Label Roll
Details Display
|  |

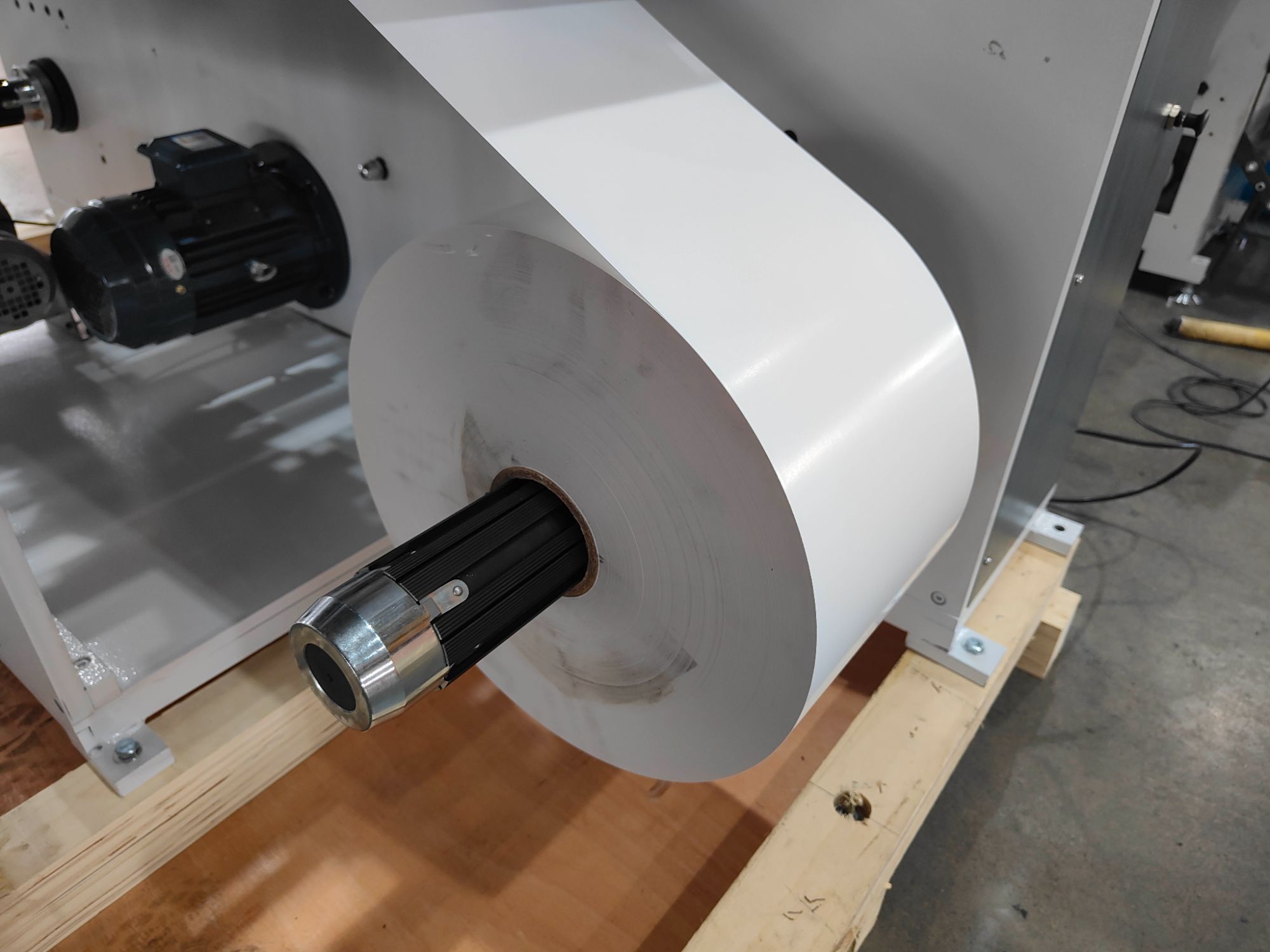

| Unwinding Unit of Fully Automatic Rotary Die-Cut Slit Rewind Machine for Trademark Label | |
 |  |

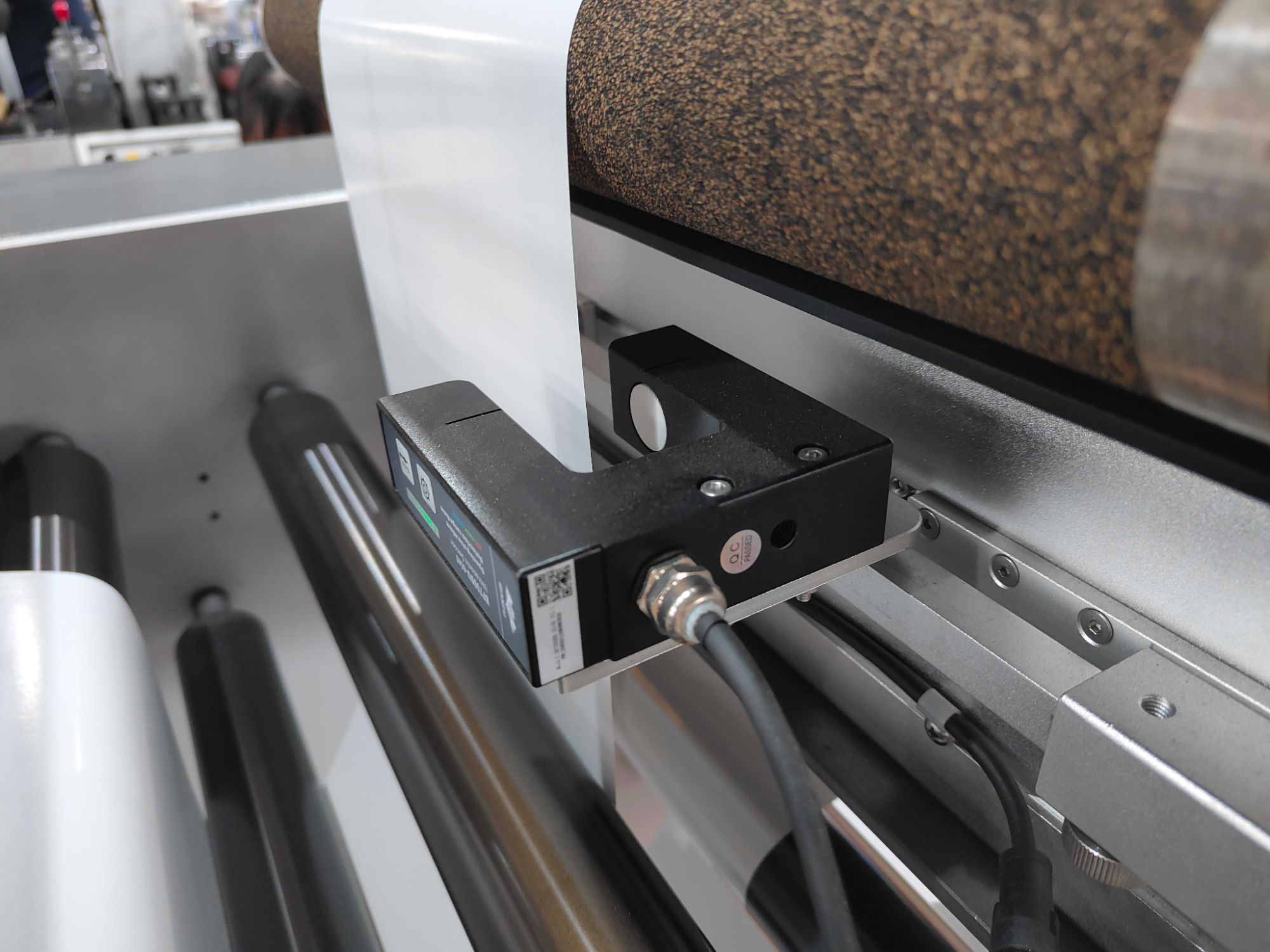

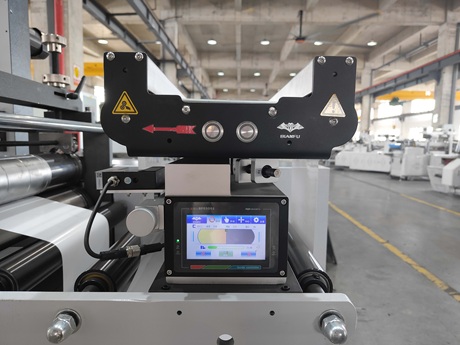

| Auto Web Guide System of Fully Automatic Rotary Die-Cut Slit Rewind Machine for Brown Paper Sticker | |
 |  |

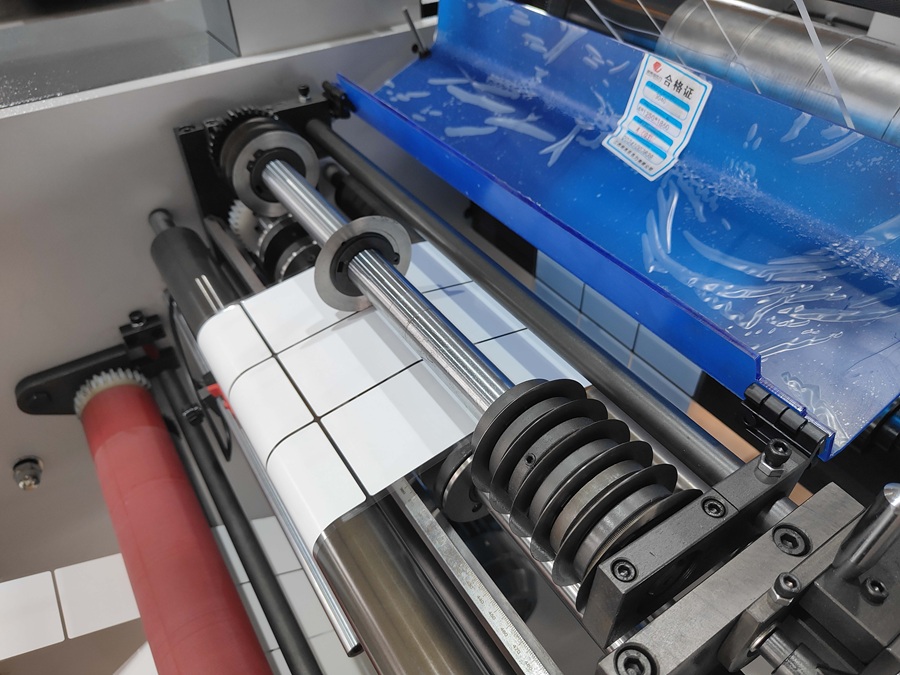

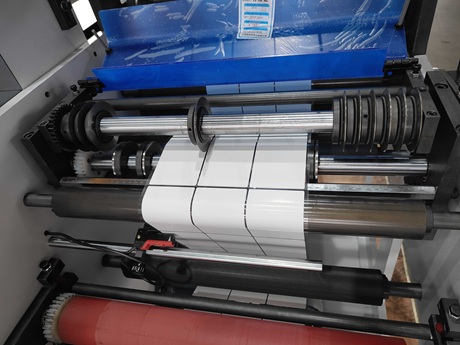

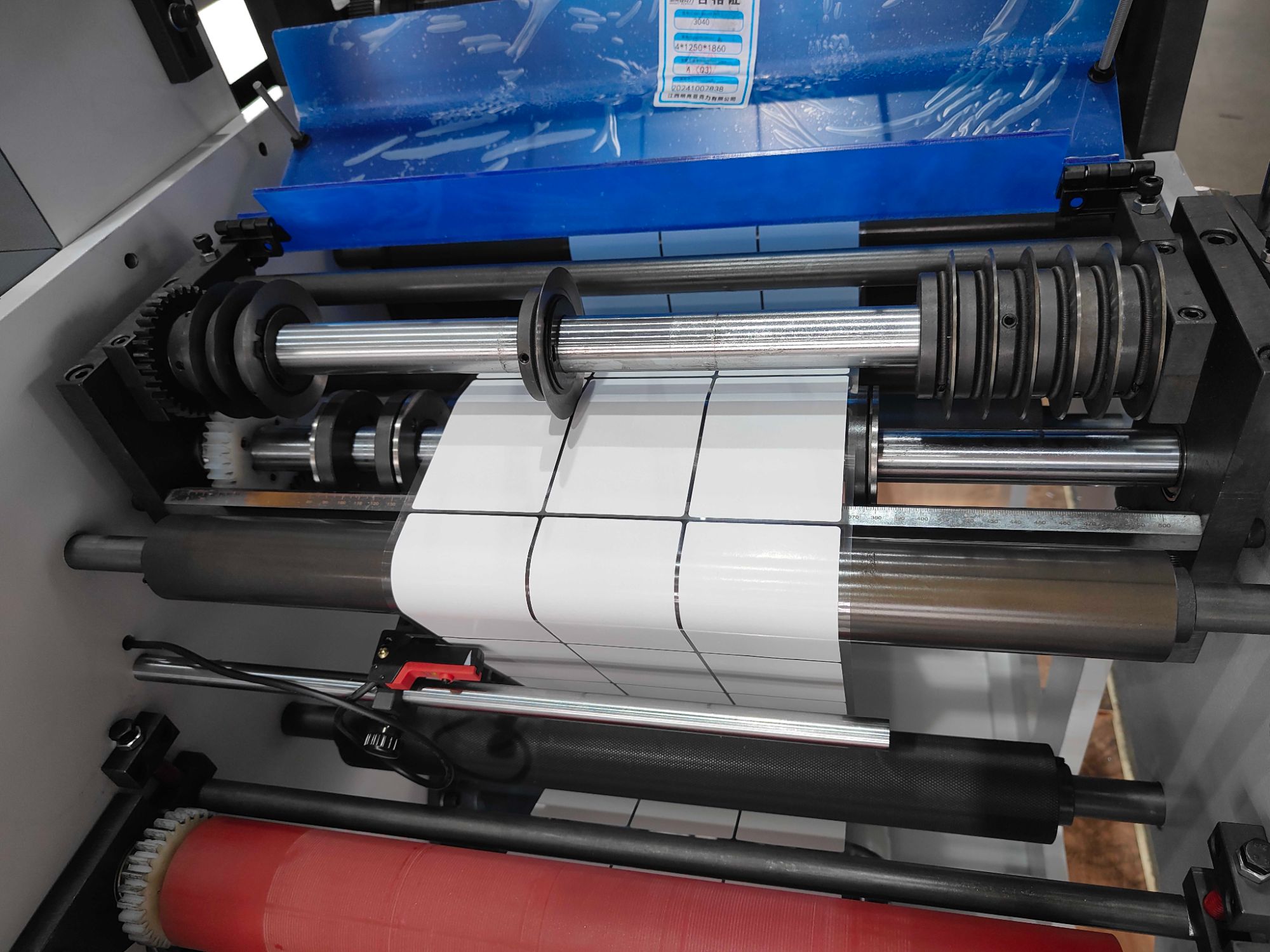

| Slitting Unit of Fully Automatic Rotary Die-Cut Slit Rewind Machine for Wine Label | |
 |  |

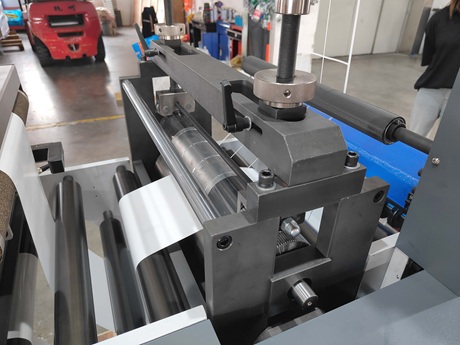

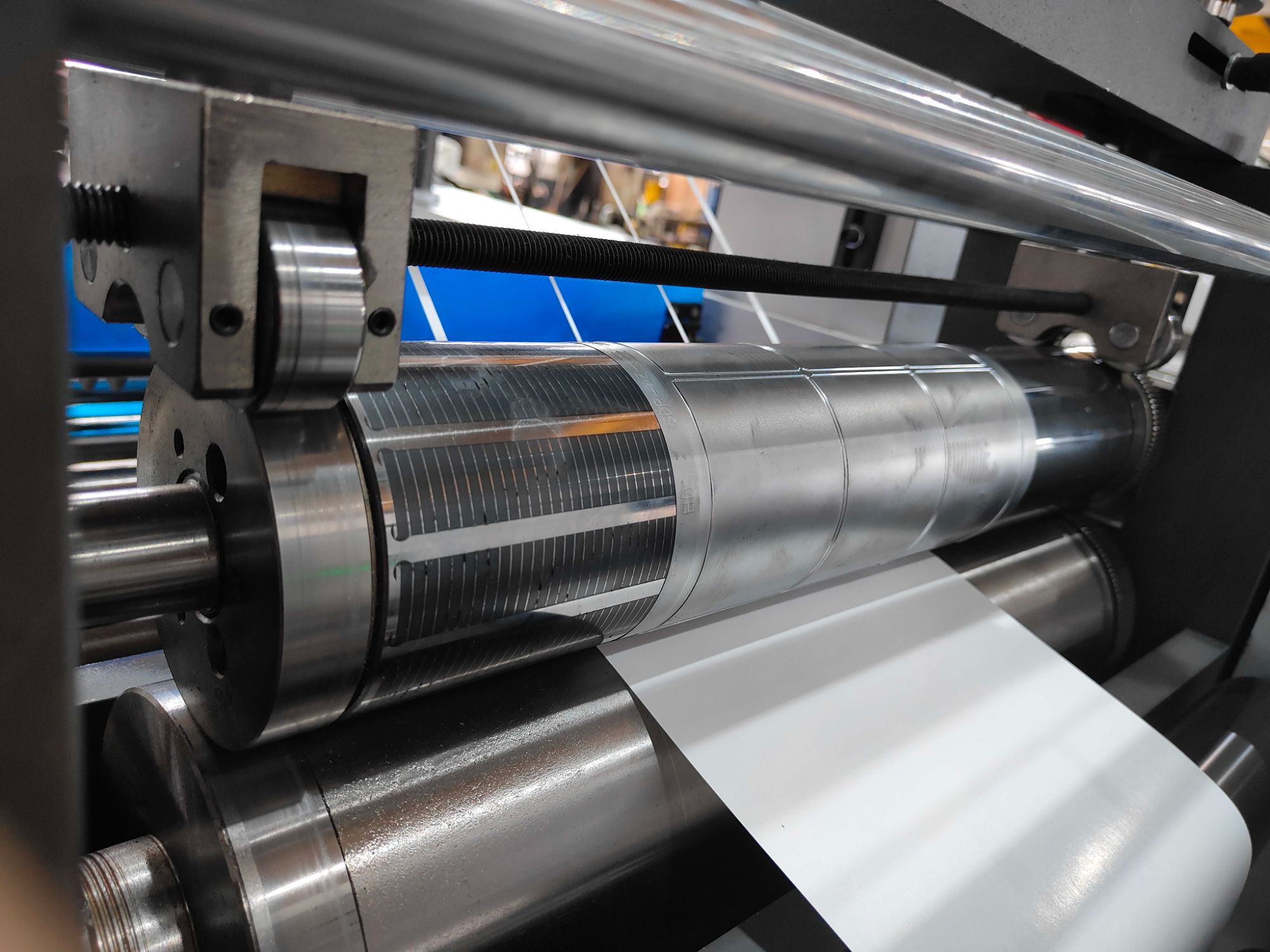

| Die-Cutting Unit of Fully Automatic Rotary Die-Cut Slit Rewind Machine for QR Code Label | |
 |  |

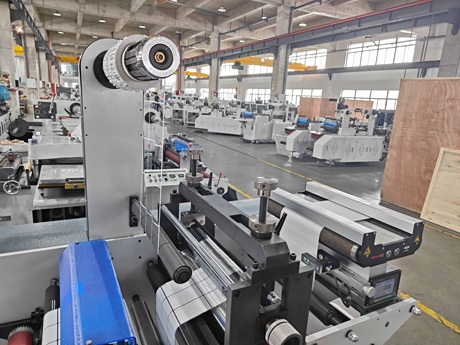

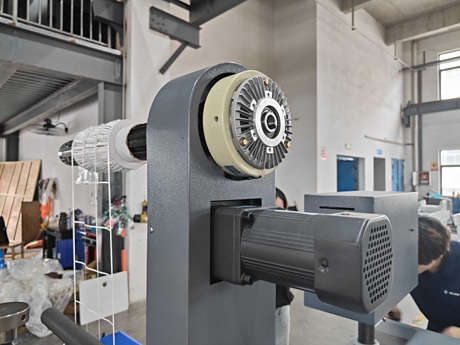

| Waste Stripping Section of Fully Automatic Rotary Die-Cut Slit Rewind Machine for Water Bottle Label | |
 |  |

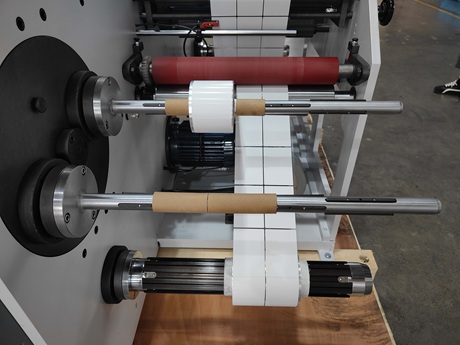

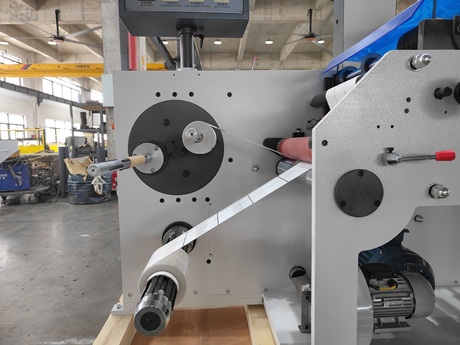

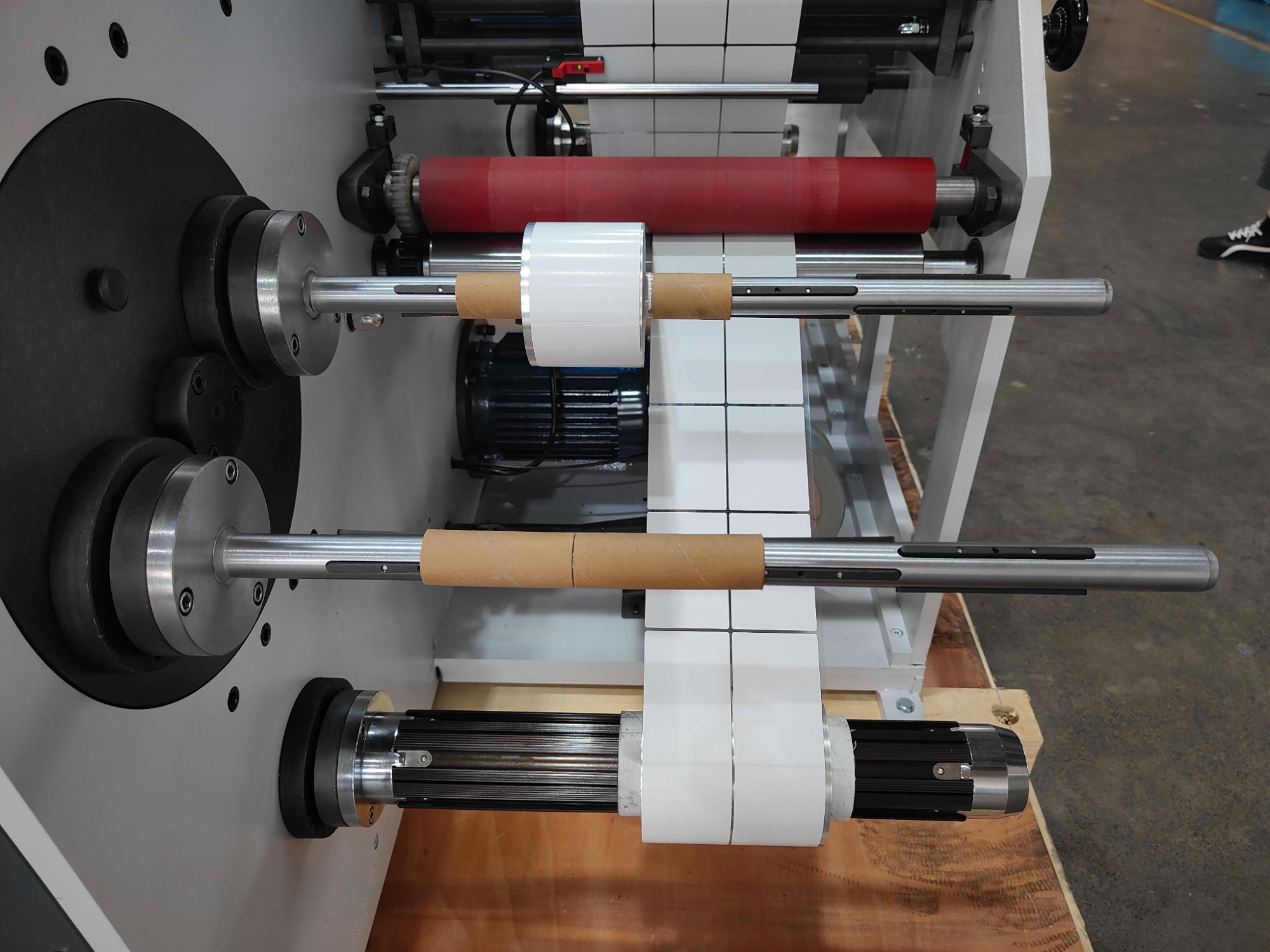

| Rewind Unit of Fully Automatic Rotary Die-Cut Slit Rewind Machine for Gold Foil Sticker | |
Q&A
1. What materials is the rotary die-cutting and slitting machine suitable for?
It is suitable for various roll materials such as self-adhesive label paper, coated paper, thermal paper, PET, PVC, BOPP, and aluminum foil composite materials.
- 2. Can the equipment perform die-cutting and slitting simultaneously?
Yes, this equipment integrates die-cutting, waste removal, and slitting on the same production line, completing them in one go. This improves the production efficiency of roll labels, thermal labels, and barcode labels and reduces manual intervention.
3. What is the die-cutting precision that can be achieved?
The die-cutting precision of standard equipment can typically reach ±0.1mm, which is very suitable for high-precision production of can labels, bottle labels, and jar labels.- 4. What are the advantages of a circular-to-circular press structure?
The circular-to-circular press structure offers stable pressure, high speed, and high alignment accuracy, making it suitable for long-term continuous production of pharmaceutical and chemical labels, and also extending tool life. 5. Does the equipment support multi-width slitting?
Yes. The slitting blade assembly can be flexibly adjusted according to product requirements to achieve multi-width label or roll output.6. How do you ensure slitting quality?
The equipment is equipped with an automatic tension control system, a precision slitting blade holder, and a deviation correction system to ensure neat cut edges and tight, flat rolls.
7. How fast is the order changeover?
Utilizing servo drive and a fast mold changeover structure, it can significantly shorten the work preparation time and improve the flexibility of small-batch, multi-order production of paper labels, safety labels, etc.8. Which industries is it suitable for?
It is widely used in industries such as self-adhesive labels, food packaging labels, daily chemical labels, pharmaceutical labels, electronic labels, and tape processing.9. Is the die-cutting roller fixed? Can it be customized?
The die-cutting roller can be customized according to the product size, and different die-cutting rollers can also be replaced to adapt to various die-cutting specifications.10. What is the approximate operating speed of the machine?
Different configurations can achieve a high-speed operation of 120m/min. The specific speed depends on the material thickness, die-cutting pattern, and process requirements.
