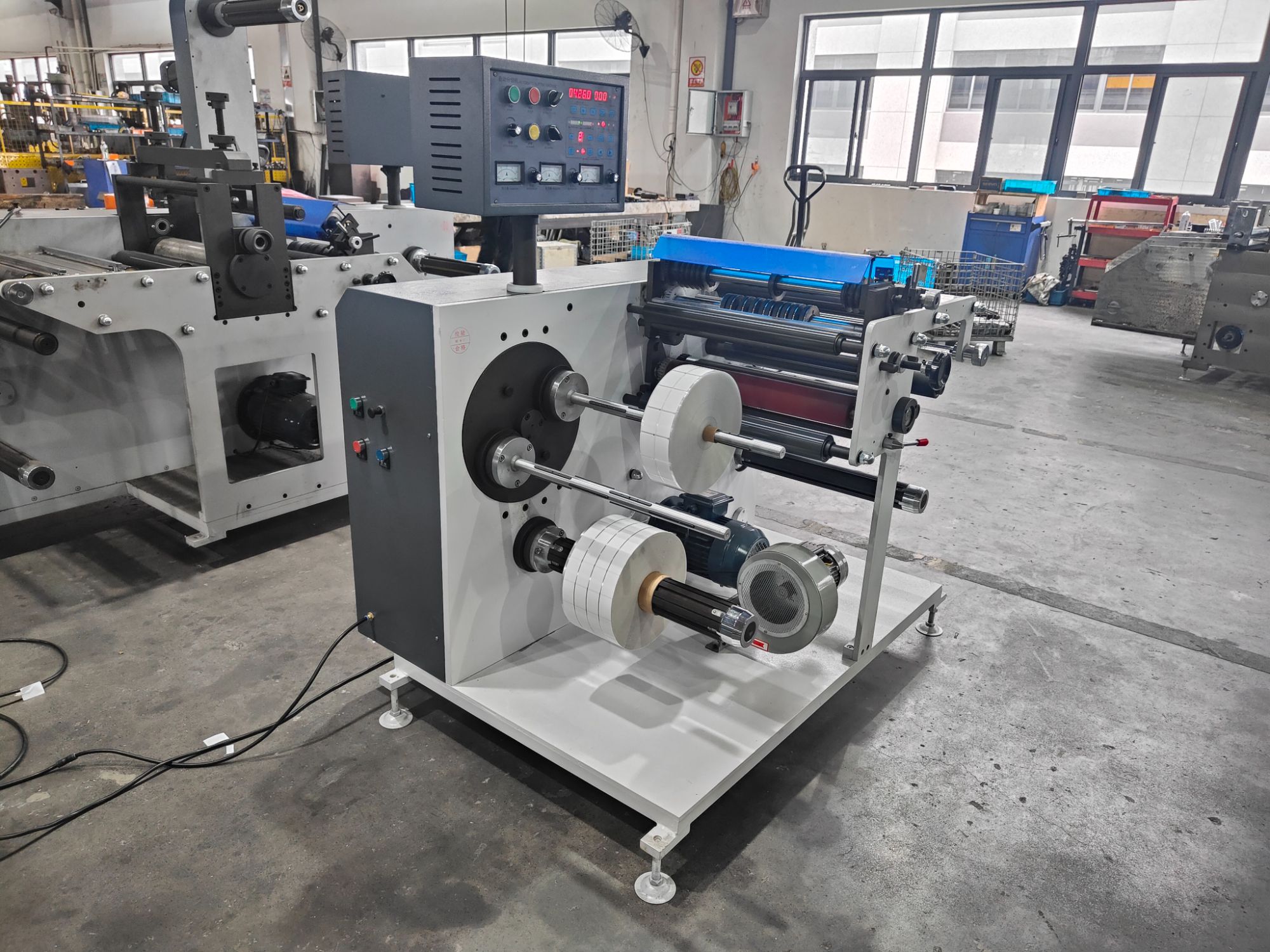

Automatic Slitting Machine With Dual-Rewinder for Adhesive Wine Label Juice Bottle Sticker
Our automatic slitting machine is the ideal companion for narrow-web die cutting applications. Engineered for precision and efficiency, it delivers outstanding performance with features like automatic length presetting, meter counting, auto-stop, and advanced web guiding. Designed with a compact footprint, it ensures high-speed operation, exceptional accuracy, and stable performance—making slitting faster, easier, and more reliable than ever.
- Description
- Feature
- Parameters
- Application
- Details Display
- Q&A
Description
This narrow-width label high-speed slitting machine is equipped with a high-end, full-servo rewind and unwind taper tension system, a web-correction system, and a dual-rewinding shaft fully automatic rotation and repositioning device. The preparatory shaft design significantly improves the production efficiency of consumables such as medicine pill labels, protein powder stickers, and vitamin labels. It supports the interchangeable use of various pneumatic shafts, metering, counting, electrostatic treatment, and low-material deceleration or shutdown, making it the preferred choice for manufacturers of shipping sticker thermal labels, water bottle labels, luxury waterproof logo stickers, and cosmetics vinyl labels.
Feature
- High-precision slitting for narrow web materials such as gold foil shampoo stickers, syringe packaging films, pills aluminum foil capsules, and tapes.
- Equipped with automatic meter counting and preset length function with auto stop.
- Advanced tension control system ensures stable unwinding and rewinding.
- Edge position control (EPC) keeps web alignment accurate and neat.
- Double rewinding shafts for efficient and flexible operation.
- Compact structure, smooth running, and low noise design.
- User-friendly control panel for easy and safe operation.
Parameters
| Slitting Speed | 120 m/min |
Max. Width | 350 mm / 450 mm |
Max. Unwinding Diameter | 500 mm |
Max. Rewinding Diameter | 500 mm |
Min. Slitting Width | 16 mm |
Max. Slitting Width | 310 mm / 410 mm |
Accuracy Rate | ±0.10mm |
Voltage | 220 v |
Main Motor Power | 2 kw |
Weight | 570 kg / 620 kg |
Dimension | 1340*965*1330mm / 1340*1125*1330mm |
Application
Express Delivery Labels
Price Labels
Product Information Labels
Warehouse Labels
Medicine Labels
Bakery Labels
Details Display
|  |

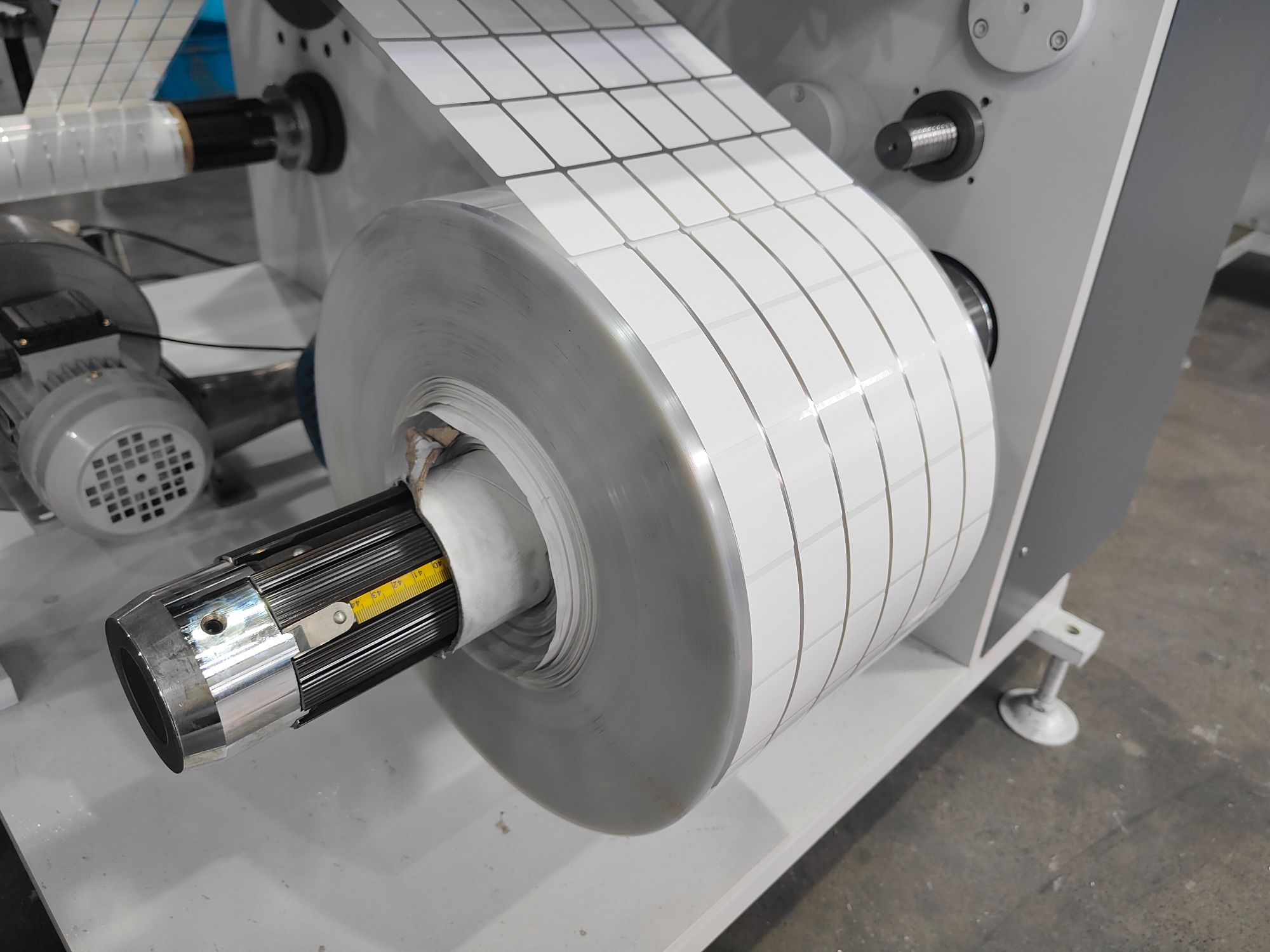

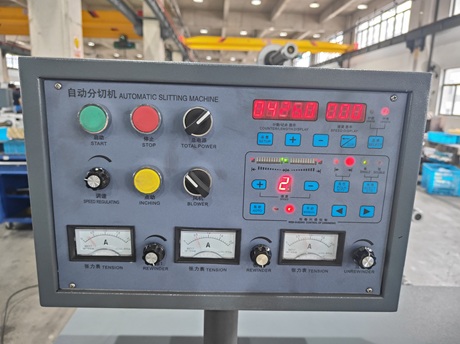

| Unwinding Unit of Automatic Slitting Machine for Trademark Labels | Control Panel of Automatic Slitting Machine for Mineral Water Bottles Labels |
 |  |

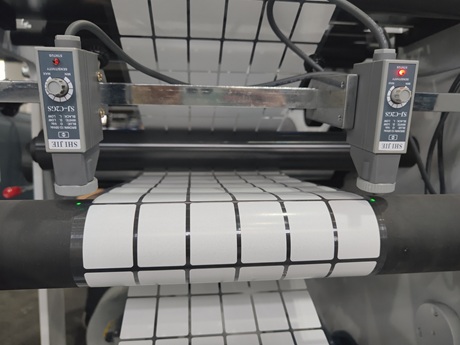

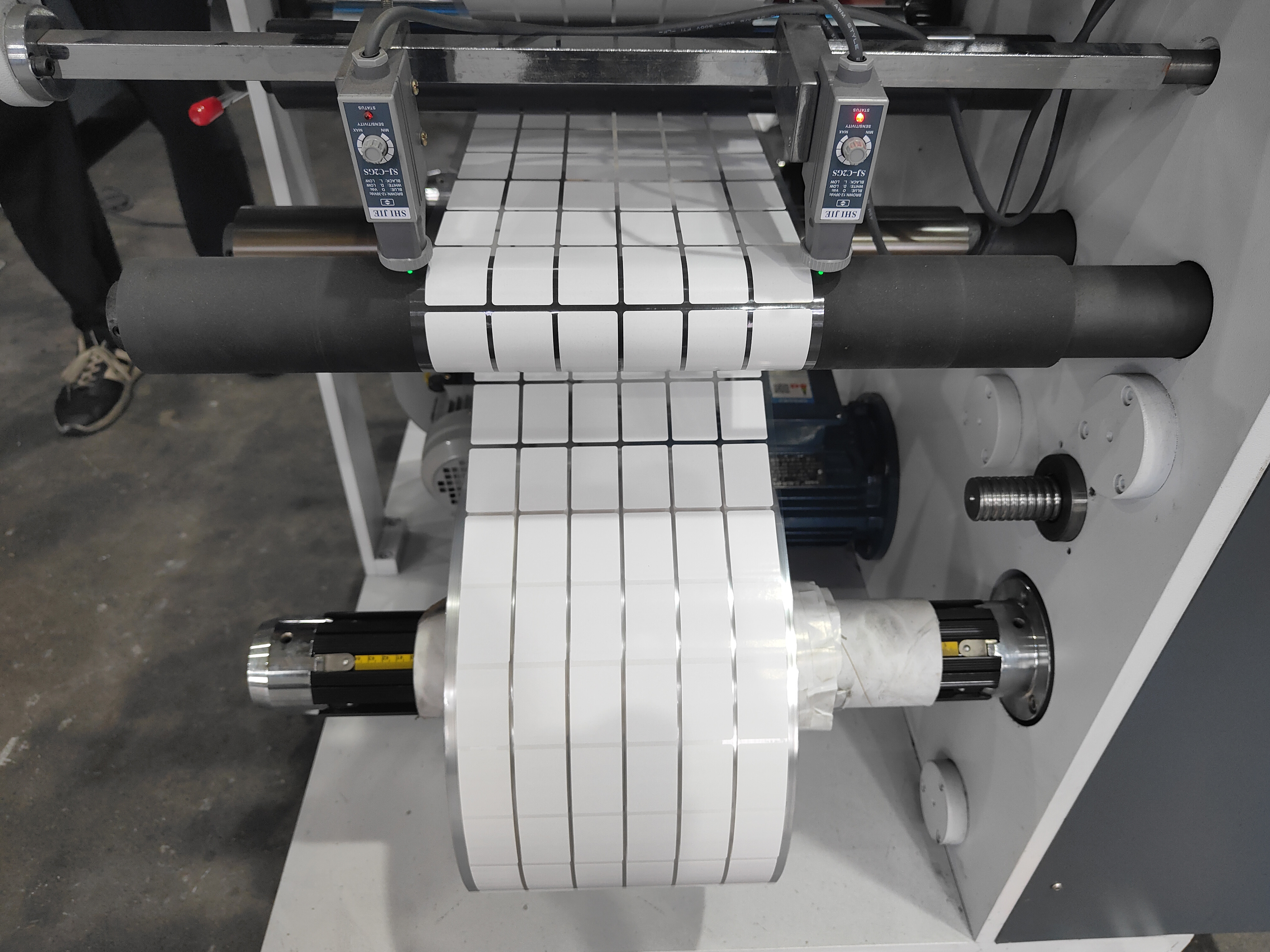

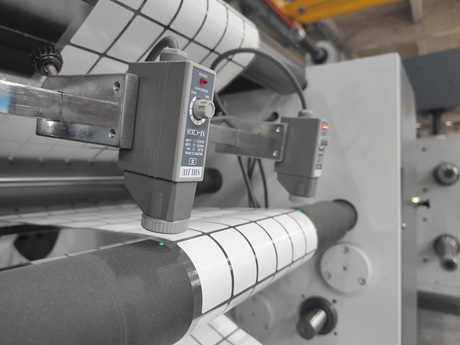

| Photoelectric System of Automatic Slitting Machine for Brown Paper Stickers | |
 |  |

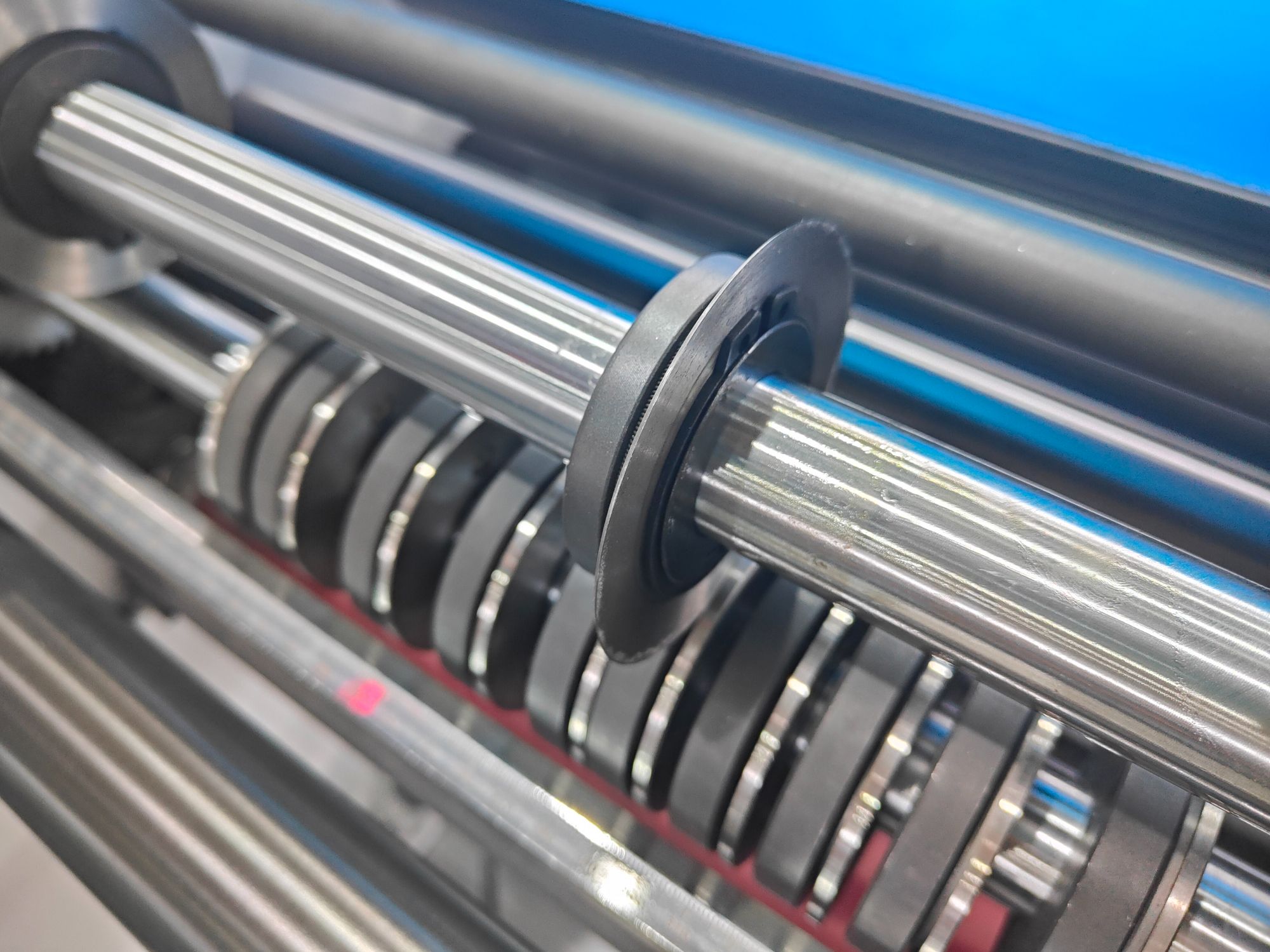

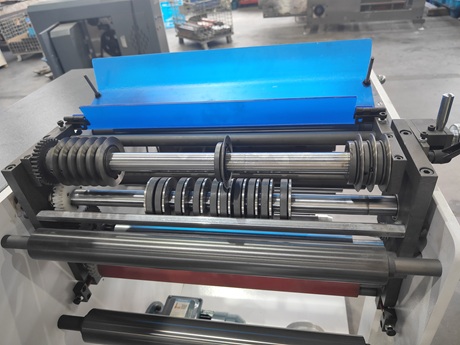

| Slitting Unit of Automatic Slitting Machine for Wine Labels | |
 |  |

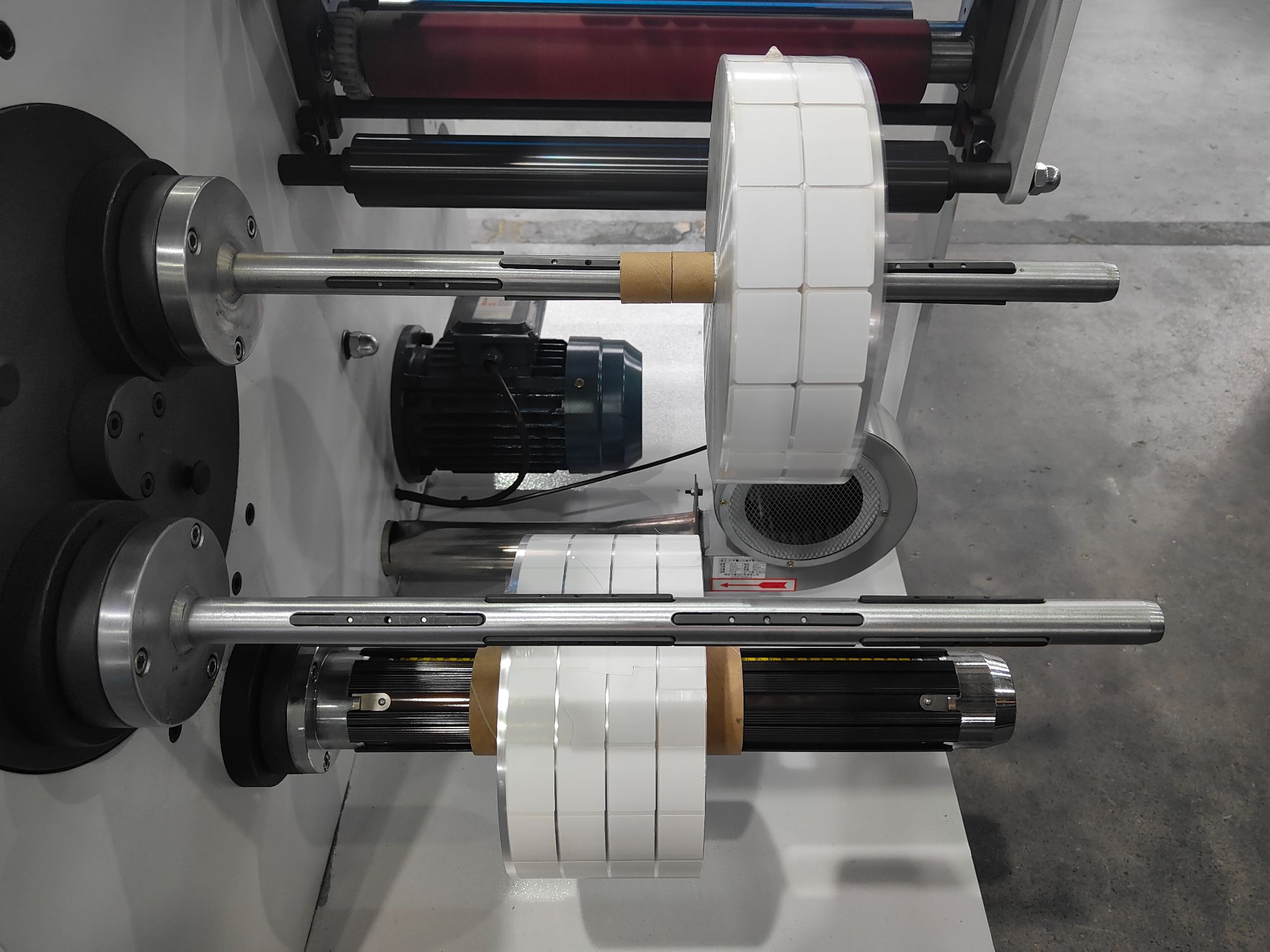

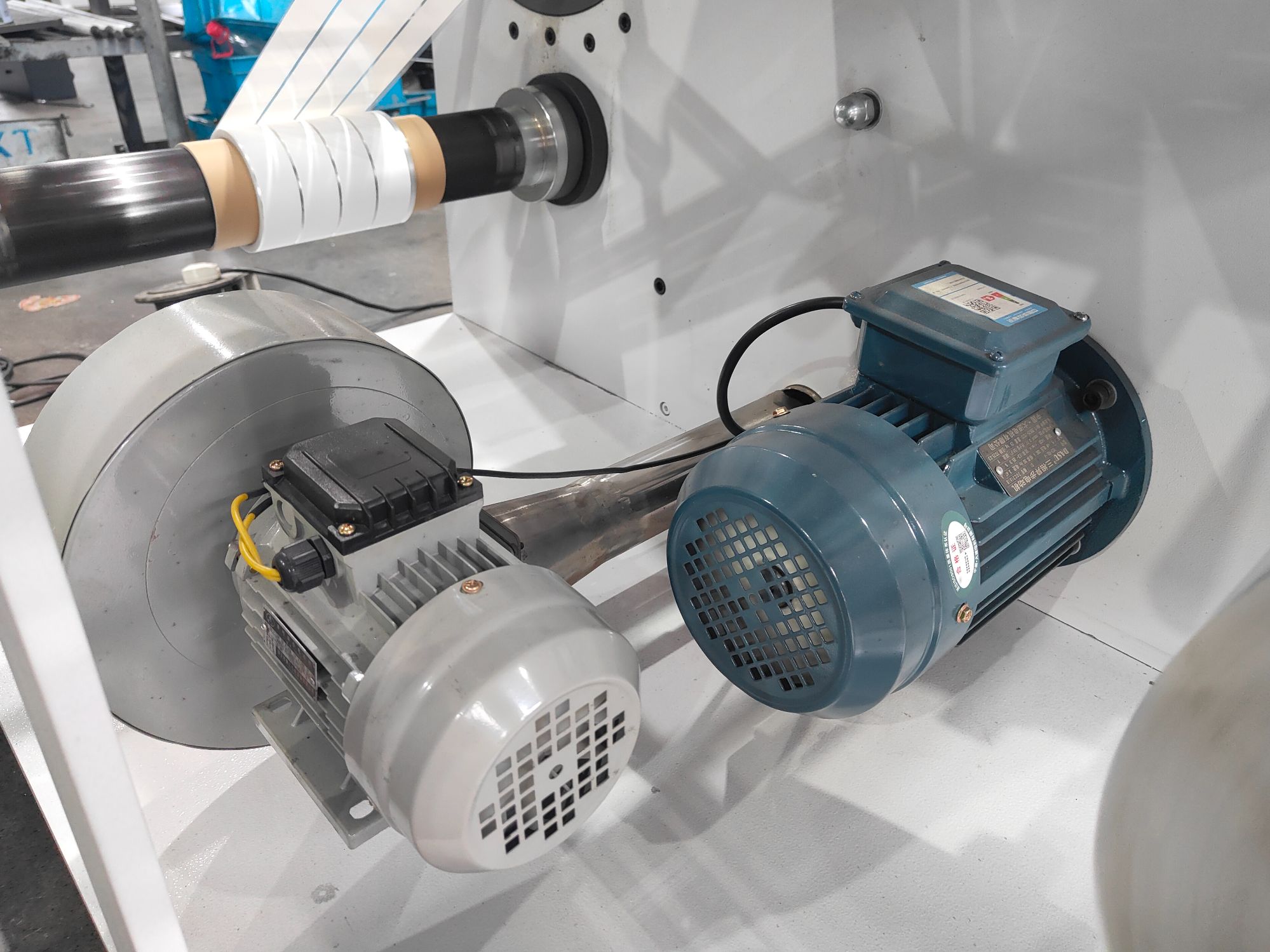

| Rewinding Unit of Automatic Slitting Machine for Luxury Labels | Blower Fan of Automatic Slitting Machine for QR code labels |
Q&A
1. What materials is this slitting machine primarily suitable for?
It is suitable for narrow roll materials such as labels, tapes, plastic films, aluminum foil, and laminated films.- 2. What is its slitting accuracy?
Equipped with high-precision slitting tools and a tension control system, it ensures smooth slitting with an error of less than 0.1mm.
3. Can the machine automatically shut down?
Yes, it can. The automatic slitting machine has automatic meter counting and a set-length stop function. It will automatically shut down when the set length is reached or if an abnormality is detected.- 4. Is the operation complicated? Does it require professional expertise?
Automatic slitting machines are very easy to operate. Their intuitive control panel generally allows workers to easily master them after minimal training. 5. What is the difference between a dual-winder and a single-winder?

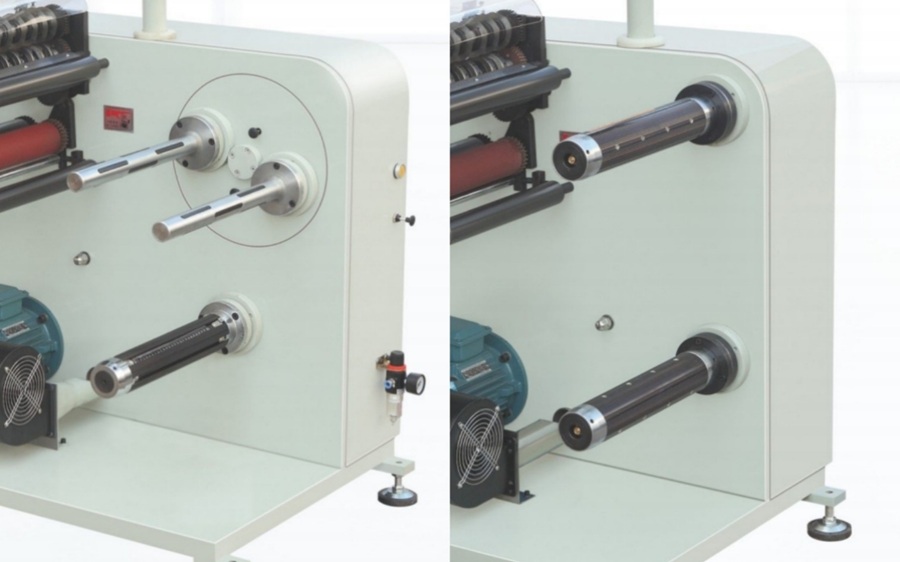

The dual-winder design allows for simultaneous winding of two rolls, improving production efficiency and is suitable for users who require efficient roll slitting.
6. Does the machine require a lot of floor space?
The compact structure and small footprint make it suitable for small and medium-sized factories.
