The doctor blade is a key component in a flexographic printing machine. It is used in conjunction with the anilox roller to control the amount of ink that is transferred from the anilox roller to the printing plate. The doctor blade works by scraping off excess ink from the anilox roller, leaving just the right amount of ink in the roller's cells to be transferred to the printing plate.

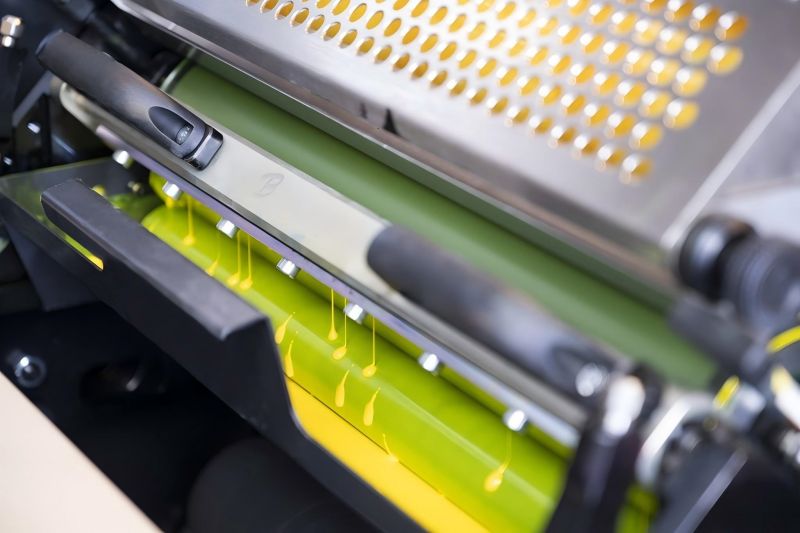

Doctor Blade of Flexo Printing Machine for Fertilizer Packing

Key Functions of the Doctor Blade in Flexo Printing:

Ink Metrology: The doctor blade controls the thickness of the ink layer on the anilox roller. It ensures that the correct amount of ink remains in the anilox cells after the roller has picked up ink from the ink fountain. By doing this, it helps maintain consistent print quality.

Preventing Ink Build-up: The blade scrapes excess ink off the anilox roller, preventing over-application of ink and ensuring a precise amount is transferred to the printing plate.

Preventing Doctor Blade Wear: The blade ensures smooth, controlled contact with the anilox roller, reducing the wear and tear on both components.

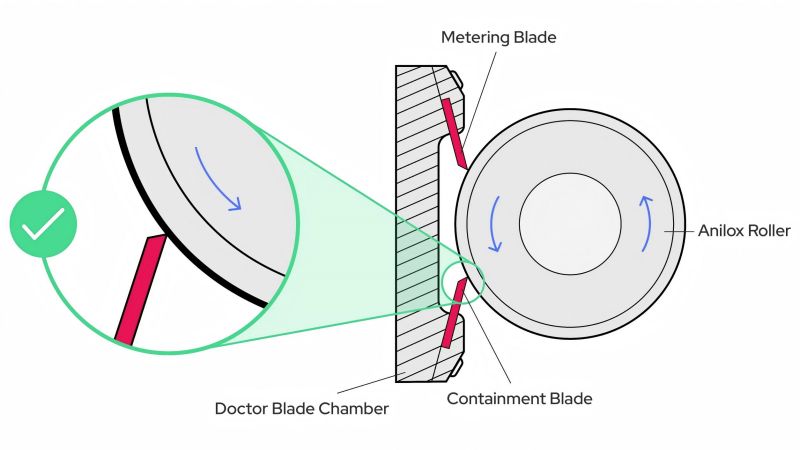

Correct Installation of Doctor Blade

Components of a Doctor Blade:

Blade Material: The doctor blade is typically made of materials such as steel, plastic, or ceramic. The choice of material depends on the type of ink being used and the specific application.

1. Steel Blades: Typically used for longer runs and higher-speed presses because they provide a smoother, more precise scraping action.

2. Plastic Blades: Often used for lighter-duty applications or when a more flexible blade is needed to prevent damage to the anilox roller.

3. Composite or Ceramic Blades: These are durable and can withstand harsh ink types, such as solvent-based inks.

Blade Holder: The doctor blade is held in place by a blade holder, which positions the blade at the proper angle to the anilox roller. It’s important to ensure that the blade is positioned precisely to maintain ink transfer consistency and avoid damaging the anilox roller.

Pressure and Angle: The amount of pressure applied by the doctor blade and its angle relative to the anilox roller are crucial to achieving proper ink transfer. Incorrect pressure can lead to uneven ink distribution or excessive wear on the anilox roller.

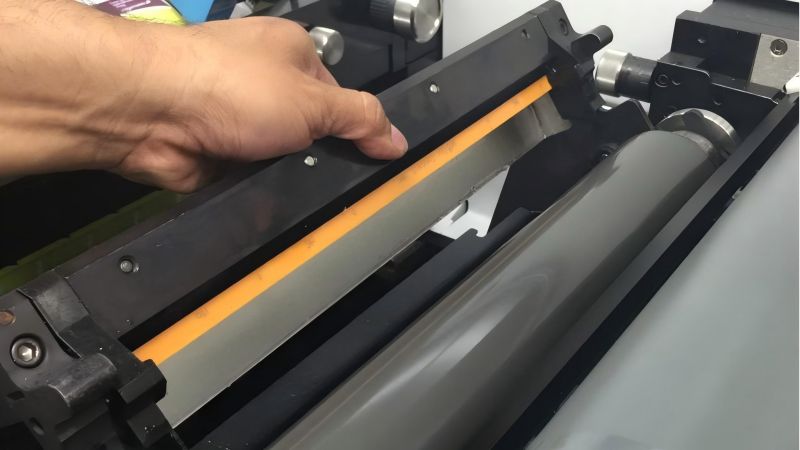

Doctor Blade of Flexographic Printing Machine for Paper Cup

Types of Doctor Blades:

Single Blade Systems: A single blade that scrapes ink off the anilox roller. It is the most common system and works well for most flexo printing applications.

Double Blade Systems: A second blade is used in some systems to further control the ink layer or to remove any ink left on the roller after the first scrape. This can be particularly useful for higher-precision printing jobs.

Hollow Doctor Blades: These blades have a hollow center and can be pressurized to provide a more consistent scraping action. These are often used for very fine ink metering.

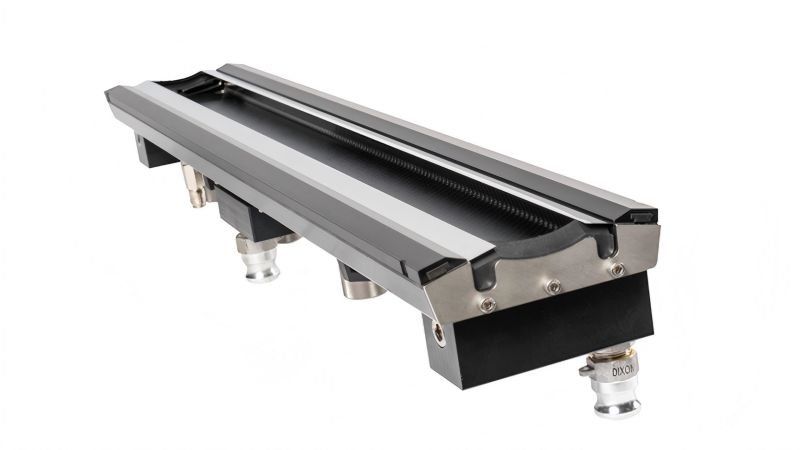

Doctor Blade of Flexo Printing Machine for Label

Importance of the Doctor Blade in Flexo Printing:

Consistent Ink Application: By controlling the ink amount on the anilox roller, the doctor blade helps maintain print quality and consistency, avoiding issues like color variation or insufficient ink coverage.

Reduced Waste: The doctor blade helps prevent excessive ink from being transferred to the printing plate, reducing ink consumption and waste.

Improved Print Speed and Efficiency: Proper ink metering and consistency result in faster printing speeds without sacrificing quality, improving overall machine efficiency.

In short, the doctor blade plays a crucial role in achieving high-quality, efficient, and consistent flexographic printing.
