A printing plate cylinder is an essential component of a flexographic printing press. It is the cylinder onto which the flexo printing plate is mounted, and it plays a crucial role in transferring the inked image onto the substrate (e. g. , paper, film, foil). The plate cylinder is typically used in conjunction with the anilox roller, doctor blade, and printing plate to achieve high-quality prints in the flexographic process.

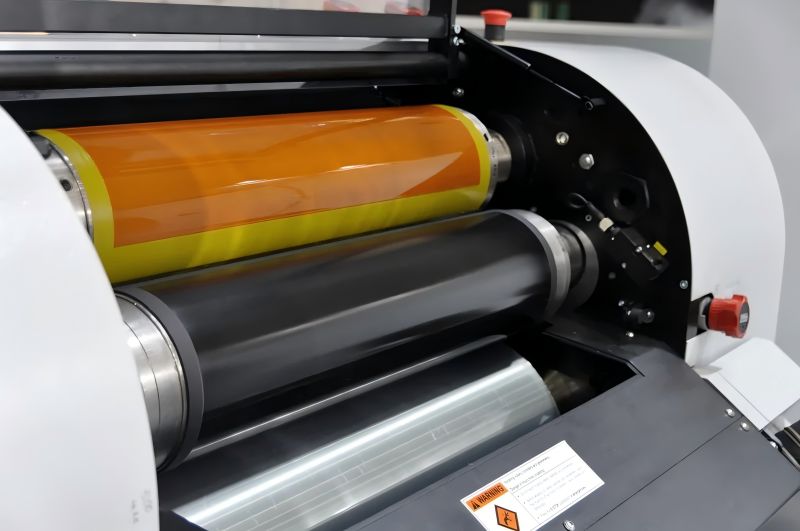

Printing Plate Cylinder of Flexo Press for Baby Paper Diaper

Function of the Printing Plate Cylinder:

Mounting the Printing Plate:

1. The printing plate cylinder provides the surface on which the flexo printing plate is mounted. The plate is either wrapped around the cylinder or mounted on a sleeve that is then attached to the cylinder.

2. The plate is securely fastened to the cylinder using mounting tape, clamps, or other mechanical methods.

Image Transfer:

1. As the plate cylinder rotates, it presses the flexo printing plate against the substrate (paper, film, etc. ) while being inked by the anilox roller.

2. The inked image on the raised areas of the plate is transferred to the substrate by the pressure between the plate cylinder and the substrate.

Precision and Pressure:

1. The pressure between the printing plate cylinder and the substrate is critical for achieving sharp, high-quality prints. The plate cylinder needs to be correctly aligned to ensure consistent ink transfer and avoid defects such as misregistration or ink smudging.

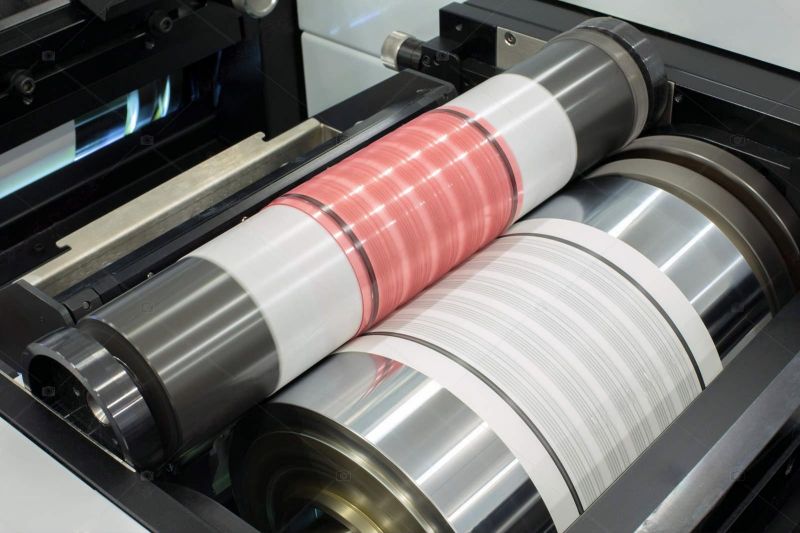

Printing Plate Cylinder of Flexo Printing Machine for Biscuit, Candy, Sugar Snack Packaging

Key Components Related to the Printing Plate Cylinder:

Plate Cylinder Core:

1. The core is the central part of the cylinder, typically made from materials like steel or aluminum. It provides the structural support for the printing plate and ensures uniform pressure during printing.

2. In modern flexo presses, the core may have a sleeve system, which allows the cylinder to accommodate different plate sizes and makes it easier to change plates during production.

Sleeve Systems:

1. Some flexo presses use sleeve systems rather than traditional plate cylinders. A sleeve is a flexible or rigid unit that fits over the printing plate cylinder core. The printing plate is mounted directly onto the sleeve, which is then placed onto the cylinder.

2. Sleeve systems are commonly used in narrow web presses and offer advantages like faster changeovers and easier handling.

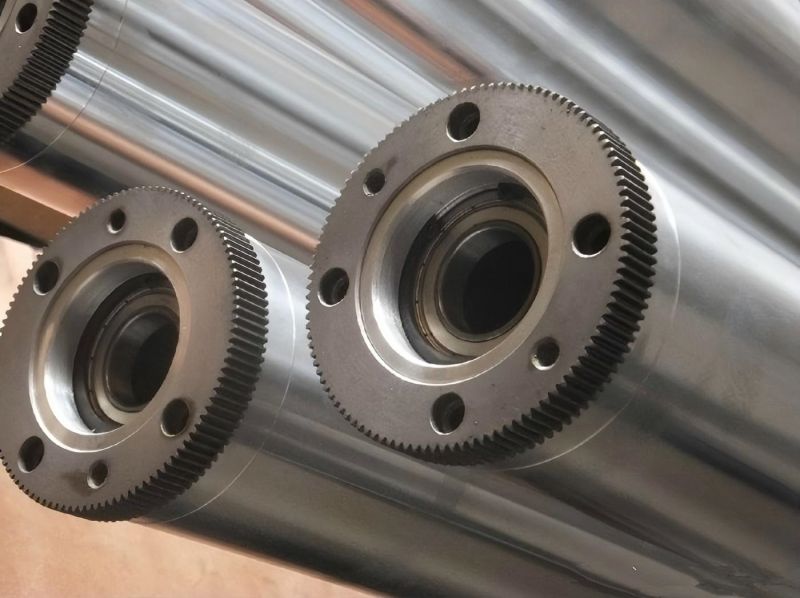

Printing Plate Cylinder of Flexographic Printer for Bedding Breathable Fabric

Mounting the Plate:

1. Mounting Tape: The printing plate is typically mounted onto the cylinder or sleeve using mounting tape. This tape holds the plate in place during printing and allows it to be removed and replaced when necessary.

2. Clamps and Fasteners: Some presses use mechanical clamps or fasteners to secure the plate.

Anilox Roller Interaction:

1. The anilox roller, which meters the ink, comes into contact with the printing plate cylinder. The ink is transferred from the anilox roller to the raised image areas of the flexo plate.

2. The doctor blade removes excess ink from the anilox roller, ensuring that the correct amount of ink is delivered to the plate.

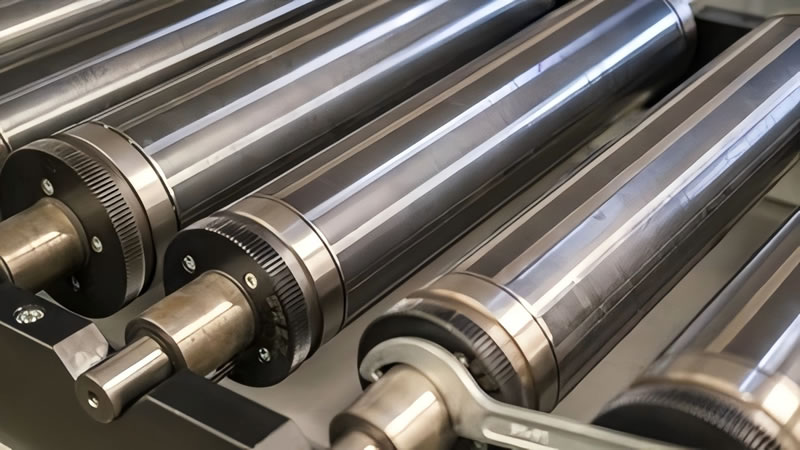

Printing Plate Cylinder of Flexo Printing Press for Fries Chicken Kraft Paper Box

Types of Plate Cylinders:

Solid Plate Cylinders:

1. Traditional, rigid cylinders used in older flexo presses. These cylinders provide the structural support for the plate but are less flexible when it comes to plate changes.

Sleeve Plate Cylinders:

1. These are increasingly popular in modern flexo presses, especially for narrow-web or high-speed printing. Sleeves are easy to change, providing flexibility in handling different plate sizes and materials.

2. Flexographic Sleeve Systems allow for quicker setups and minimize downtime during job changes.

Mandrel Plate Cylinders:

1. These cylinders have a hollow core and are used in conjunction with sleeves that are mounted onto the mandrel. This system is popular for larger press setups.

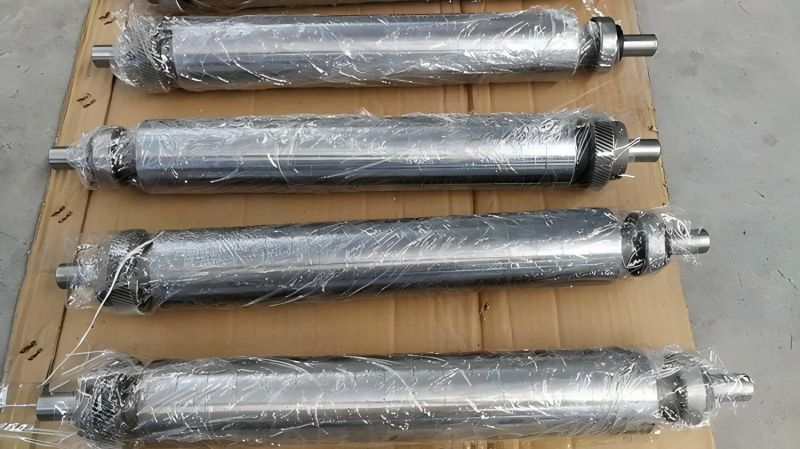

Printing Plate Cylinder of Flexo Printer for Nuts Pouch

Considerations for Plate Cylinder Selection:

Diameter:

The diameter of the plate cylinder is essential for determining the size of the printing press and the type of substrate that can be printed. It influences the print impression and pressure needed.

Plate Cylinder Surface:

The surface of the cylinder should be smooth and free of defects to avoid printing issues like inconsistent ink transfer or unwanted marks on the substrate.

Cylindrical Shape:

The cylinder must maintain a perfect cylindrical shape for even pressure distribution during printing. Any deformation could affect print quality.

Press Type and Size:

The size of the plate cylinder should match the press configuration. For example, in narrow-web presses, the cylinder may be smaller and more flexible, while wide-web presses often use larger, more rigid cylinders.

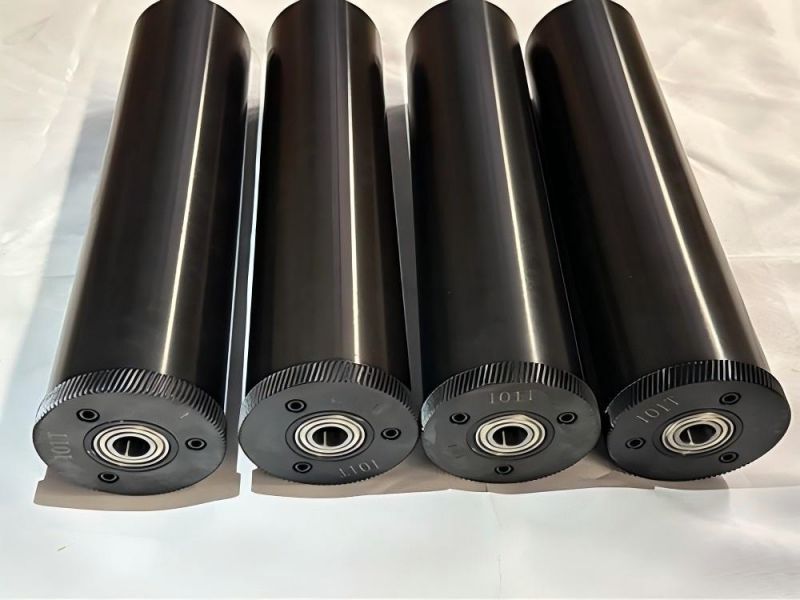

Printing Plate Cylinder of Flexo Printing Machine for Cosmetics Vinyl Label

Plate Cylinder Maintenance:

Cleaning: The plate cylinder should be regularly cleaned to remove ink residue and any debris. This helps maintain consistent print quality and prevents defects in future jobs.

Storage: When not in use, plate cylinders should be stored in a dry, clean environment to prevent damage or warping. They should also be kept free from dust and contamination.

Conclusion:

The printing plate cylinder is a critical component in the flexographic printing process, serving as the base for mounting the flexo plate and facilitating ink transfer onto the substrate. It is essential for ensuring print quality and consistency, and its maintenance and proper configuration are vital to the overall performance of the printing press.
