A printing plate in flexographic printing (and in many other types of printing) is the surface onto which the image or design is transferred from the digital or physical original, and then onto the substrate (such as paper, film, or other materials). The plate carries the ink that is transferred onto the material being printed, essentially acting as the "stencil" for the image or design.

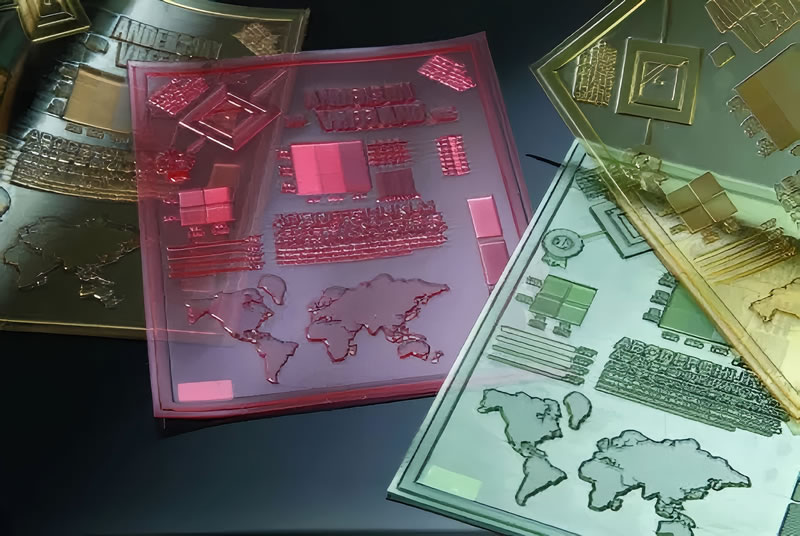

Printing Plate of Flexo Press for Mattress Pillow

How the Flexo Printing Plate Works:

Plate Material: Printing plates in flexo printing are typically made from photopolymer (most common) or rubber. Photopolymer plates are popular because they offer high-quality prints and are easily photochemically imaged.

Imaging the Plate:

1. For flexo printing, the image is created by exposing the plate to light through a photomask or digital imaging system. The exposed areas harden (in the case of photopolymer), while the unexposed areas remain soft and are later washed away. This creates the raised areas that will hold the ink.

2. In some processes, laser ablation or digital engraving can also be used to create the image.

Plate Mounting: Once the plate is imaged, it is mounted onto a cylinder or sleeve on the flexo printing press. The mounted plate is then in contact with the substrate during printing.

Ink Transfer: The plate holds the ink in the raised areas and transfers it onto the substrate as it makes contact with the material being printed, often through a combination of pressure and contact with the anilox roller and doctor blade.

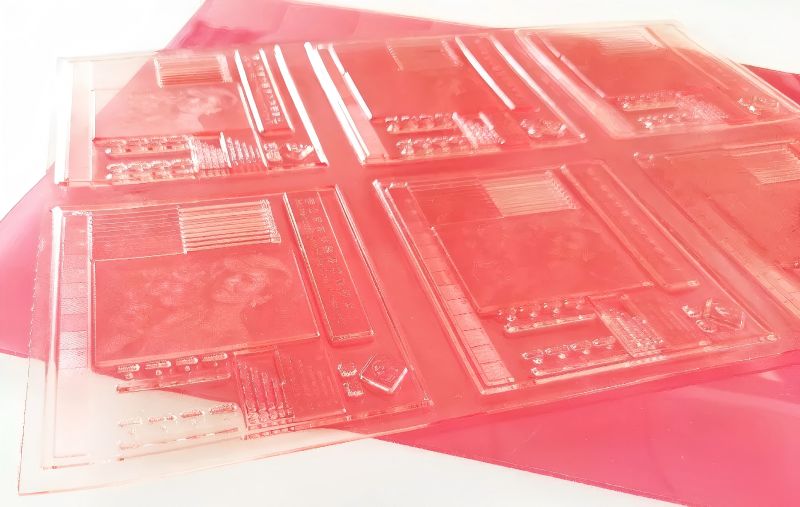

Printing Plate of Flexo Printer for Coffee Tea Milk Powder Packaging

Types of Flexo Printing Plates:

Photopolymer Plates:

1. These are the most commonly used plates in modern flexo printing. They consist of a light-sensitive polymer material that hardens when exposed to UV light. The unexposed areas are washed away, leaving the raised image area.

2. Advantages: High-quality print, wide range of ink compatibility, and ability to produce fine details and halftones.

Rubber Plates:

1. Older technology, but still used in some applications. Rubber plates are softer than photopolymer plates and are generally used for more heavy-duty applications where fine details aren't as crucial.

2. Advantages: Durability, especially for rough printing jobs or for substrates with irregular surfaces.

Digital Plates:

1. Digital flexo plates are often produced by direct imaging (no need for film or chemicals), using laser exposure to create the image. These are often used for shorter runs and high-quality prints.

2. Advantages: Faster turnaround times, no need for film processing, and more accurate image reproduction.

Plate Characteristics and Considerations:

Thickness: The thickness of the plate can vary depending on the press and the job. Thicker plates are often used for packaging applications that require more pressure and a deeper ink deposit.

Hardness: Flexo plates come in varying hardness levels. Softer plates are often used for printing on flexible substrates (like films or foils), while harder plates are used for more rigid substrates (like corrugated cardboard).

Durometer: The durometer (hardness) of the plate affects its ink transfer and print quality. Softer plates generally give better ink transfer on flexible materials, while harder plates are more suitable for higher-detail printing and harder substrates.

Printing Plate of Flexo Printing Machine for Napkin

Plate Maintenance:

Plates can wear out over time, particularly with longer print runs or if they're exposed to harsh chemicals or improper storage conditions.

Cleaning: Plates need to be cleaned regularly to remove ink residue and other contaminants. Special cleaning agents are used depending on the ink type (water-based, UV, solvent-based).

Storage: Plates should be stored in a cool, dry environment, away from direct light and heat, to prevent distortion or degradation.

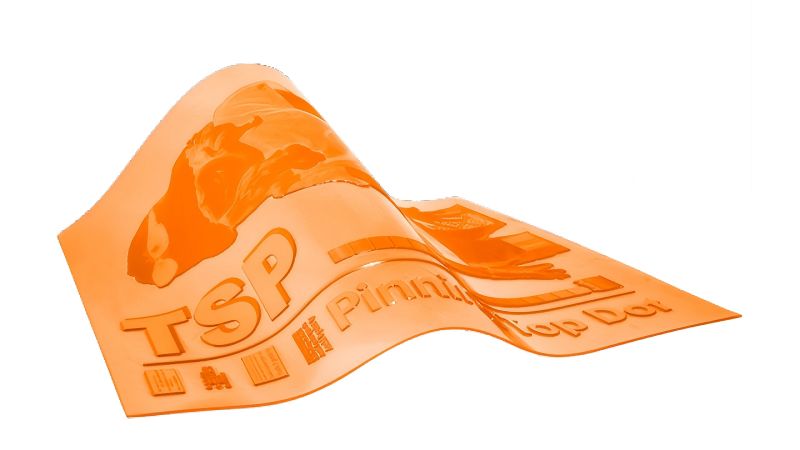

Printing Plate of Flexograhic Printing Machine for Bottles Labels

Printing Plate in the Flexo Process:

1.Ink Transfer: The printing plate picks up ink from the anilox roller and transfers it to the substrate (paper, film, etc. ).

2.Image Quality: The quality of the plate and the precision of the engraving or imaging process directly impact the final print quality. Fine details and smooth tonal transitions are important for high-end packaging and label printing.

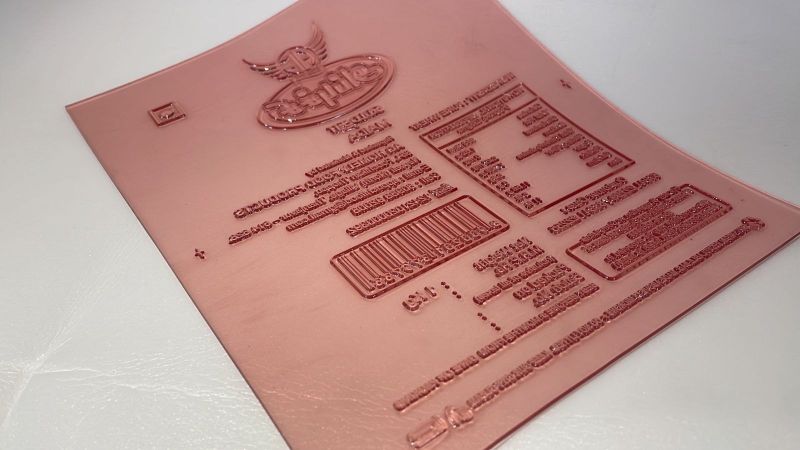

Printing Plate of Flexographic Printer for Potato Chip Pouches

Summary of the Printing Plate’s Role:

The printing plate is responsible for transferring the inked image onto the substrate.

It is mounted onto a cylinder or sleeve and then interacts with the anilox roller to ensure even ink distribution and transfer.

The type and quality of the plate used affect the resolution, detail, and overall quality of the print.
