4-Color Stack Flexo Printing Machine for Kraft Paper Bags for T-Shirts and Shoes
MJYT series stacked flexographic printing machine is suitable for printing on a variety of materials, including paper, paper containers, nonwoven fabric and so on. These flexo presses can produce common items such as fast food bags, takeout bags, bread bags, sugar packets, and nut bags. Designed with reliability and user-friendliness in mind, our flexo printing technology improves production efficiency and meets the growing market demand for customized paper packaging. This machine delivers exceptional performance, consistently meeting all your paper bag printing needs.
- Description
- Video
- Feature
- Parameters
- Application
- Details Display
- Q&A
Description
MJYT series stack type flexo printing machinery is designed to achieve top-notch printing quality on paper bags, ensuring remarkable precision and efficiency. It caters to various industries, including food packaging, beverage packaging, luxury packaging, and more. This flexographic press guarantees consistent, vivid, and durable print results, thereby enhancing the presentation of products. It is especially well-suited for applications such as snack cookie paper bags, coffee bean paper bags, milk tea packaging paper bags, wedding candy paper bags, baking food paper bags, hamburger paper bags, fried chicken paper bags, flour paper bags, and so on.
Video
Feature
- High-Quality Ceramic Anilox Roller: surface utilizes imported ceramic powder, with the anilox roller manufactured by Shanxi Yuncheng Platemaking Group. When employing water-based ink for printing, the service life spans 5-8 years; with regular ink, the lifespan of the ceramic anilox roller is 3-5 years.
- Premium Impression Cylinder: ensures durability and stability. An optional constant temperature control system prevents thermal expansion, thereby enhancing printing accuracy for products such as seed paper bags, dog food paper bags, biscuit paper bags, etc.
- Achieve the Fastest Printing Speed on the Stack Flexo Printer Market: printing speed can reach up to 158m/min.
- Print on Both Sides: reduce manpower, greatly improve the working efficiency of flexographic printing presses, and shorten the printing production cycle of printing materials.
- Real-Time Monitoring of Printing Quality: optional video inspection system, realize electric fine-tuning, ensure high-precision and high-efficiency printing production.
- Reliable After-Sales Guarantee: warranty period is 2 years.
- CNC Machine Frame and Nickel-Plated Printing Unit Position: prevent rust and extend machine life.
- Oxidized Aluminum Roller: long-term contact with ink will not cause discoloration.
- Advanced Tension Control System: monitors and adjusts web tension to ensure stable material handling, minimize printing defects, and maintain high-quality, precise print registration for paper bags used in applications such as pet food paper bags, mooncake paper bags, bread paper bags, and dried cranberries paper bags.
- Manual or Automatic Color Register System: ensures precise color register to improve print quality and production efficiency, suitable for printing on products such as salt paper bags, dental use sterilization pouches,medical instrument sterile pouches, etc.
- Manual or Automatic Color Register System: ensures precise color register to improve print quality and production efficiency, suitable for printing on products such as salt paper bags, dental use sterilization pouches,medical instrument sterile pouches, etc.
Parameters
| Model | MJYT Series |
| Max Printing Width | 570-1570 mm |
| Print Repeat Range | 280-1000 mm |
| Colordecks | 4-6 colors |
| Mechanical Speed | 50-150 m/min |
| Printing Speed | 50-130 m/min |
| Precision | ±0.15 mm |
| Rewinding Diameter | 1200 mm |
| Unwinding Diameter | 1200 mm |
Application
Case-1: Catering Industry
Stack flexo press can print on a variety of paper bags, such as takeout bags, fast food bags, and coffee packaging paper bags. It accurately controls ink thickness, ensuring uniform colors and sharp patterns on the paper bags. Even when the curvature of the paper container's surface varies, the machine can still maintain excellent printing quality.
Lunch Paper Bag
Hamburger Packaging Paper Bag
Coffee Packaging Paper Bag
Case-2:Food Industry
In the food industry, stacking type flexo presses are extensively utilized for printing on paper bags. Their eco-friendly and efficient nature makes them the top choice for food packaging printing. These flexographic machine can handle a wide range of food packaging paper bags, such as those for popcorn, sandwiches, and coffee filters, and they can accommodate printing needs from single to multi-color. The water-based inks they use are pollution-free and comply with food safety standards.
Popcorn Paper Bag
Coffee Bean Paper Bag
Biscuit Paper Bag
Case-3:Retail Industry
In the retail sector, the customized production of paper bags is greatly facilitated by stack flexographic printers. These presses are characterized by their eco-friendly and efficient nature, which allows them to meet brands' demands for personalized paper bag designs. They can produce a variety of paper bags, including supermarket shopping bags, gift bags, t-shirt and shoes packaging bags, and advertising paper bags, all of which contribute to enhancing the brand image.
Supermarket Shopping Paper Bag
Gift Paper Bag
Shoes Paper Bag
Case-4: Medical and Pharmaceutical Industry
In the medical and pharmaceutical industry, stacking type flexo presses are widely used in the production of pharmaceutical paper bags. They use environmentally friendly water-based inks, meet the strict requirements of the pharmaceutical industry for packaging materials, and have the characteristics of efficient printing and low energy consumption. The high-precision graphic printing of flexographic printing presses ensures that the drug information is clear and legible, and has good moisture-proof and anti-oxidation properties.
Medical Sterilization Bags for Mask
Sterilization Pouches for Medical Instrument
Medical Supplies Paper Bag
Case-5: Fashion and Beauty Industry
MJYT series stacked type flexo printing machine is also highly proficient at efficiently manufacturing paper bags for the fashion and beauty sectors, including jewelry paper bags, luxury paper bags, perfume paper bags, cosmetic paper bags, and more.
Jewelry Paper Bag
Perfume Paper Bag
Cosmetic Paper Bag
Details Display
 |
|

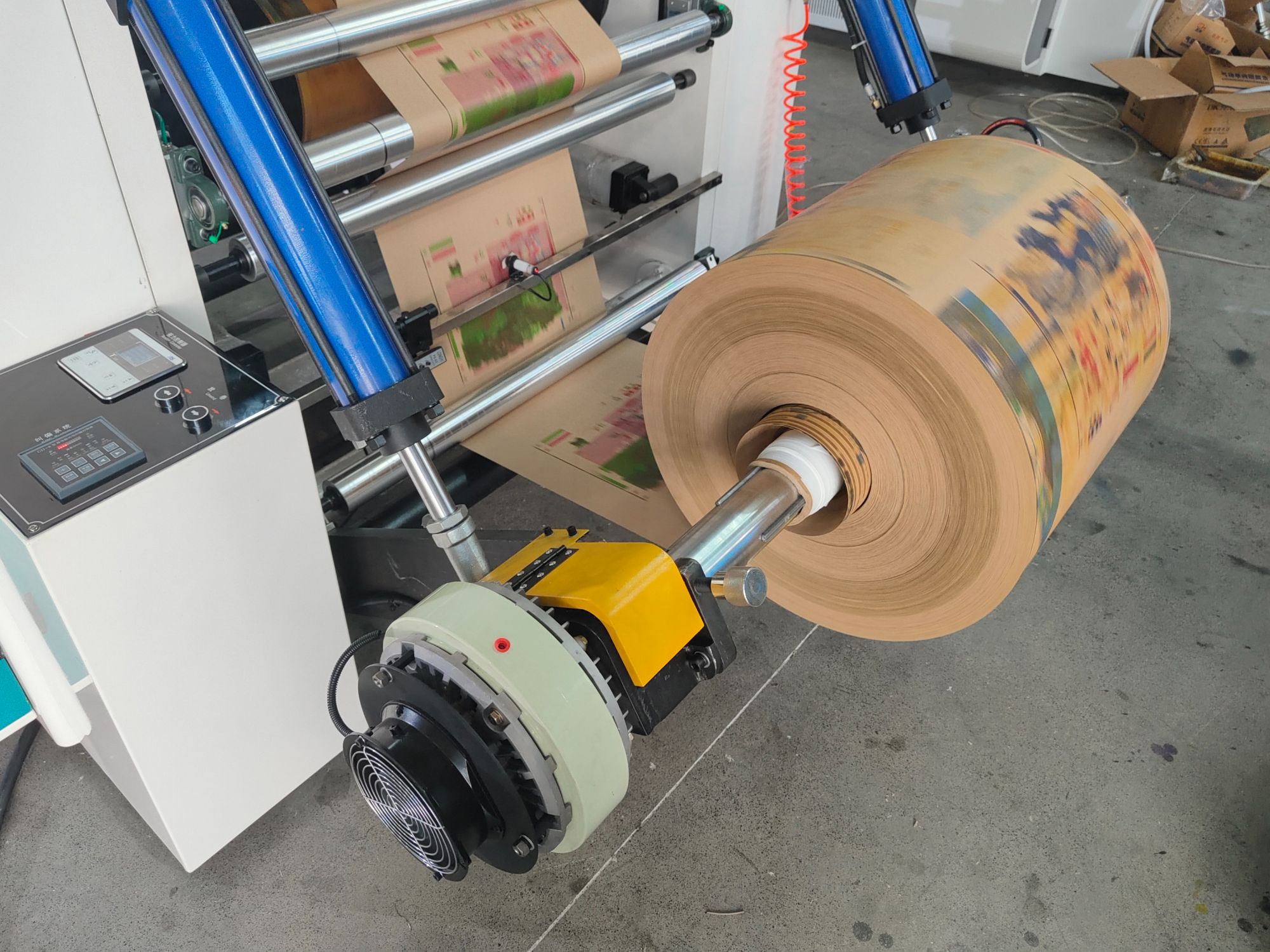

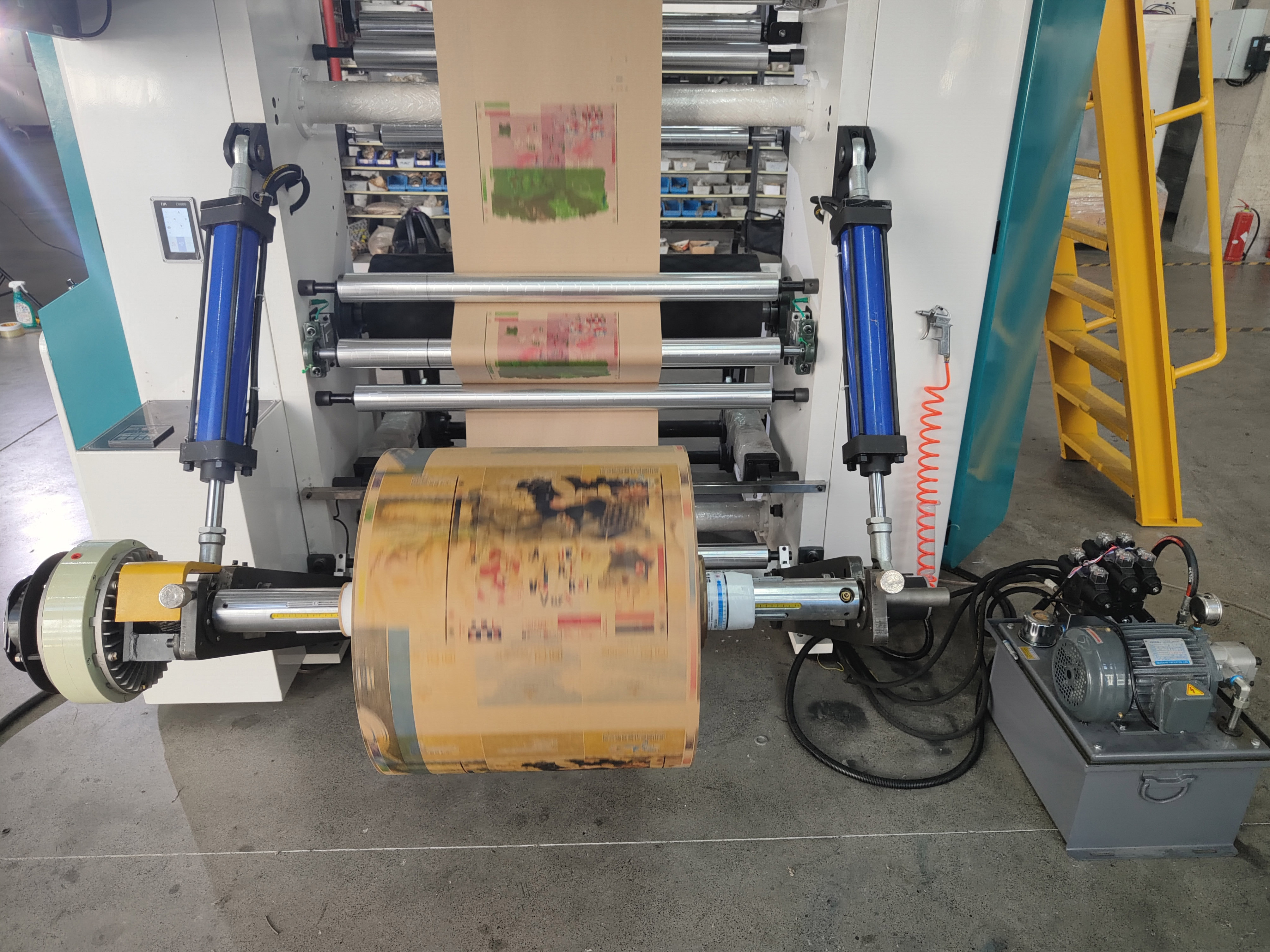

| Unwinding Unit of Stack Flexo Press for Gift Paper Bag | |
|
|

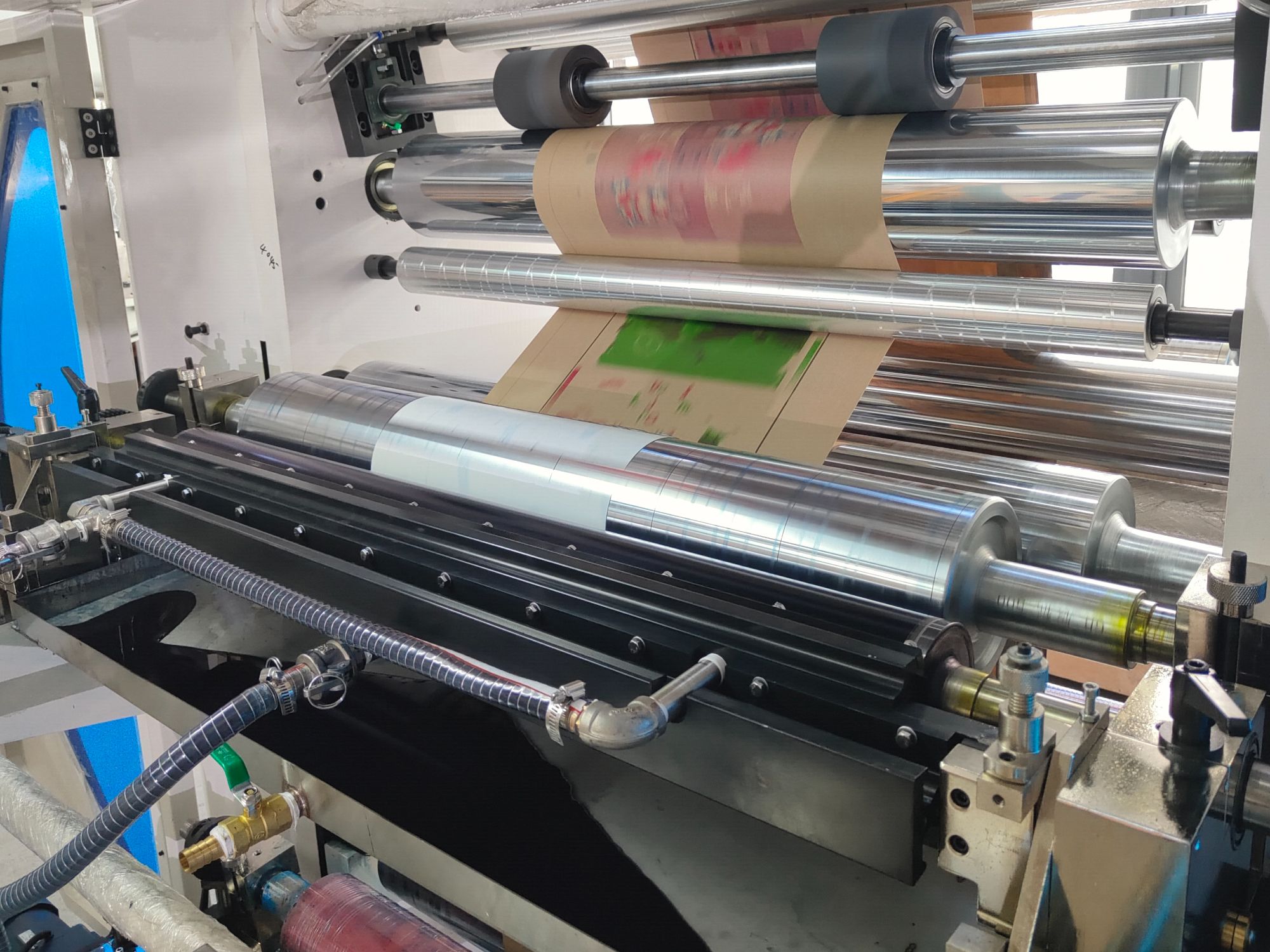

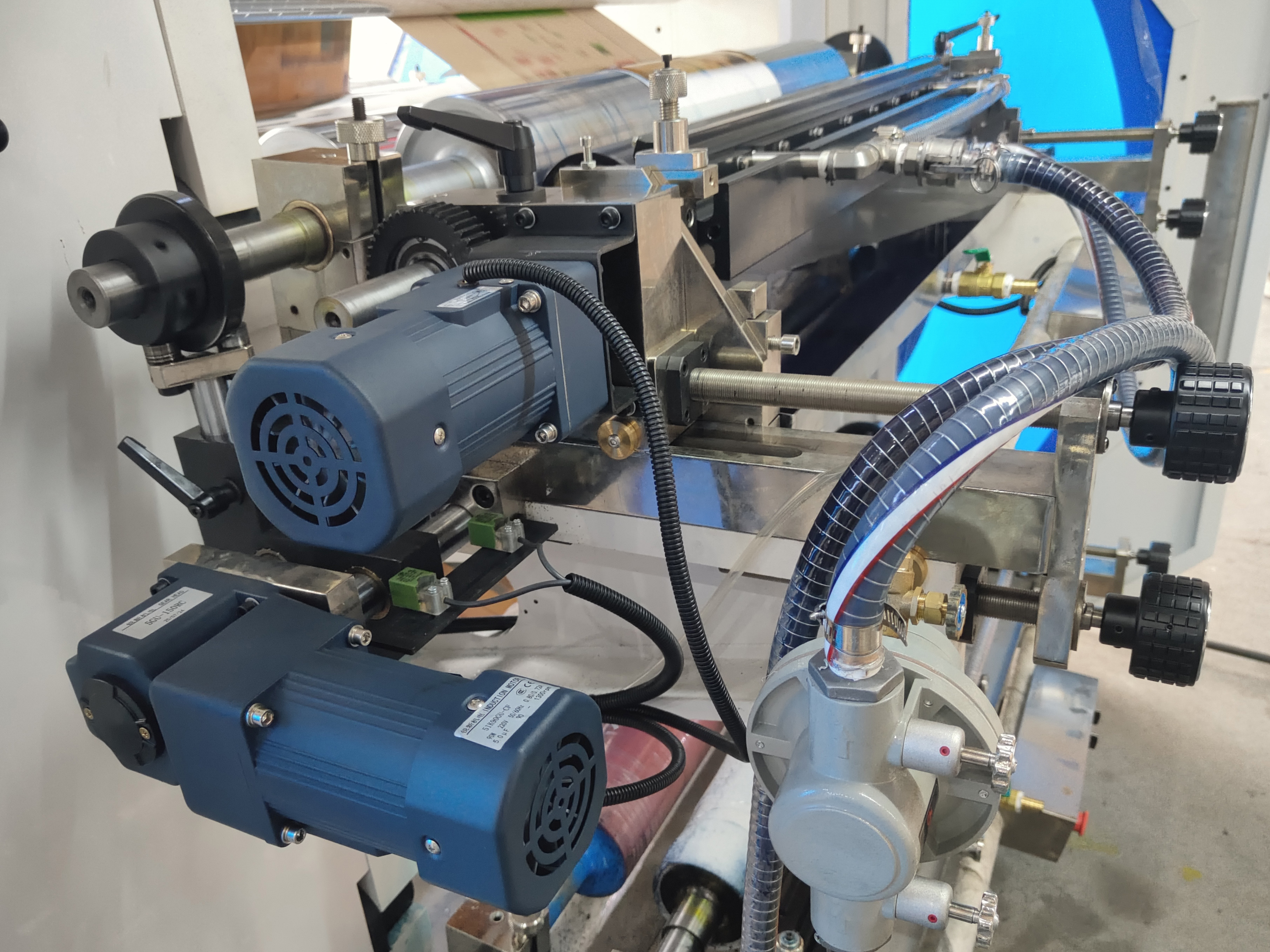

| Printing Unit of Stack Flexo Press for Dried Fruits Ziplock Paper Bag | |
|
|

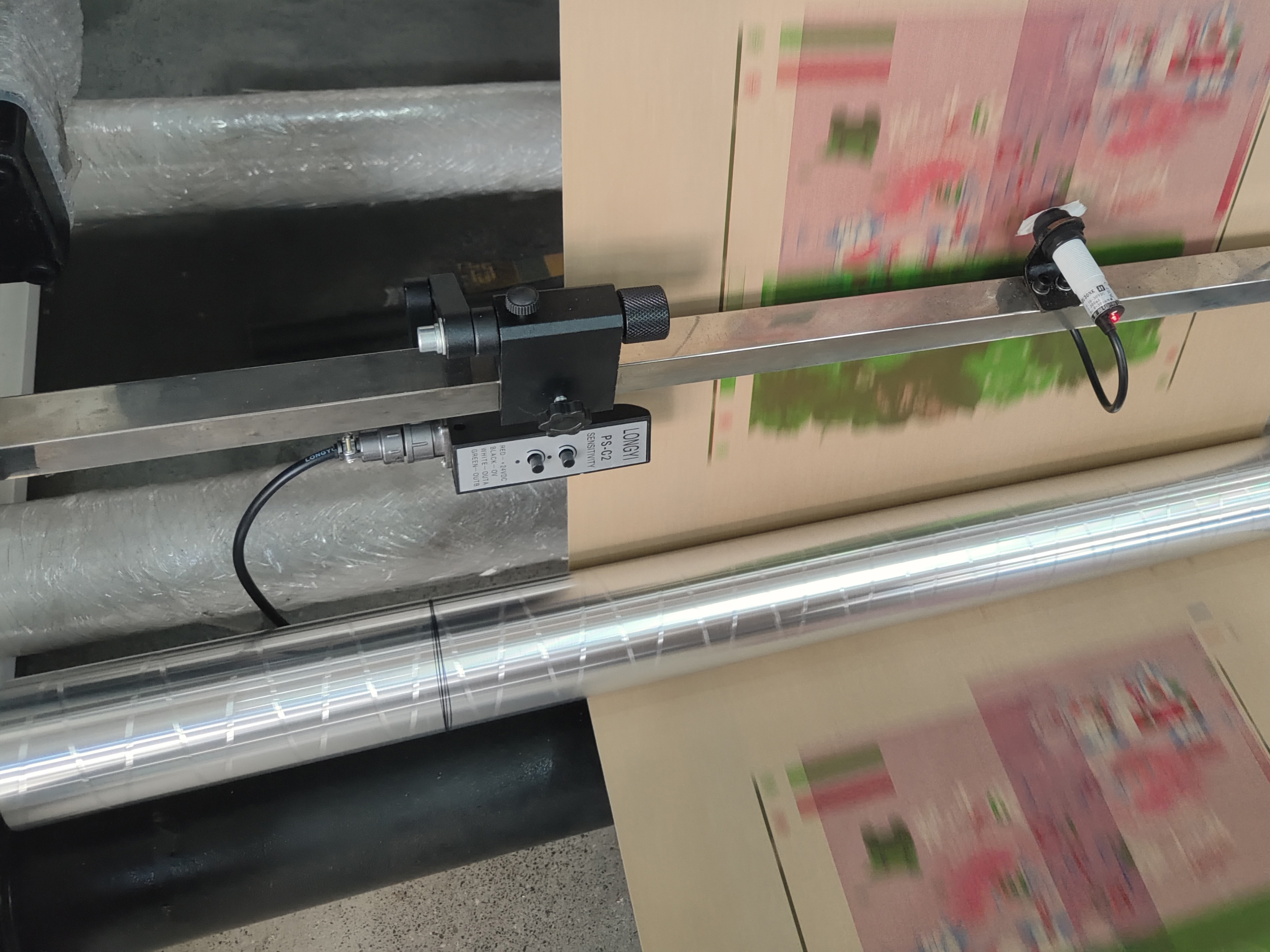

| Video Inspection System of Stack Flexo Printing Machine for Seed Paper Bag | Auto Web Guide System of Stack Flexo Printing Machine for Pet Food Paper Bag |
|
|

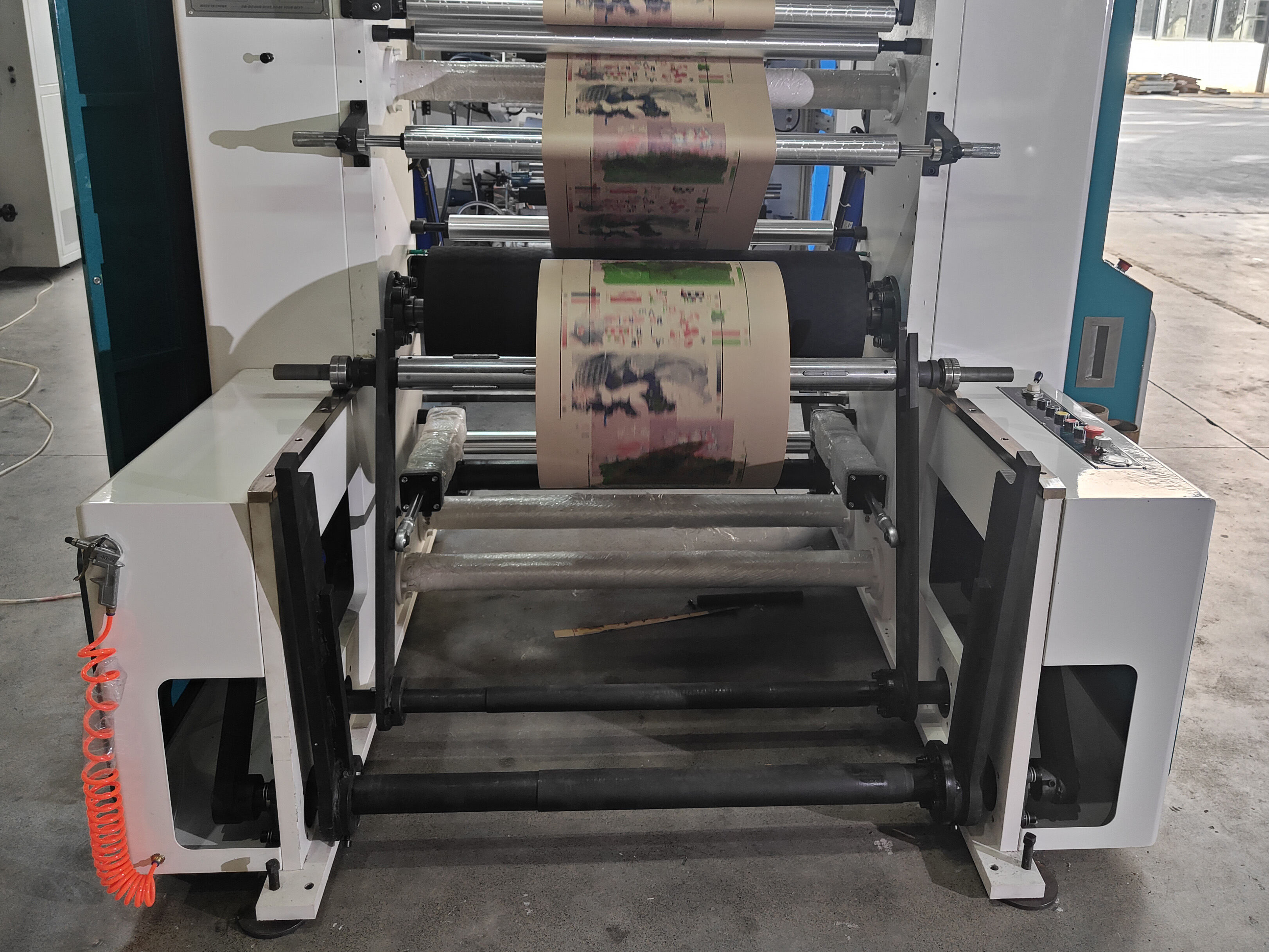

| Drying System and Rewinding Unit of Flexo Press for Fertilizer Paper Bag | |
Q&A
1. How do your stack flexography machine drive the cylinder rollers in these printing units?
The printing unit is made up of plate cylinder, impression cylinder, fountain roller, anilox roller, ink tray, flexible plate and doctor blade. There are two types driving system: timing belts driving and gear motors driving.
Printing Unit of Stack Flexographic Printing Press for Socks Paper Bag
- 2. How to transfer ink from the ink fountain to the printing substrate?
The fountain cylinder pick up ink and pass ink to the anilox cylinder. The the doctor blade removes the excess ink from the smooth non-engraved portions of the anilox roll and the land areas of the cell walls. Anilox cylinder even spread ink in the surface of the flexible plate. Impression cylinder and plate cylinder press substrate and transfer ink to substrate material surface.
Ink Transfer Diagram
- 3. How does your flexo printing press machine improve color registration accuracy?
Color registration system is one of the most factors in the flexo printing machine. We adopt different method to adjust color registration. The best one is full automatic color registration system which can be run in the control panel. You also can choose other method according your products. If your printing pattern is simple, you also can use manual adjustment.
Control Panel of Stack Flexo Printing Machine for Nuts Paper Bag
4. Which type doctor blade install in your stacking type flexographic printing machine?
Our stack type and central drum impression flexo printing machine adopt chamber type doctor blade. Chamber doctor blade system have many advantages, including improved printing quality, reduce ink waste and lower cleaning costs.

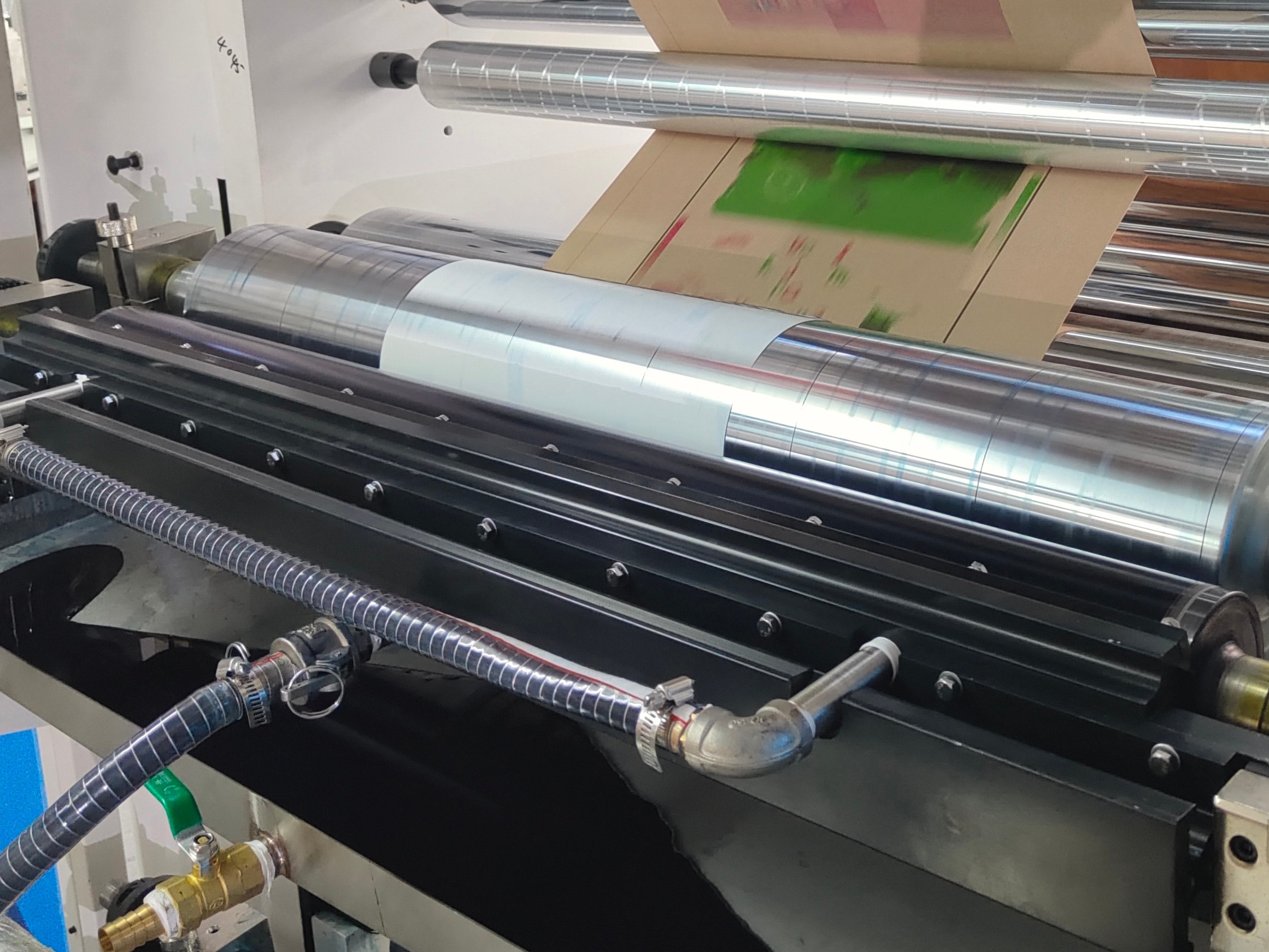

Chamber Type Doctor Blade
- 5. How to choose a set correct ceramic anilox rollers for our products?
Our flexo printing machine adopt ceramic anilox roller as ink transfer roller. You can send your printing pattern AI format file. Our engineers will provide a solution to you according your patter colors and saturation requirements. Because LPI(line per inch) and BCM very impressed printing quality.

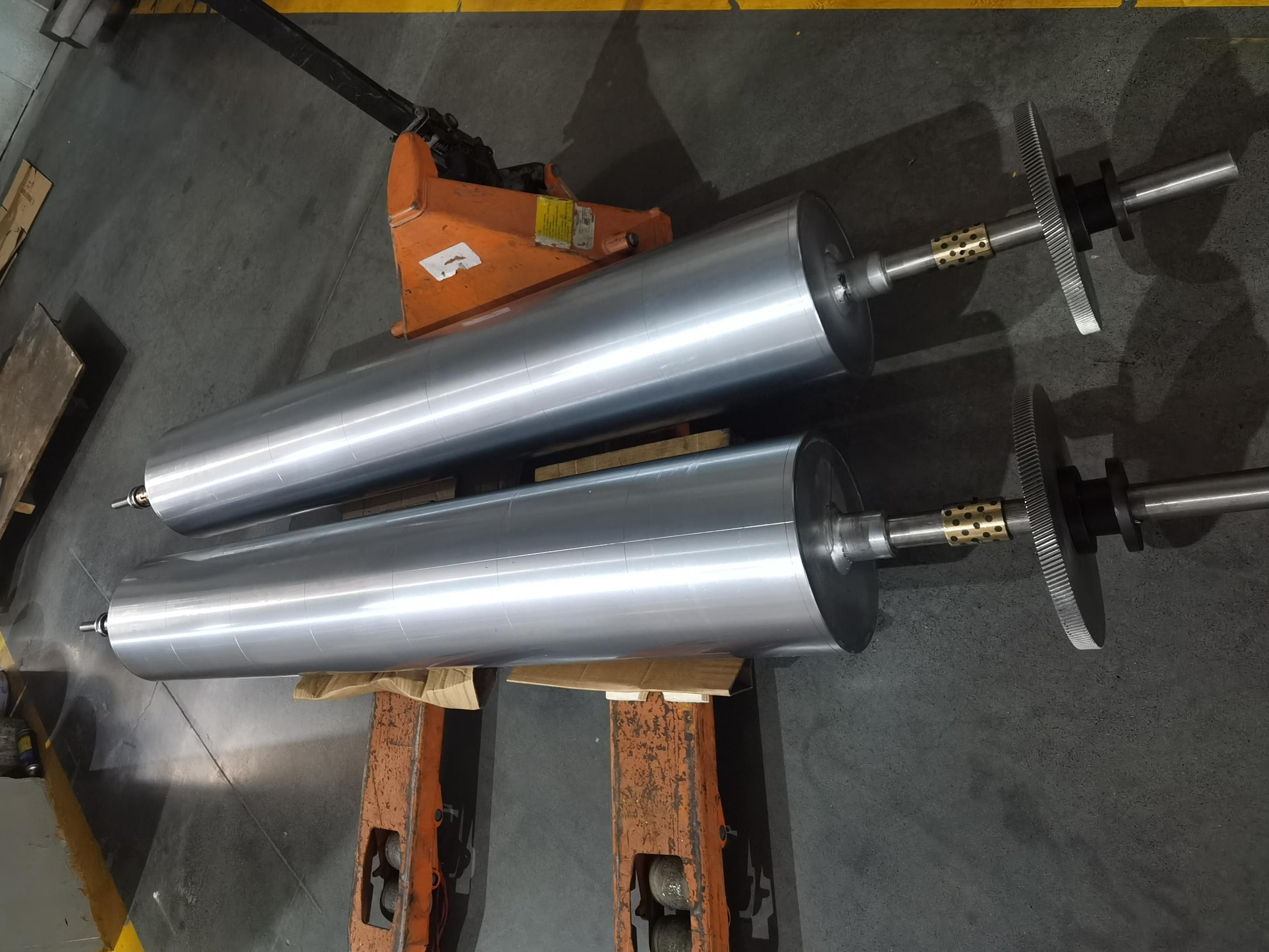

Ceramic Anilox Roller
6. How is the tension of the unwinding and rewinding unit controlled?
Our flexo printing machine adopt magnetic brakes or motors to control unwinder and rewinder tension. Magnetic brake can well control paper rolls and non woven fabric materials tension. If you need print flexible packaging film, we suggest motor control tension. Because motor output tension is more sensitive which is better for pressure sensitive material (such as opp, bopp, pvc film, lamination, self adhesive paper rolls).
Motor of Unwinding Unit
7. Can I add static image inspection system to my flexo printing machine?

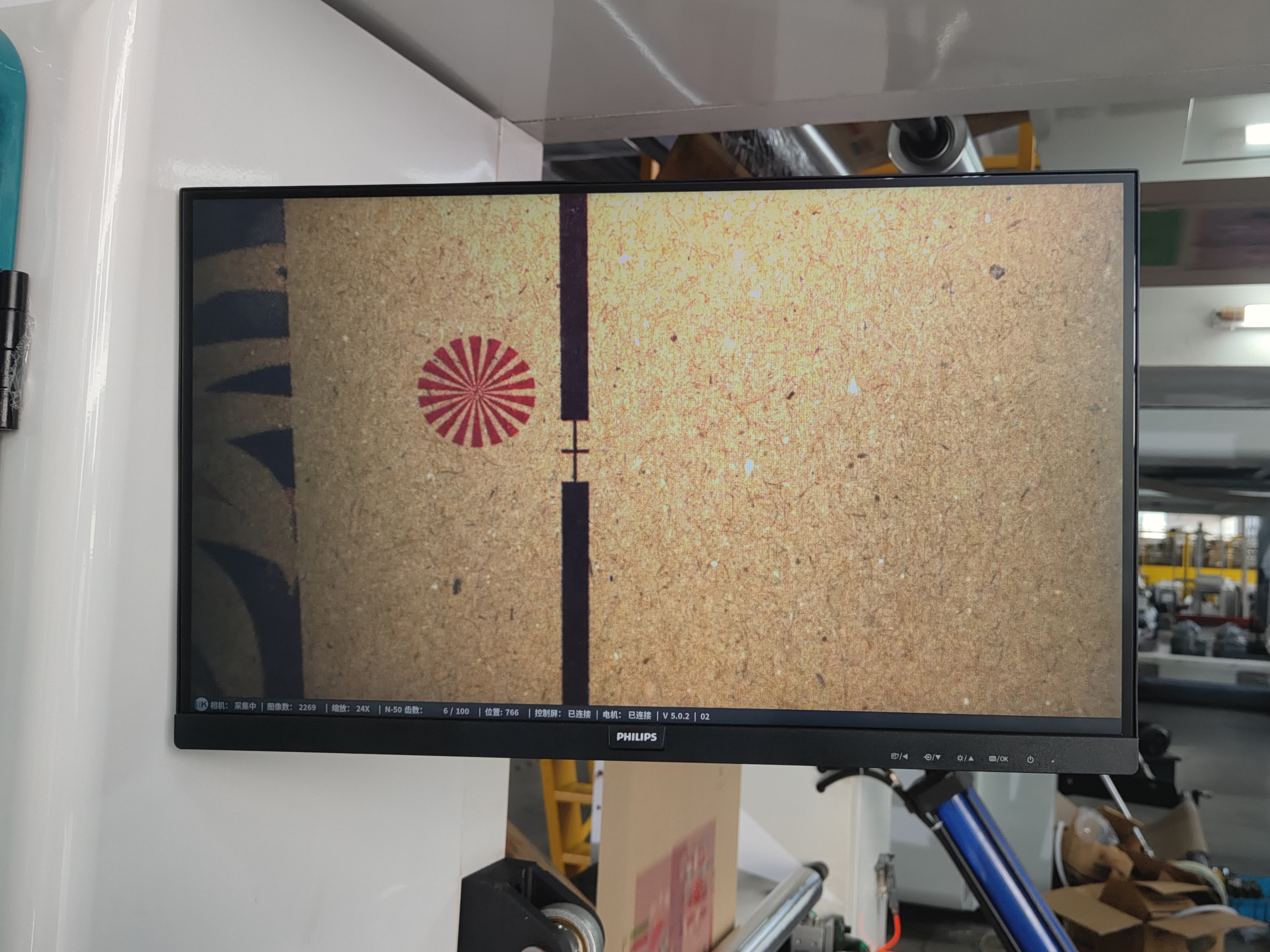

Of course you can. The static image inspection system uses a high-resolution camera to capture the printing image in real time, checking whether the "+" pattern printed by each color printing plate roller on the printing material overlaps to ensure color registration accuracy. The operator checks the screen to see whether the "+" pattern of each color on the printing material overlaps. The static image inspection system also provides real-time feedback and alarms. If there is no overlap, the automatic color registration system can be used to adjust, or the plate roller position can be adjusted manually.
Video Inspection System of Stack Flexo Printing Machine for Candy Paper Bag
- 8. How do I change the plate roller? How long will it take me?
First, you should stop the flexo printing machine to clean up the ink, paper scraps and other debris around the plate roller.
Then, use a wrench to loosen the fixing bolts at both ends of the plate roller, gently tap to separate the old plate roller from the printing roller, and use a lifting device to move the old plate roller out.
Next, put the new plate roller accurately into the installation position and tighten the bolts.
Finally, adjust the pressure between the new plate roller and the printing roller, and start the machine for the first printing. During the process, check whether the plate roller runs smoothly, whether there is any abnormal noise or vibration, and the printing effect.
Usually, it takes 30 minutes to 1 hour to replace the plate roller. If the plate roller is large or the installation position is complicated, it may take 2 hours or more.

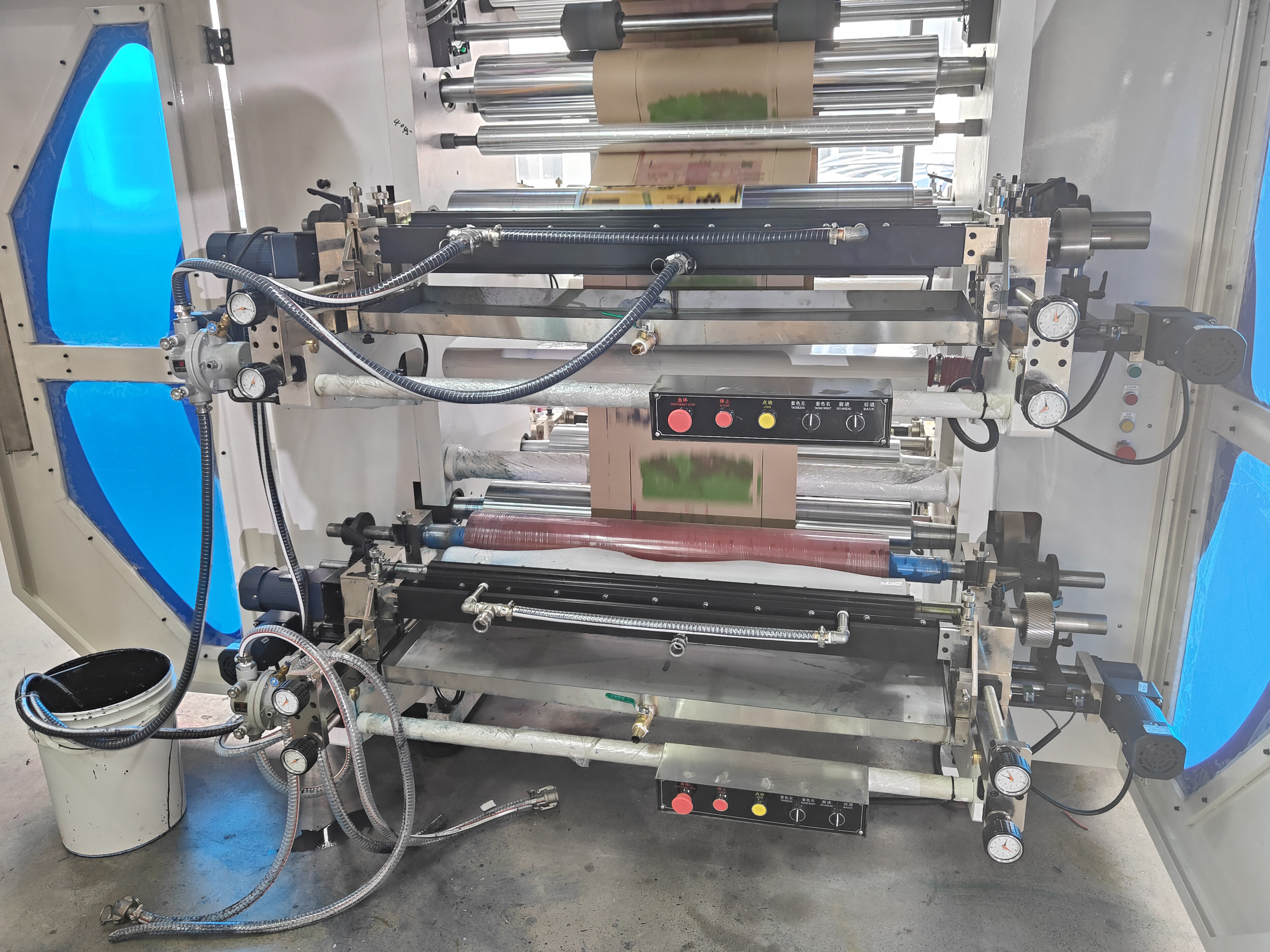

Printing Unit of Stacked Flexographic Printing Machine
9. How can I prevent the anilox roller cells from clogging when my flexo printing machine stops running?
The anilox roller can be cleaned in time by hot alkali solution or ultrasonic cleaning, or by using a pre-inking motor. The pre-inking motor converts electrical energy into mechanical energy to drive the anilox roller to rotate slowly, keep the ink circulating in the anilox roller cells, prevent deposition and drying, and help dissolve and disperse some of the dried ink.

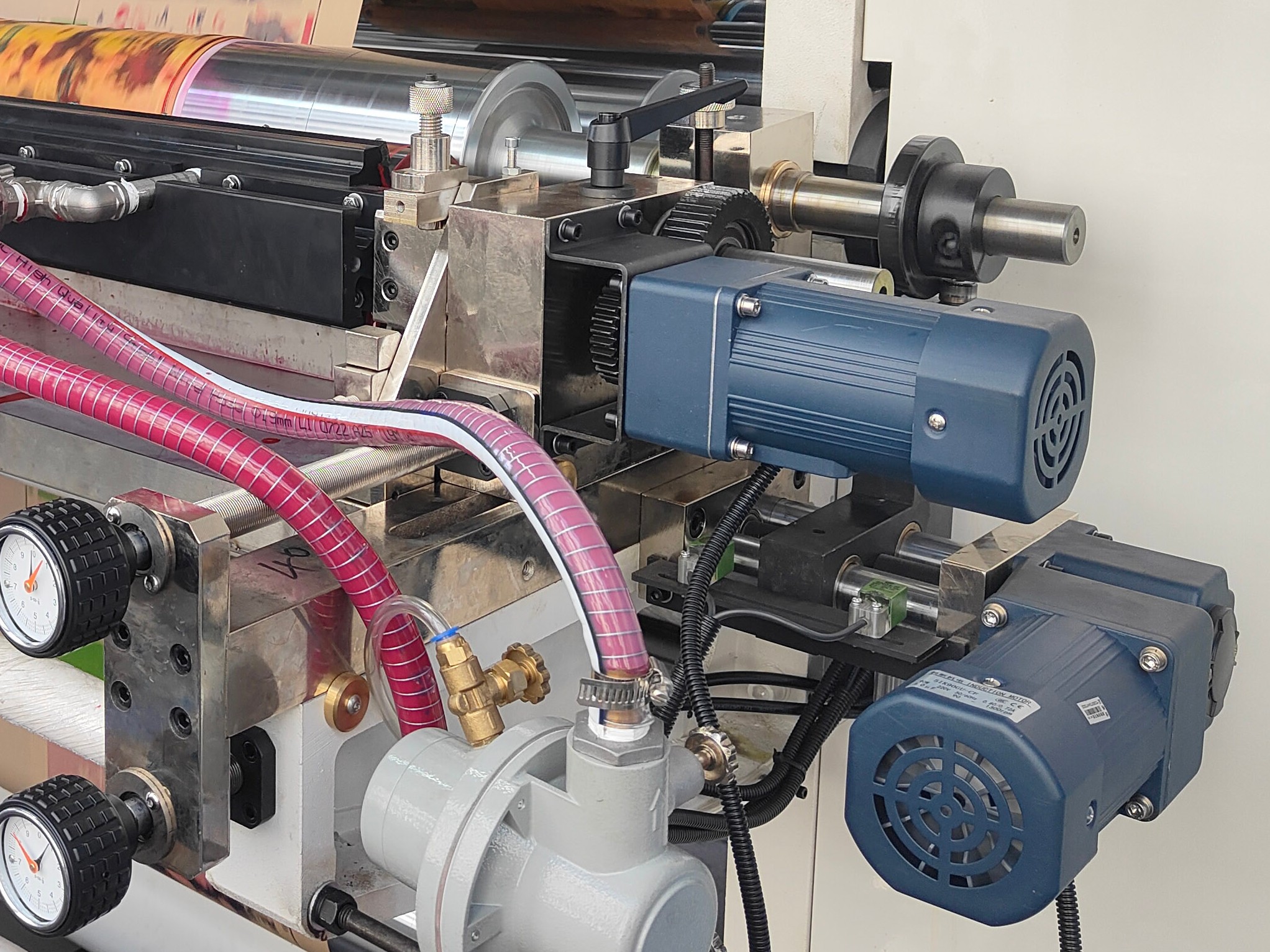

Pre-Inking Motor of Stack Flexo Printing Machine for Document Paper Bag
10. When I need to print on both sides, do I need to add special structure to this machine?
If you choose to print alternately, you need to equip a turn bar. It can be installed between two adjacent printing units, uses rollers and air pumps to flip the material for printing the back side after the front side.
If you choose to print synchronously (printing on both sides at the same time), two independent printing units are required to process the front and back sides respectively.
The specific configuration of the 4-color flexo printing machine is as follows:
1 color group prints the front side, 3 color groups print the back side: suitable for the situation where the front side printing content is less and the back side printing content is more.
2 color groups print the front side, 2 color groups print the back side: suitable for the situation where the front and back printing content is relatively balanced.
The specific configuration of the 6-color flexo printing machine is as follows:
3 color groups print the front side, 3 color groups print the back side: suitable for the situation where the front and back printing content is relatively balanced and more.
2 color groups print the front side, 4 color groups print the back side: suitable for the situation where the front printing content is less and the back printing content is more.
4 color groups print the front side, 2 color groups print the back side: suitable for the situation where the front printing content is more and the back printing content is less.
11. What drying systems can be equip for this model of machine? How do I choose the drying system?
This model machine can be equip with hot air, UV, IR, LED drying system. Different printing materials and inks require different drying systems.

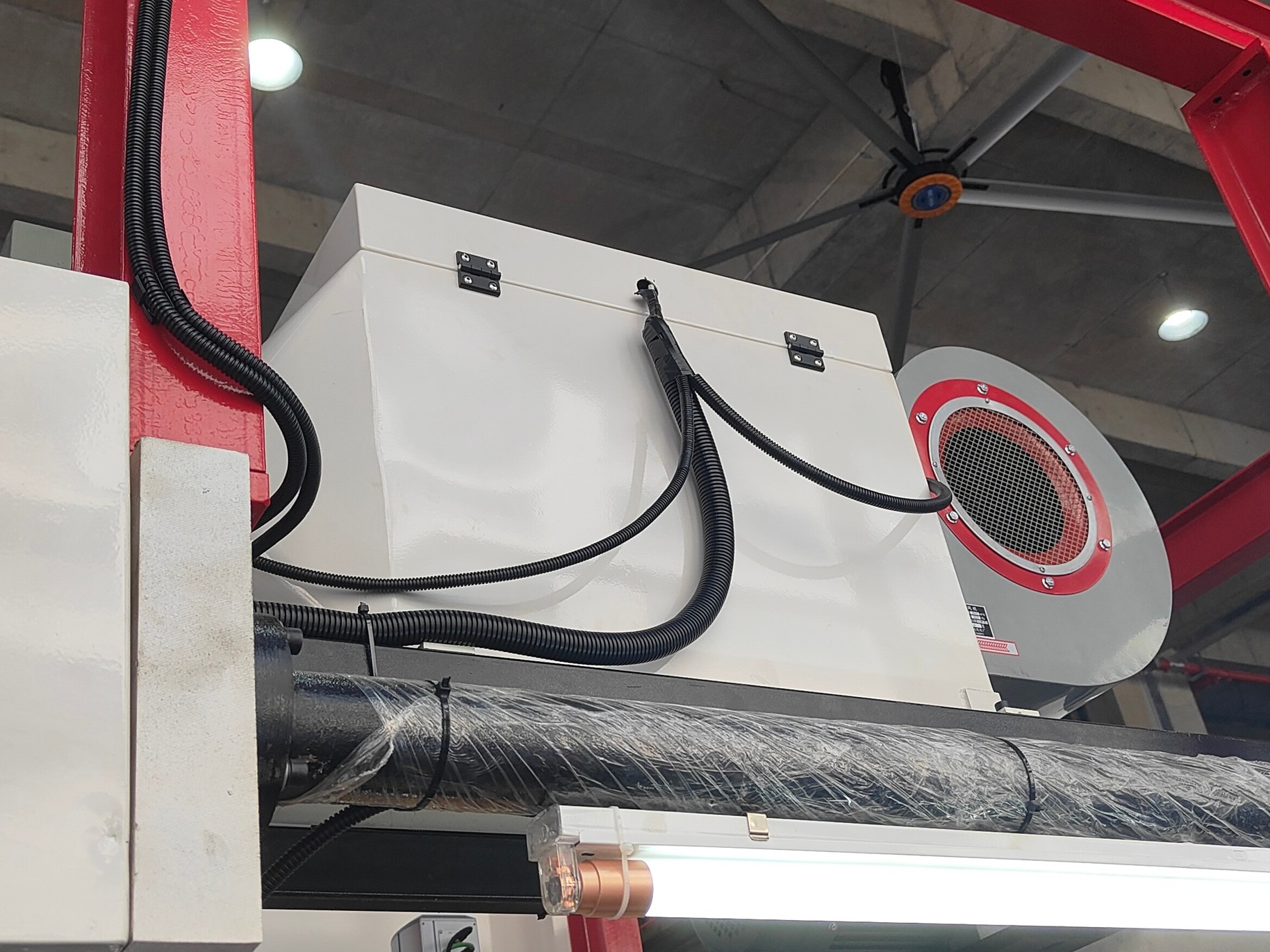

Hot Air Drying System of Stack Flexo Press for Cement Paper Bag
Solvent-based inks are usually dried with hot air drying system or hot air + infrared drying system. Hot air evaporates the solvent and infrared heats the surface. UV inks are usually cured with UV drying system without heating. Water-based inks contain more water and need to be dried with hot air drying system.
Paper materials are generally dried with hot air drying system or hot air + infrared drying system to ensure uniform heating and avoid deformation. Film materials are easy to deform and are often dried with low-temperature hot air drying system. Special materials such as metal foils are often dried with hot air drying system or infrared drying system to prevent damage.
