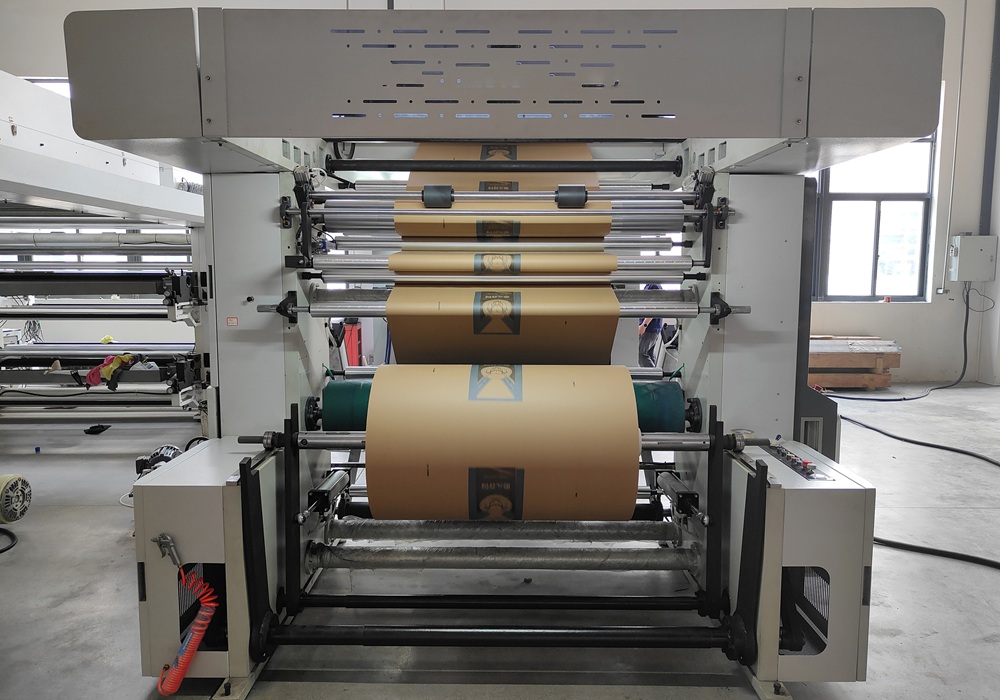

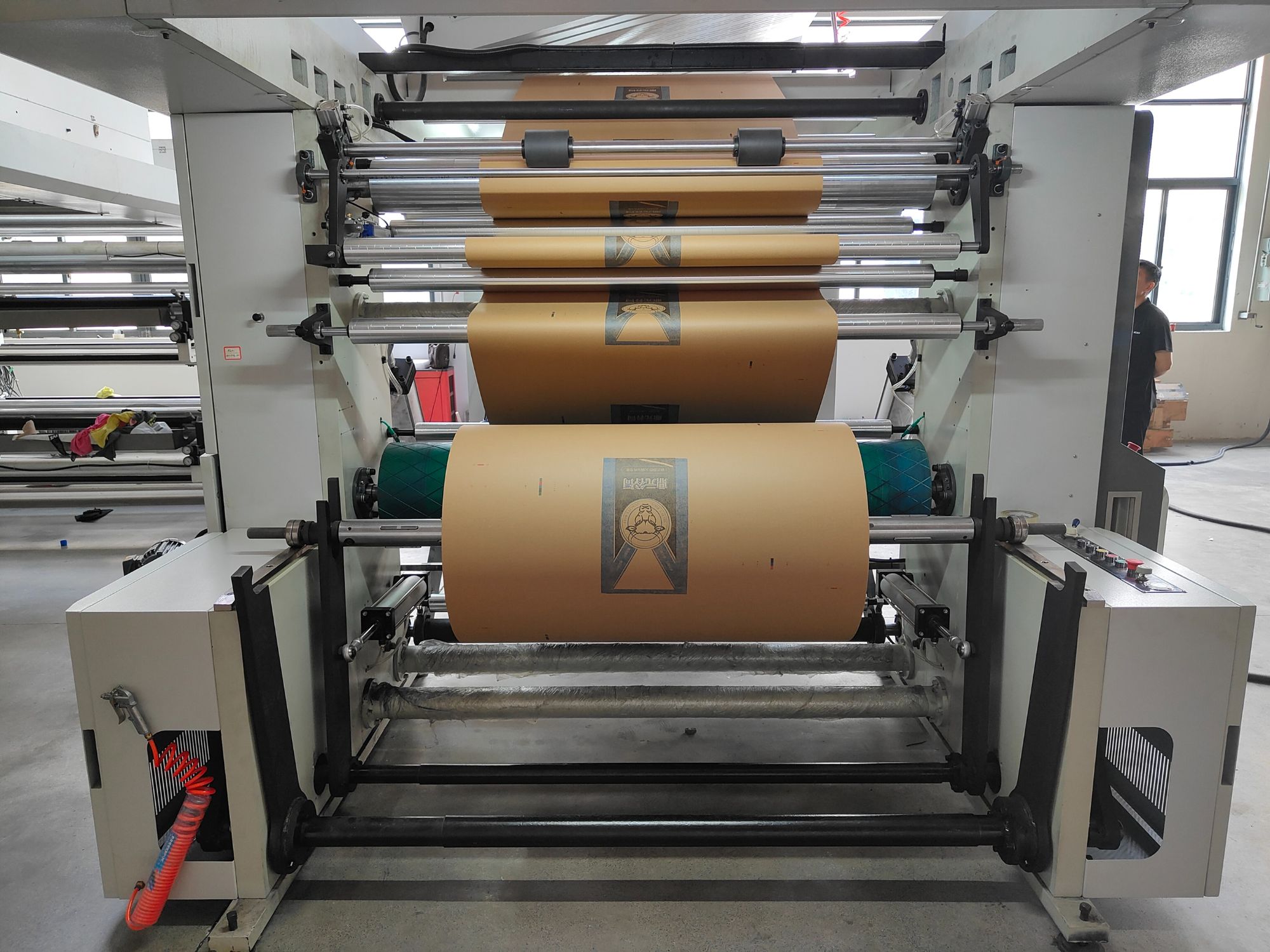

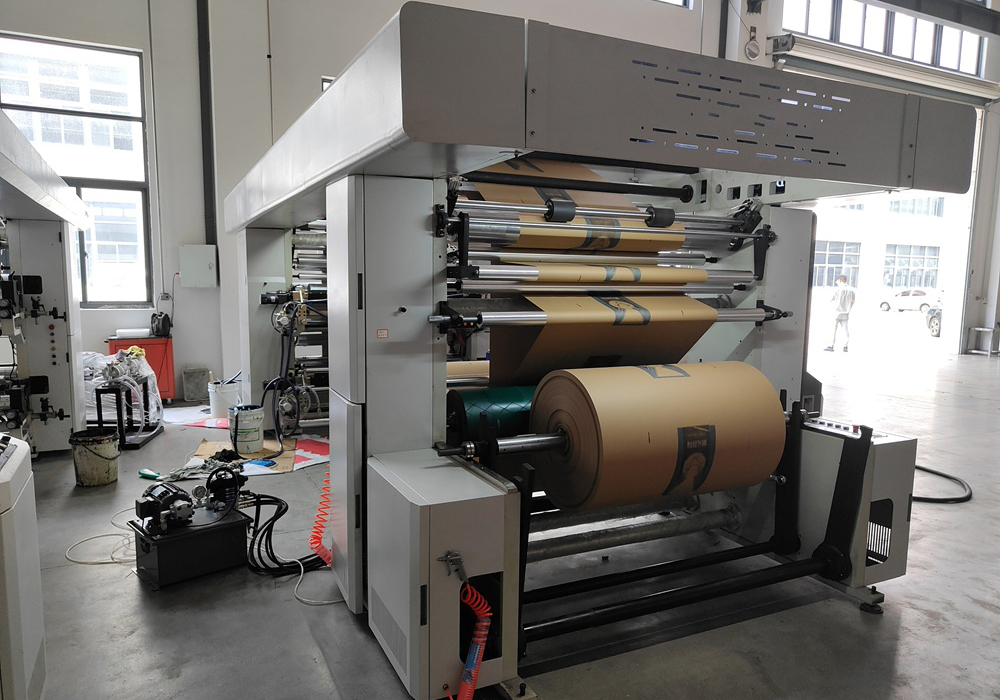

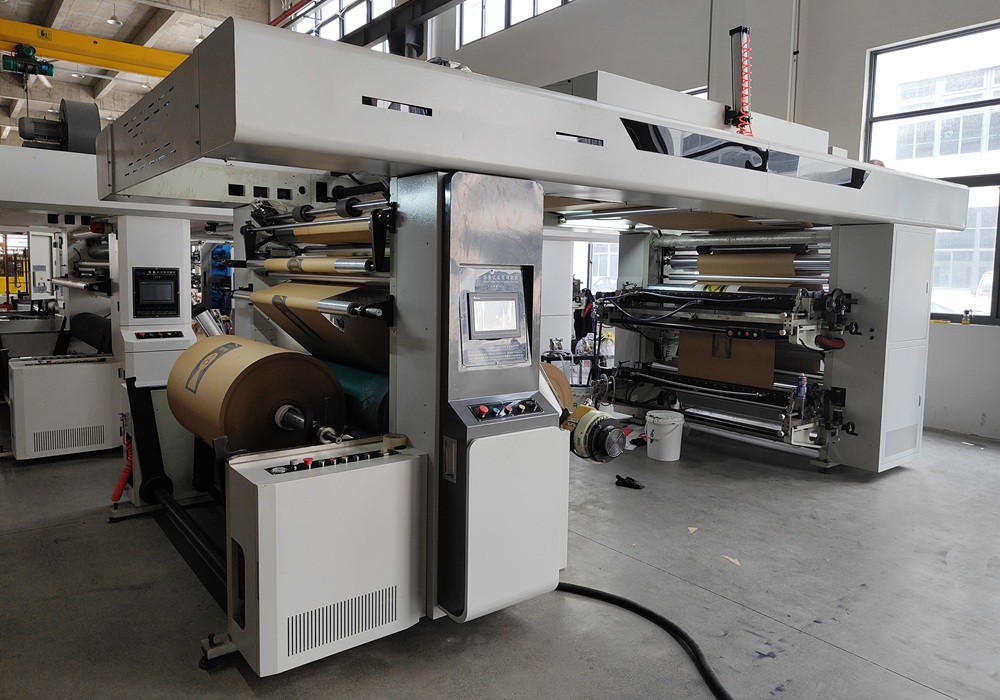

4-Color Stacking Type Flexo Printing Machine for Kraft Paper
MJYT series stacked flexographic printing machine are equipped with stacking printing units for multi-color printing on demand, with high overprint accuracy and high printing efficiency, which is suitable for high-volume production manufacturers. This stacked-unit flexo printing machinery is very suitable for printing film, aluminum foil, paper, non-woven fabrics, breathable film and other materials, and is favored by manufacturers in the fields of food, daily necessities, medical and health care, and so on.
- Description
- Video
- Feature
- Parameters
- Application
- Details Display
- Q&A
Description
MJYT series stacking type flexo press can meet the requirements of different manufacturers for vibrant colors, clear patterns, high speed, high efficiency, low cost and high cost performance. It can be equipped with corona treater, video inspection system, dust cleaner, slitting unit and other devices according to the needs of manufacturers, integrating multifunctionality, high efficiency and convenience. MJYT series stack type flexographic press is very suitable for the printing of coffee paper cup, fries chicken paper box, baking paper, medical sterilization bag, non-woven shopping bag, baby diaper packaging and so on.
Video
Feature
- Printing Speed Up to 158m/min: which is the fastest speed of stacking flexographic printer in the market.
- Optional video inspection system is available to realizeReal-Time Monitoringof printing quality of cupcake paper cup, soup paper bowl, perfume paper box, sanitary napkin packaging, supermarket non-woven bag, etc.
- Longer than other manufacturers' assured after-sales protection:Warranty Period of 2 Years.
- High-Quality Ceramic Anilox Roller: with water-based ink printing, ceramic anilox rollers have a life span of 5-8 years; with ink printing, ceramic anilox rollers have a life span of 3-5 years.
- The Frame With CNC Machining Treatment: prevent rust and prolong the life of the flexographic machine.
- The Chrome-Plated Treatment of the Plate Roller: more wear-resistant and corrosion-resistant. Its surface finish and dimensional accuracy are higher.
- 35mm Doctor Blade Cavity Depth: thicker than other manufacturers, less likely to leak ink. It can also extend the service life of the anilox roller, so that tea milk paper cup, gift paper bag, fruit packaging paper, sandwich wrapping paper, chocolate wrapper and other products can obtain excellent printing quality.
- 142mm Diameter Printing Roller: Larger than those made by other manufacturers, which makes the printing pressure more even and more stable for products such as DIY paper gift wrapper, wine bottles wrap bag, candy bar wrapper, take out paper food container, etc.
Parameters
| Model | MJYT Series |
| Max Printing Width | 570-1570 mm |
| Print Repeat Range | 280-1000 mm |
| Colordecks | 4-6 colors |
| Mechanical Speed | 50-150 m/min |
| Printing Speed | 50-130 m/min |
| Precision | ±0.15 mm |
| Rewinding Diameter | 1200 mm |
| Unwinding Diameter | 1200 mm |
Application
Case-1: Paper and Paper Container
Stack type flexo printer is suitable for all kinds of paper and paper containers printing, such as beverage paper cup, ice cream paper bowl, hamburger paper box, coffee bean kraft paper packaging bag, biscuit wrapping paper and book cover. The ink transfer system provides precise control of ink thickness, ensuring even color and clear patterns on the paper and paper container. Stacked type flexography machine maintains excellent print quality even when the curvature of the paper surface changes.
Salad Paper Bowl
Pet Food Paper Bag
Paper Jewelry Box
Case-2:Flexible Packaging
Stacking type flexographic printing machine is are widely used in the printing production of flexible packaging including film( milk powder packaging bag, candy packaging bag, adult diaper packaging, trash garbage bag, etc.), aluminum foil( potato chips bag, dried food packaging zipper bag, biscuit packaging bag, etc.) and so on.
Coffee Tea Sachet Packaging Film
Sanitary Napkin Packaging Bag
Chocolate Wrapper
Case-3:Non-Woven Fabric
Stacked type flexo printing press is favored by nonwoven manufacturers. Stacking flexographic printing equipment is usually applied to lazy wipe, non woven shopping bag, disposable bath towel, baby diaper backsheet, protective clothing, bed sheet, etc.
Supermarket Non-Woven Bag
Surgical Gown
Disposable Bathrobe
Details Display
 |
|

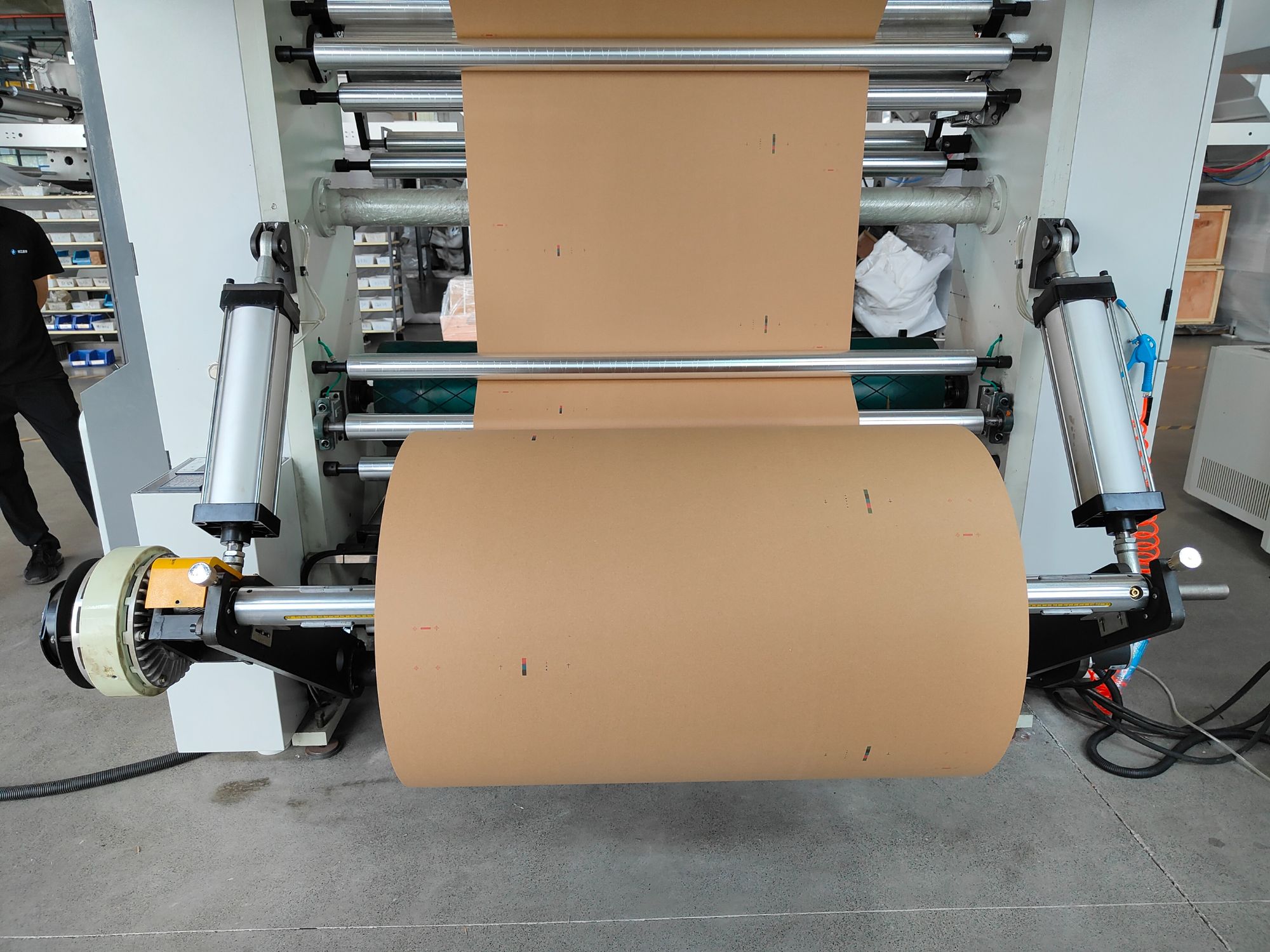

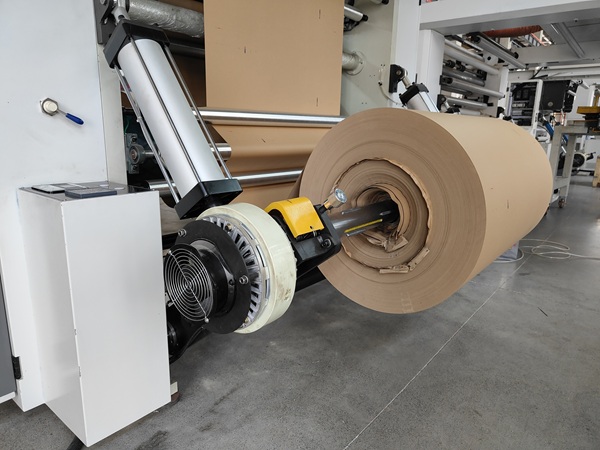

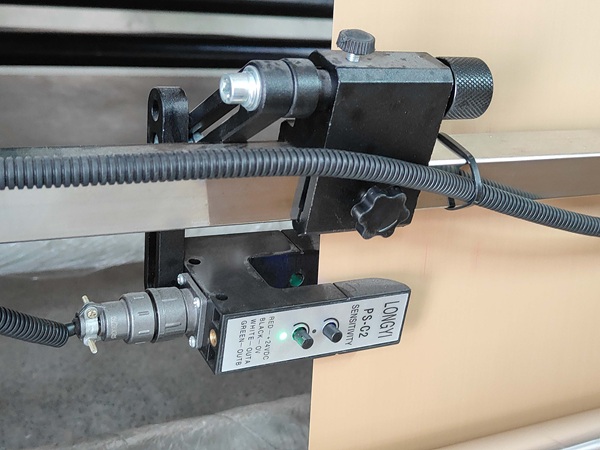

| Unwinding Unit of Stack Flexo Press for Tea Wrapping Paper | Auto Web Guide System of Stack Flexo Printing Machine for Sugar Wrapper |
|
|

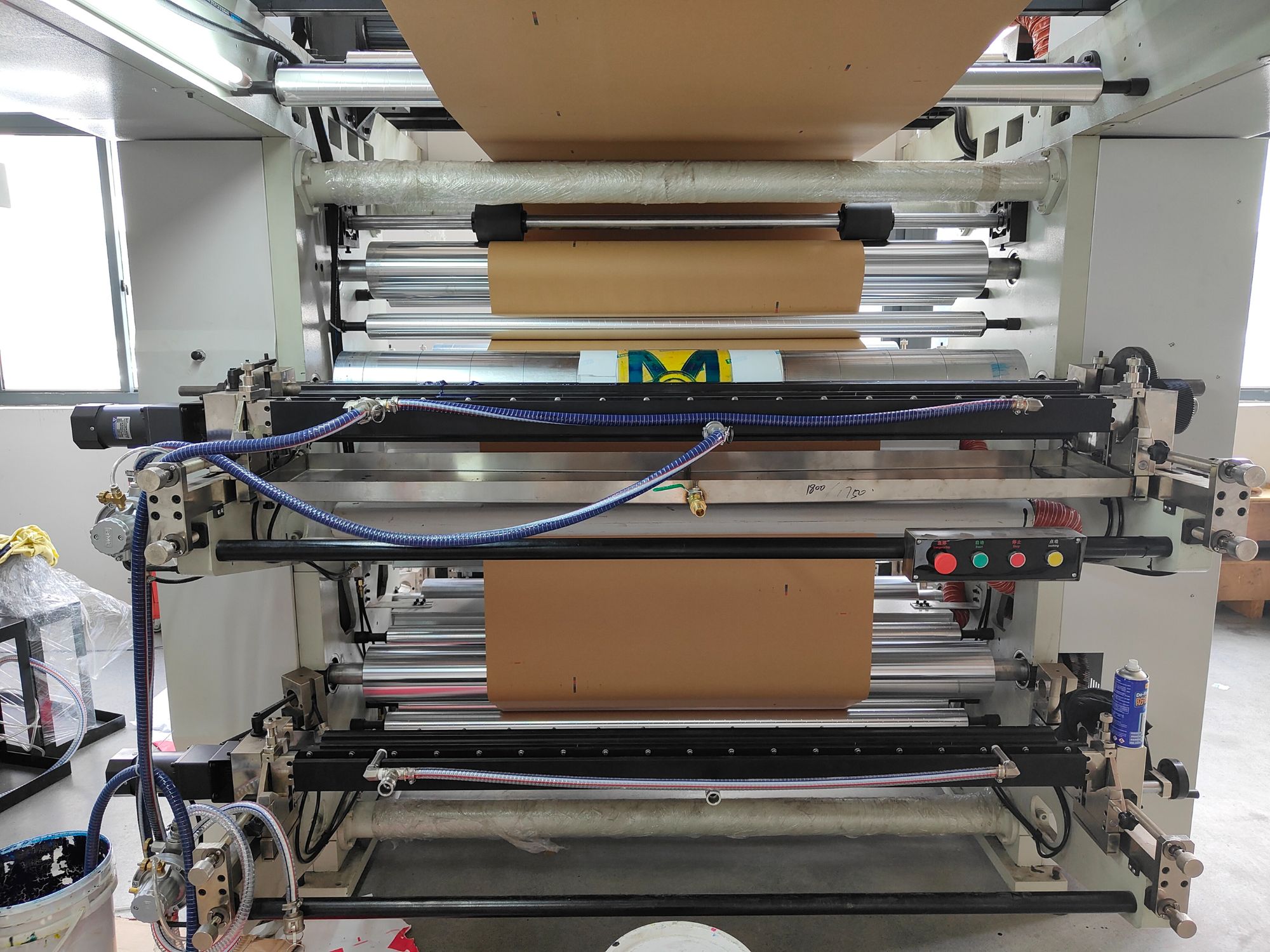

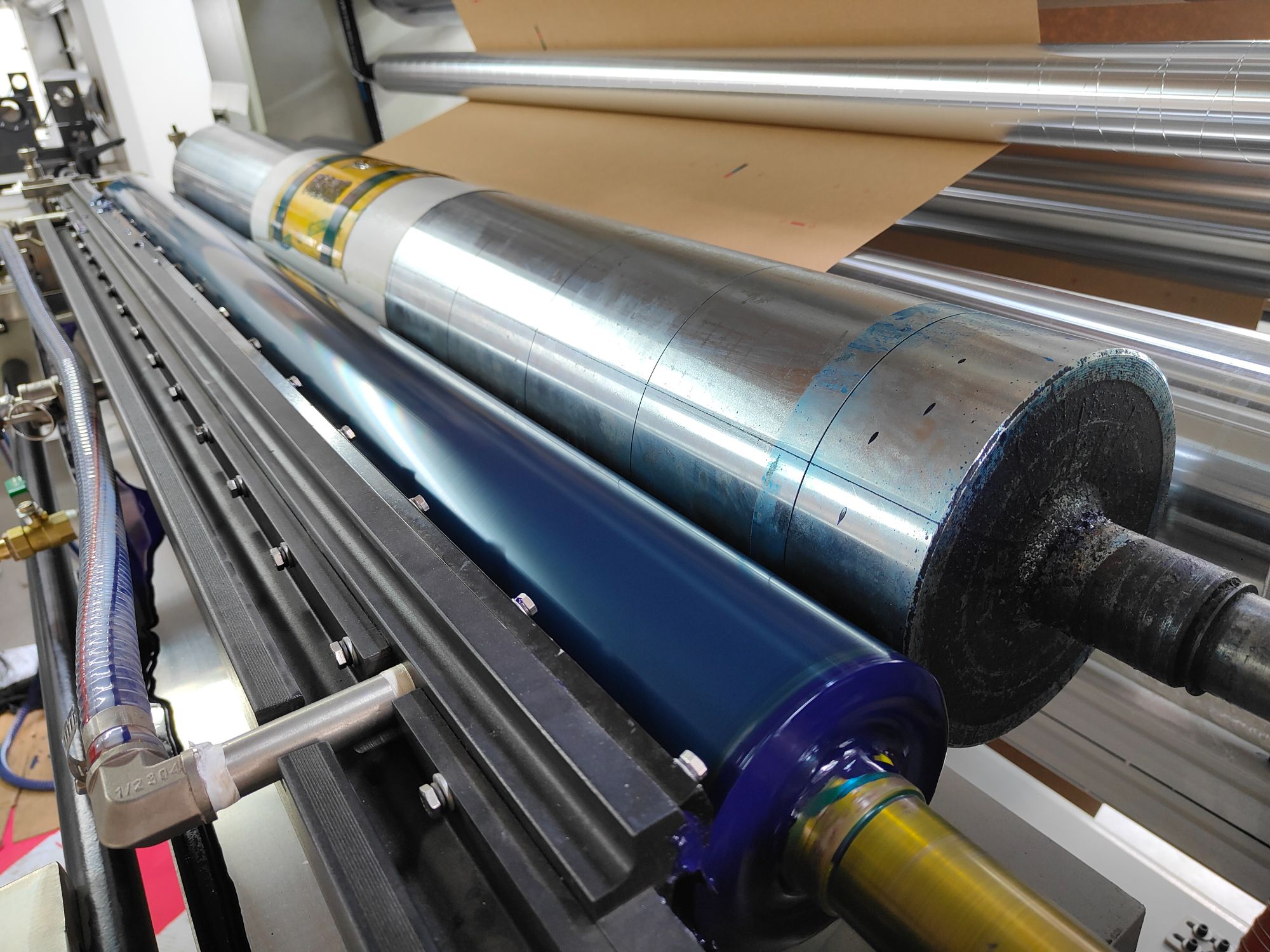

| Printing Unit of Stack Flexo Press for French Fries Wrapping Paper | |
|
|

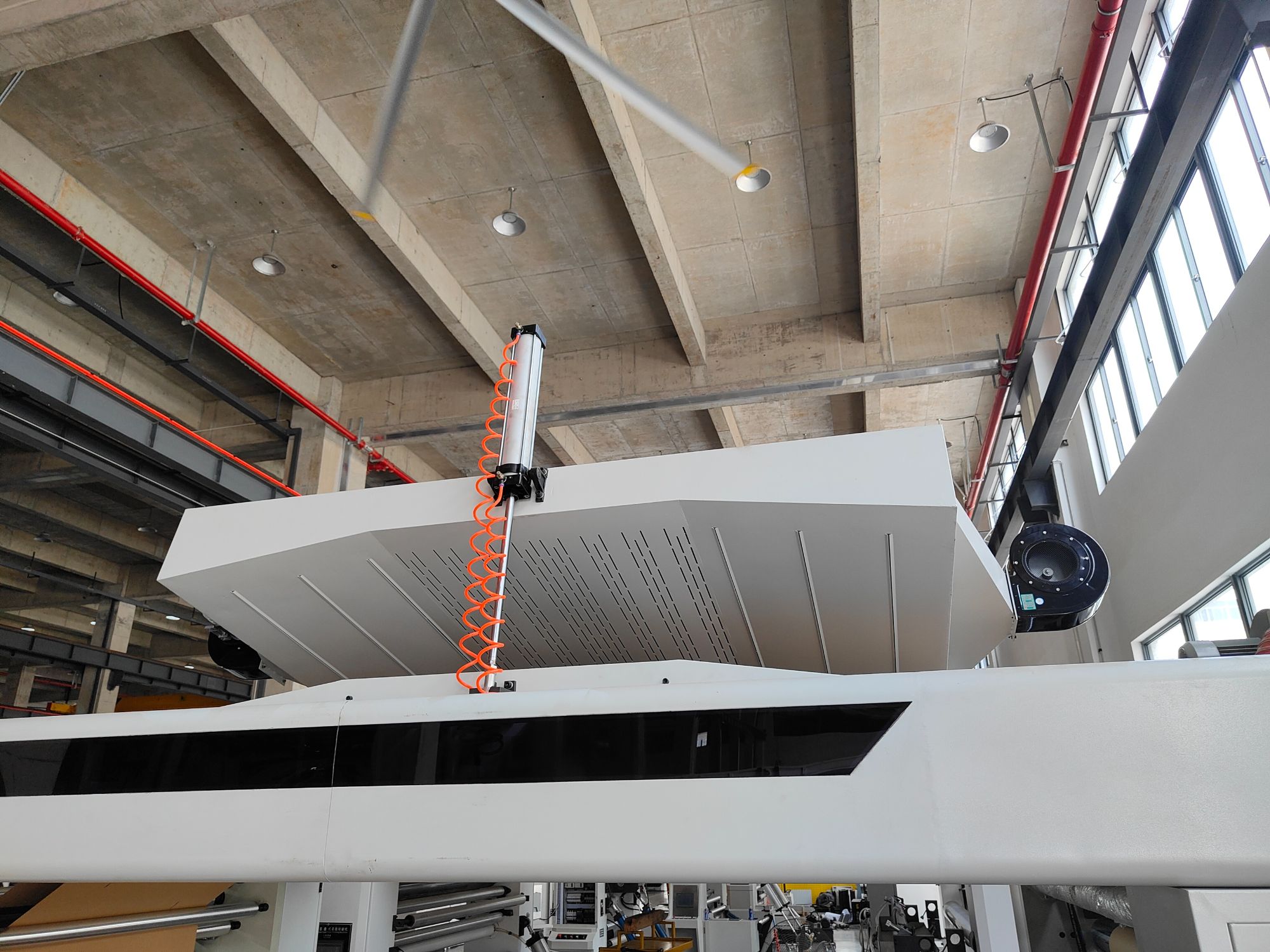

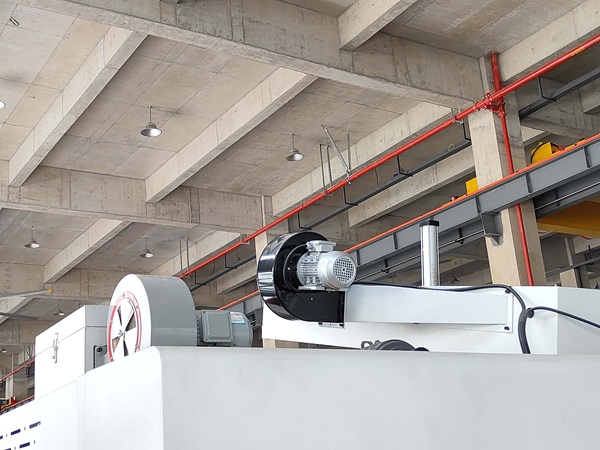

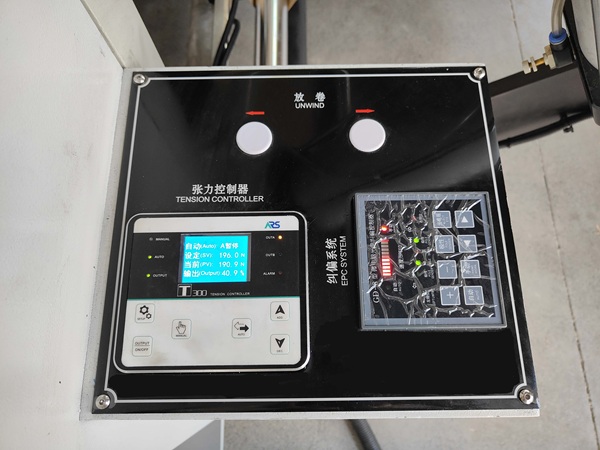

Drying System of Stack Flexo Printing Machine | Tension Controller of Stacking Flexographic Printer |
|
|

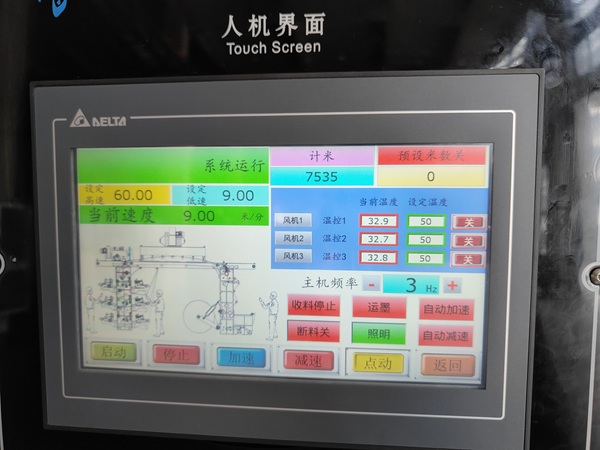

| Control Panel of Stacking Flexo Printing Machine for Sandwich Wrapper | Rewinding Unit of Stacked Flexo Press for Pizza Wrapping Paper |
Q&A
1. How to choose a suitable stacked flexographic printing press?
When choosing a stacking flexographic printing equipment, the following factors need to be considered:
·Printing Requirements: select the appropriate number and configuration of printing units according to the printing requirements of the product (such as the number of colors, printing speed, and material type).
·Substrate: make sure that the flexo printing press can adapt to the materials you plan to use (such as film, paper, non-woven fabrics, etc.).
·Printing Quality Requirements: consider printing accuracy, overprint accuracy, and ink drying effect, etc.
·Budget: choose flexo printing equipment of appropriate price according to the economic strength of the enterprise, while considering the cost performance of the equipment.
2. How to transfer ink from the ink fountain to the printing substrate?
Plate Roller: used to install flexographic printing plates.
Anilox Roller: used to transfer ink and control the thickness of ink. Printing Roller: transfers the ink on the plate to the printing material.- 3.How is the registration accuracy of a stack-type flexographic printing press ensured?
·High-Precision Printing Unit Design: each printing unit is equipped with precisely machined components, including the printing roller, anilox roller, and plate roller, to ensure concentricity and operational stability.
·Registration Control System: an advanced registration control system, utilizing optical or electronic sensors, continuously monitors registration deviations and automatically adjusts the position of the print units in real time.
·Tension Control System: a stable tension control system maintains consistent web tension throughout the printing process, preventing registration errors caused by substrate stretching or shrinking.
·Mechanical precision: all mechanical components, such as the transmission system, gears, and bearings, are manufactured and assembled with high accuracy to ensure smooth and stable operation.
- 4.How to choose a ceramic anilox roller for a stacked flexographic printer?
The ink transfer roller of our stacking flexo printing machinery uses a high-quality ceramic anilox roller. The printing quality is greatly affected by LPI (lines per inch) and BCM (lines per inch). You can consult in advance, send your printing pattern AI format file and tell us your printing substrate and related information. Our engineers will customize a one-to-one solution for you based on your pattern color and saturation.
5. Can I monitor print quality in real time on my stacking flexography presses?
Of course you can.

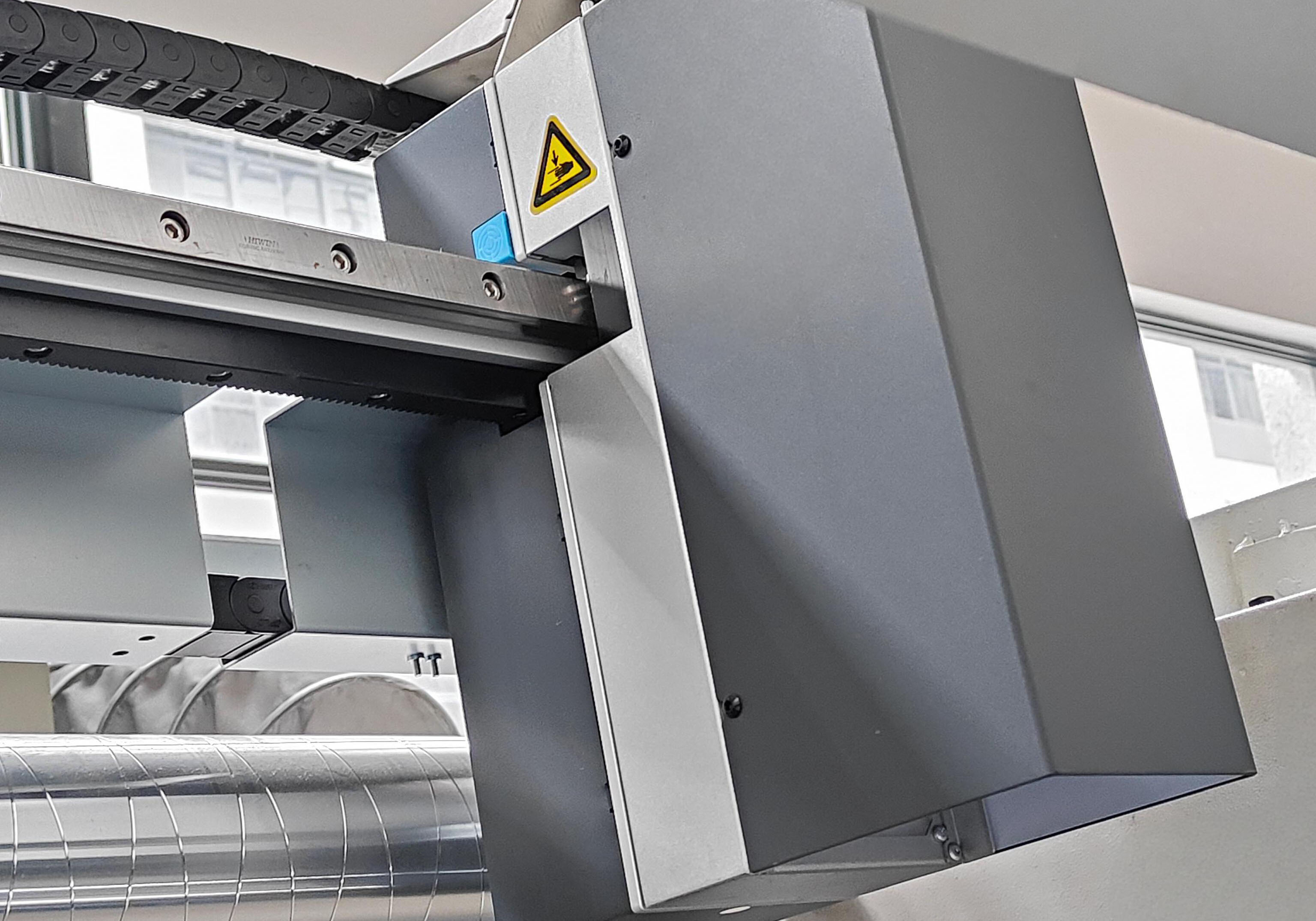

The static image inspection system captures real-time printing images with a high-resolution camera to monitor color registration. It checks whether the "+" marks from each color plate roller align correctly on the material. The operator observes the screen to confirm alignment. If misalignment is detected, the system gives real-time alerts. Adjustments can then be made automatically through the color registration system or manually by repositioning the plate rollers.
- 6. How is the environmental performance of stacked flexo printing presses?
Stack type flexo printing equipments support the use of environmentally friendly inks, such as water-based inks and UV inks, which meet environmental protection requirements. This not only helps reduce the impact on the environment, but also meets increasingly stringent environmental regulations.

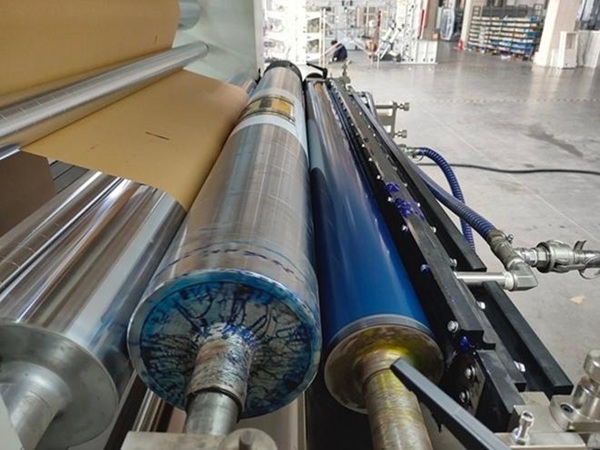

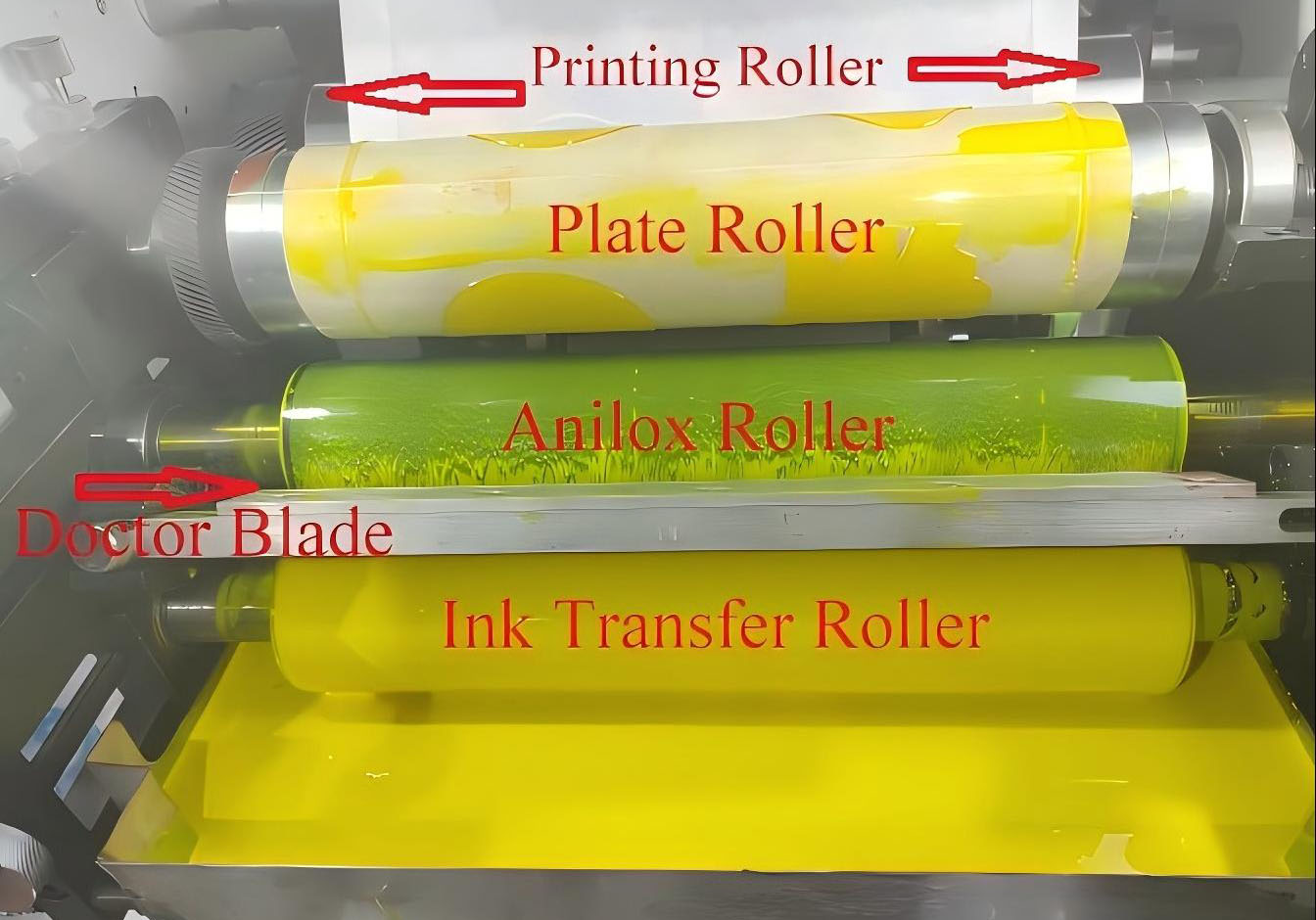

The Ink transfer roller draws ink and transfers it to the anilox roller. The doctor blade scrapes excess ink from the smooth non-engraved portion of the anilox roller and from the cell walls. The anilox roller spreads the ink evenly over the surface of the plate roller. The printing roller and plate roller emboss the substrate and transfer the ink to the surface of the substrate.
