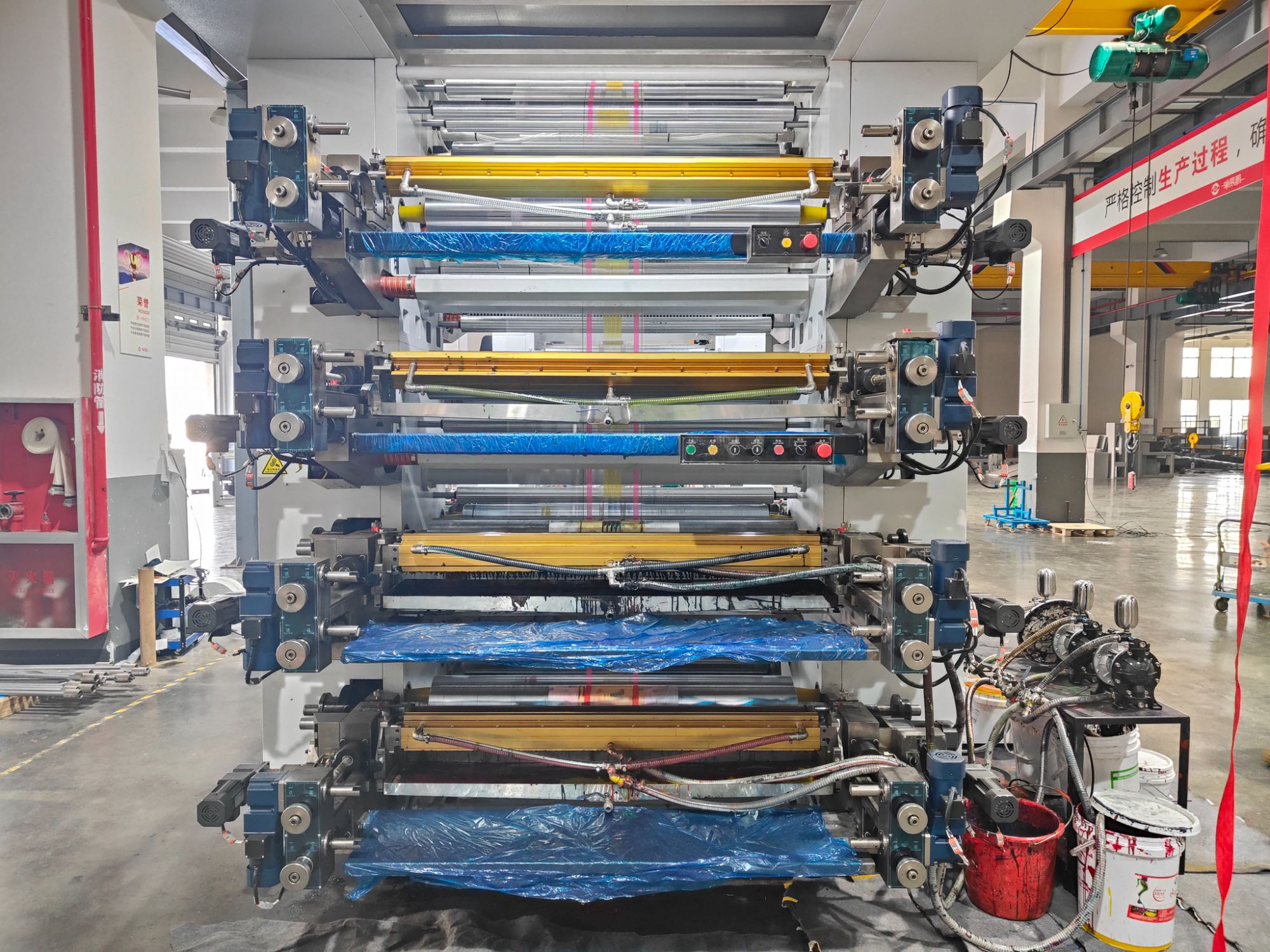

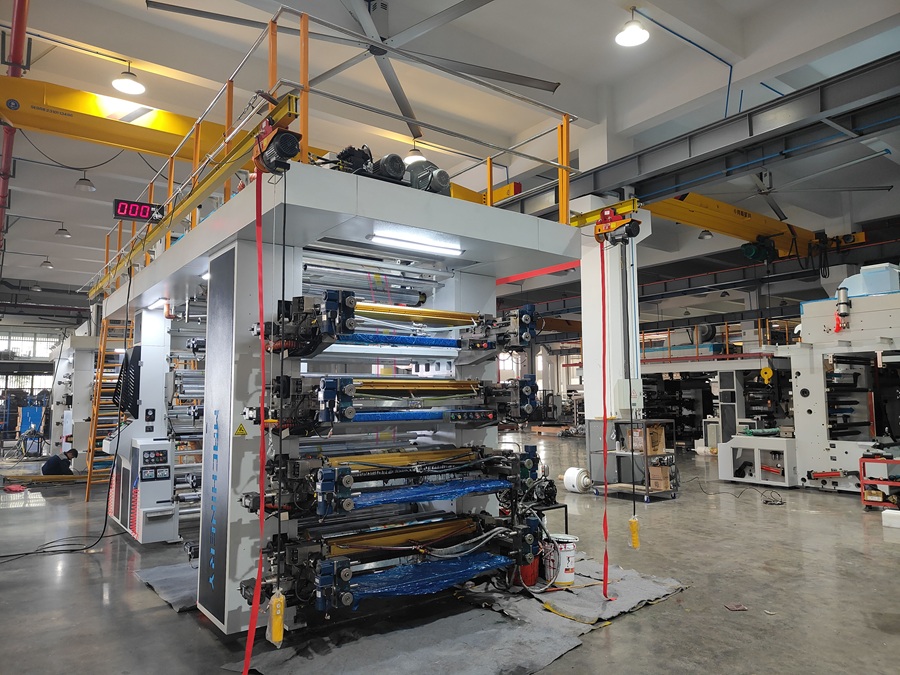

Stacked Flexo Printing Machine With Dual Unwinding and Rewinding Unit for Sandwich Packaging Film
MJYT series stack type flexo press is designed to achieve top-notch printing quality on different materials, ensuring remarkable precision and efficiency. It caters to various industries, including food packaging, beverage packaging, luxury packaging, and more. This machine guarantees consistent, vivid, and durable print results, thereby enhancing the presentation of products. It is especially well-suited for applications such as snack cookie paper bags, coffee paper cups, milk tea powder packaging film, wedding candy wrappers, baking food wrapping paper, bed sheet, medical pouches, disposable surgical gowns and so on.
- Description
- Video
- Feature
- Parameters
- Application
- Details Display
- Q&A
Description
MJYT series stack type flexo printing machine is an extremely adaptable printing option, capable of working with various printing materials and ink varieties. The dual unwind/rewind design, when used with a turn bar or paper path design, enables continuous printing on both sides, suitable for high-value-added products such as food packaging, composite films, and labels. It is particularly adept at manufacturing diverse paper bags, such as those for fast food, takeout, bread, tea and sugar, nuts, fruit, and beyond. Engineered for reliability and user-friendliness, our flexographic printing technology enhances production efficiency and caters to the increasing market demand for custom packaging. This machine offers outstanding performance and consistently fulfills all your printing requirements of paper, film and non-woven fabric.
Video
Feature
- Dual Unwind/Rewind: allows for unwinding/rewinding switching without stopping the machine or with a short stop, reducing roll change time and significantly improving the overall machine's effective capacity.
- Premium Impression Cylinder:ensures durability and stability. An optional constant temperature control system prevents thermal expansion, thereby enhancing printing accuracy for products such as coffee packaging film bags, seed film bags, dog food film bags, biscuit film bags, etc.
- Print on Both Sides: reduce manpower, greatly improve the working efficiency of flexographic printing presses, and shorten the printing production cycle of printing materials.
- Real-Time Monitoring of Printing Quality: optional video inspection system, realize electric fine-tuning, ensure high-precision and high-efficiency printing production.
- CNC Machine Frame and Nickel-Plated Printing Unit Position:prevent rust and extend machine life.
- Oxidized Aluminum Roller: long-term contact with ink will not cause discoloration.
- Advanced Tension Control System: monitors and adjusts web tension to ensure stable material handling, minimize printing defects, and maintain high-quality, precise print registration for film used in applications such as pet food film bags, mooncake film bags, shortbread film bags, and dried cranberries film bags.
- Quick-Change Printing Plate: minimizes downtime, increases operational efficiency, and makes it convenient for operators to switch between different print jobs.
- Independent Drying System: it uses electric heating and the temperature is adjustable, so as to obtain high-quality and vibrant printed output.
Parameters
| Model | MJYT Series |
| Max Material Width | 600/800/1000/1200/1600 mm |
| Max Printing Width | 550/750/950/1150/1550 mm |
| Suitable for Material | Paper / Plastic Film / Non-Woven Fabric |
| Printing Length | 280-1000 mm |
| Color Registration Accuracy | ±0.25 mm |
| Machine Speed | 50-150 m/min |
| Printing Speed | 50-120 m/min |
| Voltage | 380v 3p |
| Max Material Diameter | 1000 mm |
Application
Case-1: Food Wrapping Paper
The model stack type flexo printing machine is widely used to print food wrapping paper, such as burger wrap paper, sandwich wrap paper, bread wrap paper, chicken nuggets wrap paper, fries wrap paper and so on. It can use environmentally friendly water-based inks that meet food packaging safety standards, helping food packaging products gain a foothold in the high-end market.
Hamburger Wrapping Paper
Fried Foods Wrapping Paper
Fries Wrapping Paper
Case-2:Paper Container
Paper cups, paper bowls, paper boxes used to hold ice cream, soup, coffee, juice, soybean milk, rice, pizza, noodles, etc., which are seen in our daily life, can be printed with the model stack type flexo printing machine. It can precisely control the ink thickness to ensure clear patterns and uniform colors of paper cups, and maintains good printing results even where the surface curvature of the paper container changes.
Paper Cup
Paper Bowl
Paper Box
Case-3:Paper Bag
Paper bags have a wide variety of patterns, often with brand logos, promotional information, etc., which requires high printing accuracy and color variety. This printing machine can complete multi-layer printing at one time, with bright colors to attract consumers' eyes. It meets the needs of brand enterprises to enhance their brand image.
Gift Paper Bag
Shopping Paper Bag
Luxury Paper Bag
Details Display
 |
|

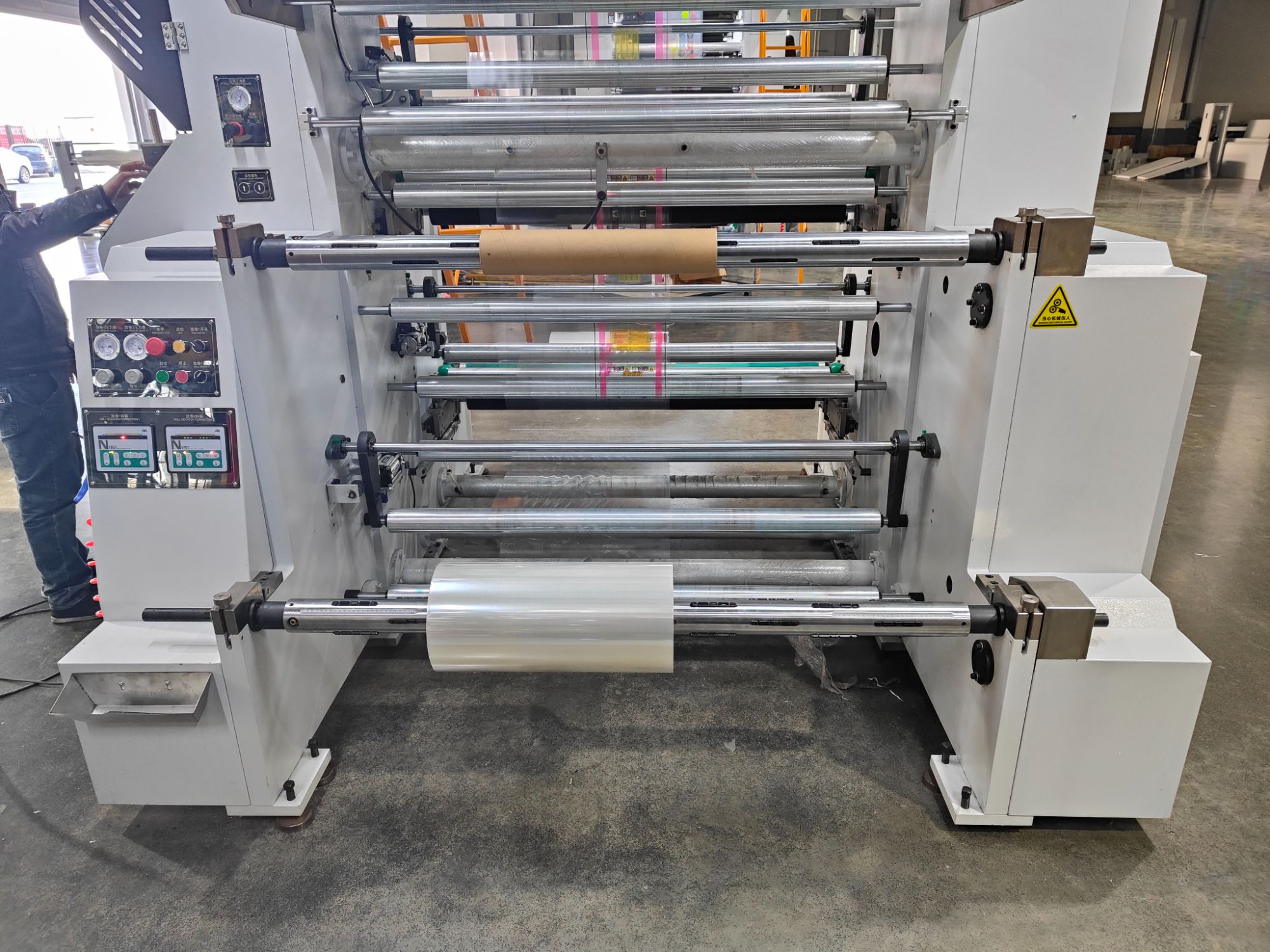

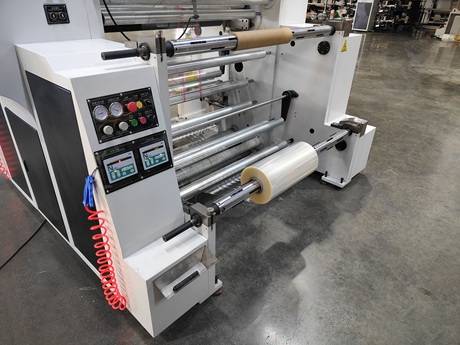

| Unwinding Unit of Stack Flexo Press for Gift Film Bag | |
|
|

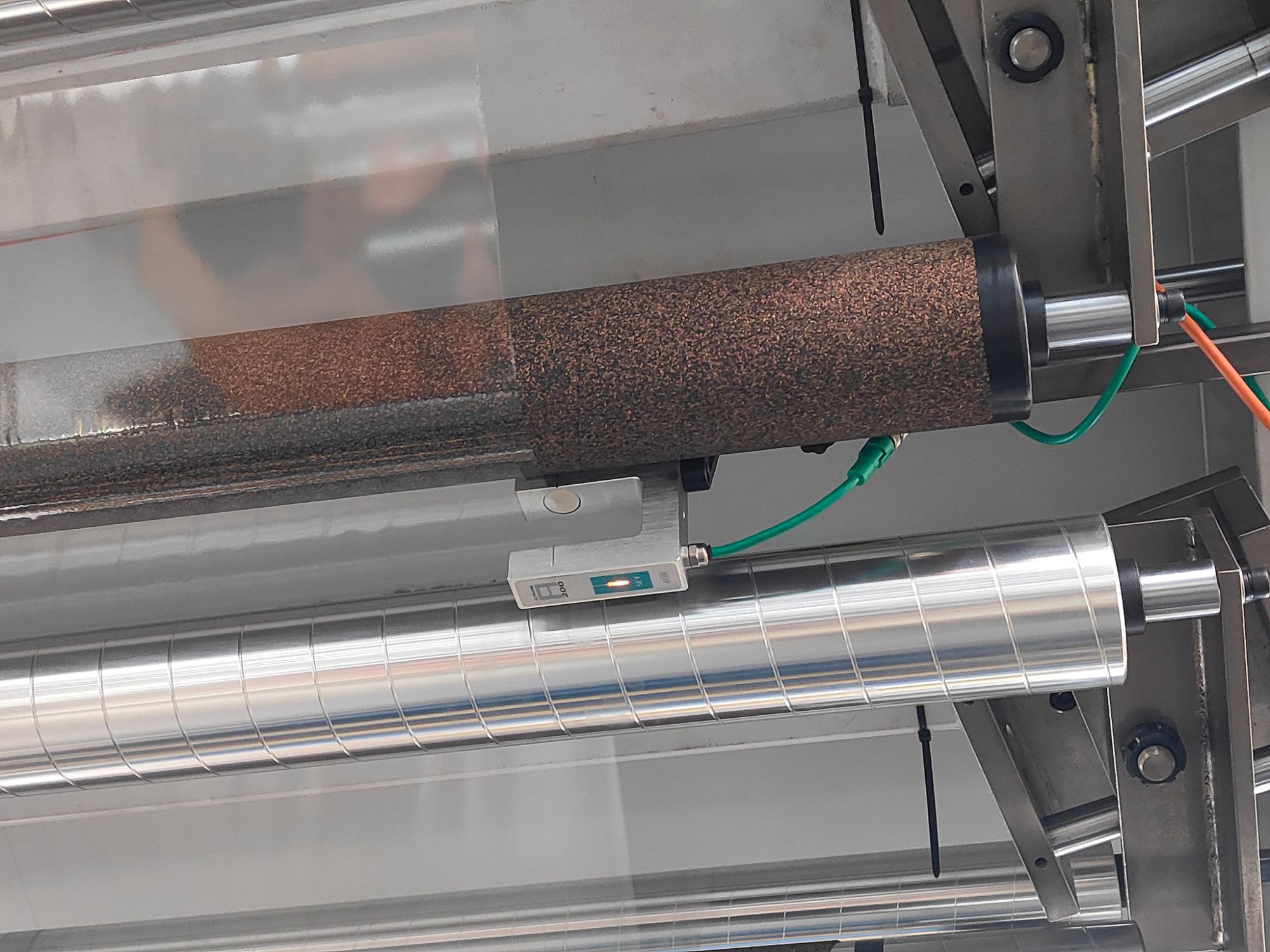

| Auto Web Guide System of Stack Flexo Press for Toast Film Bag | Printing Unit of Stacked Flexo Press for Dried Fruits Film Bag |
|
|

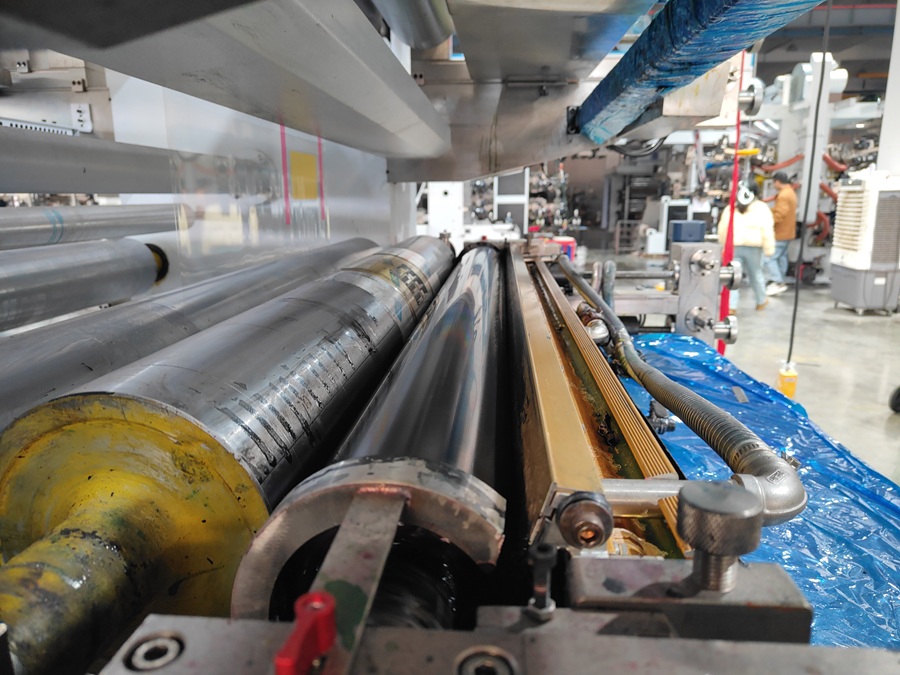

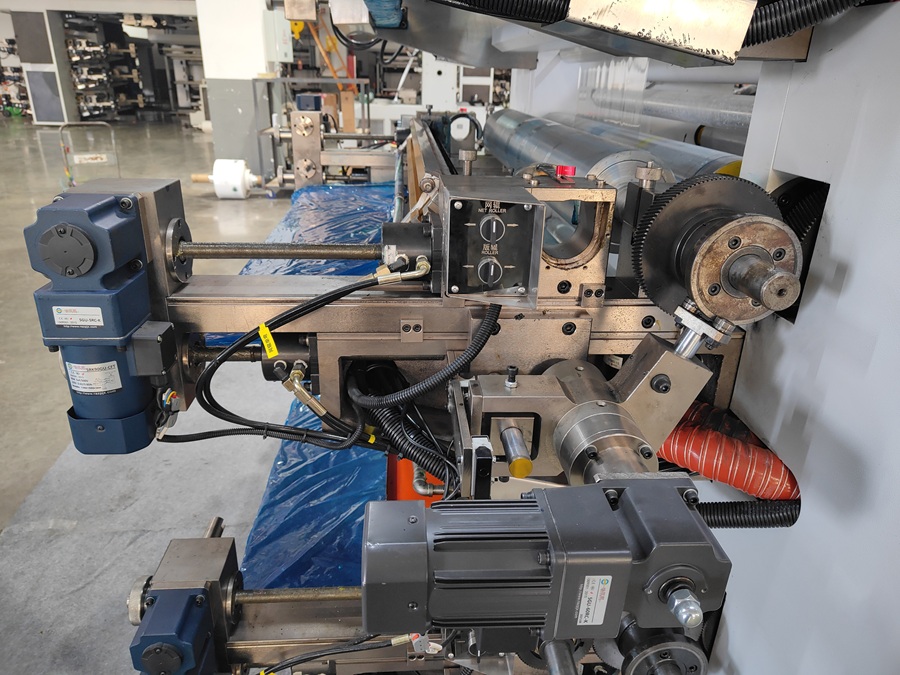

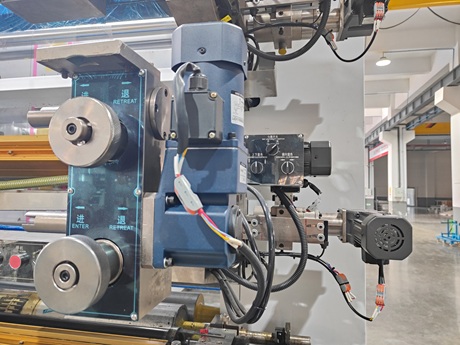

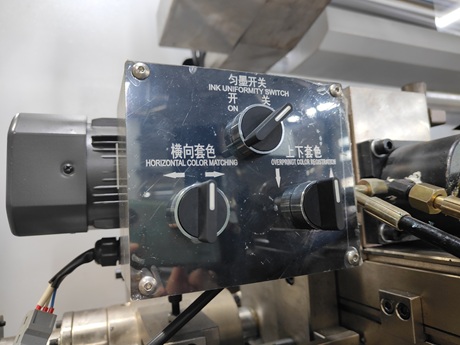

| Printing Unit of Stacking Flexo Printing Machine for Ziplock Film Bag | |
|
|
| Printing Unit of Stacking Flexo Printing Machine for Ziplock Film Bag | |
 |  |

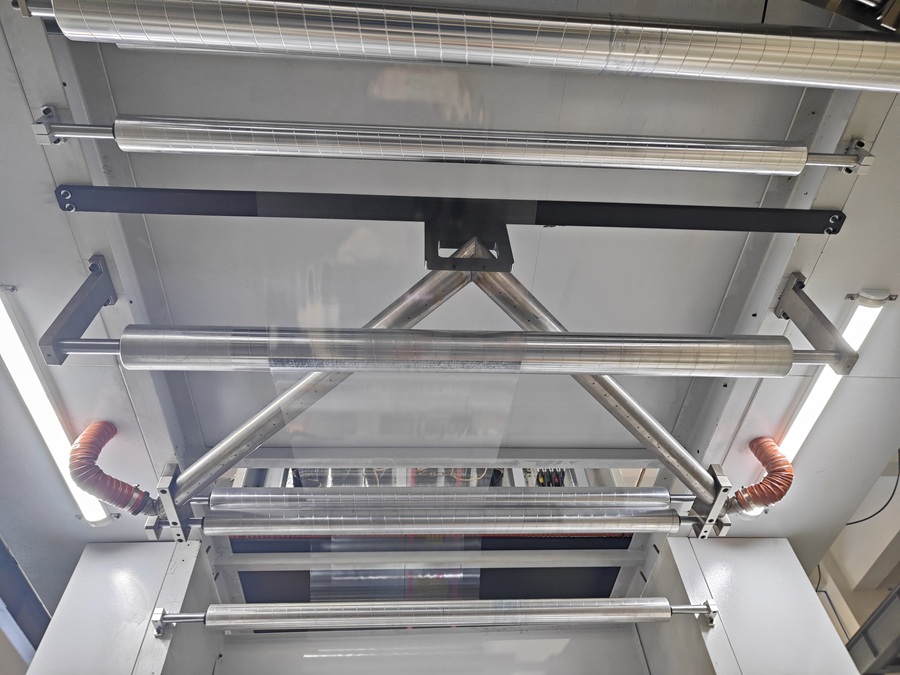

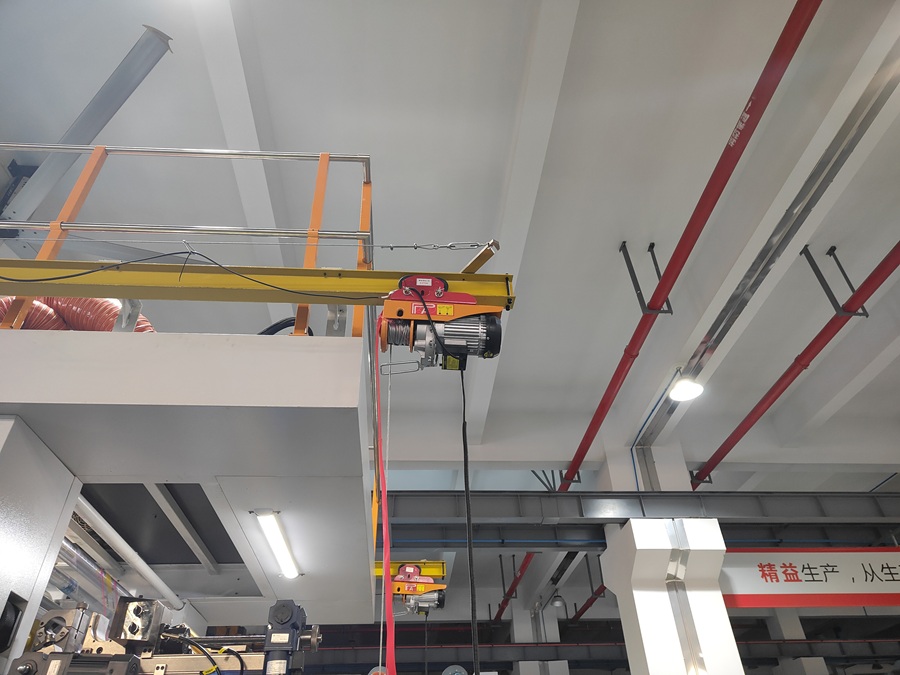

| Electric Wire Rope Hoist of Stacked Flexo Press | Turn Bar of Stacking Flexo Printing Machine |
 |  |

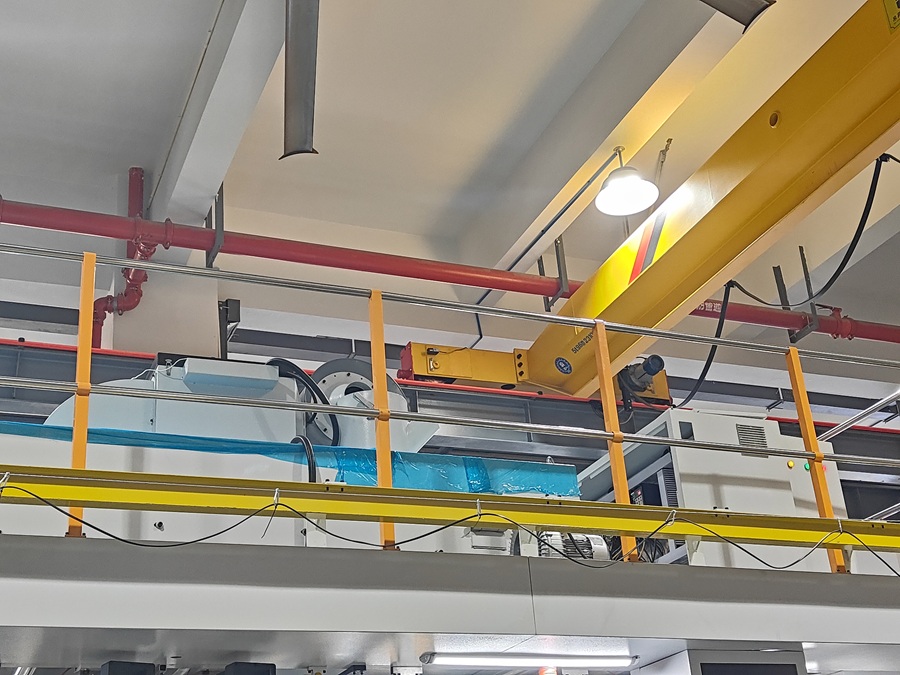

| Drying System of Stacking Flexo Press for Agriculture Feed Food Film Bag | |
 |  |

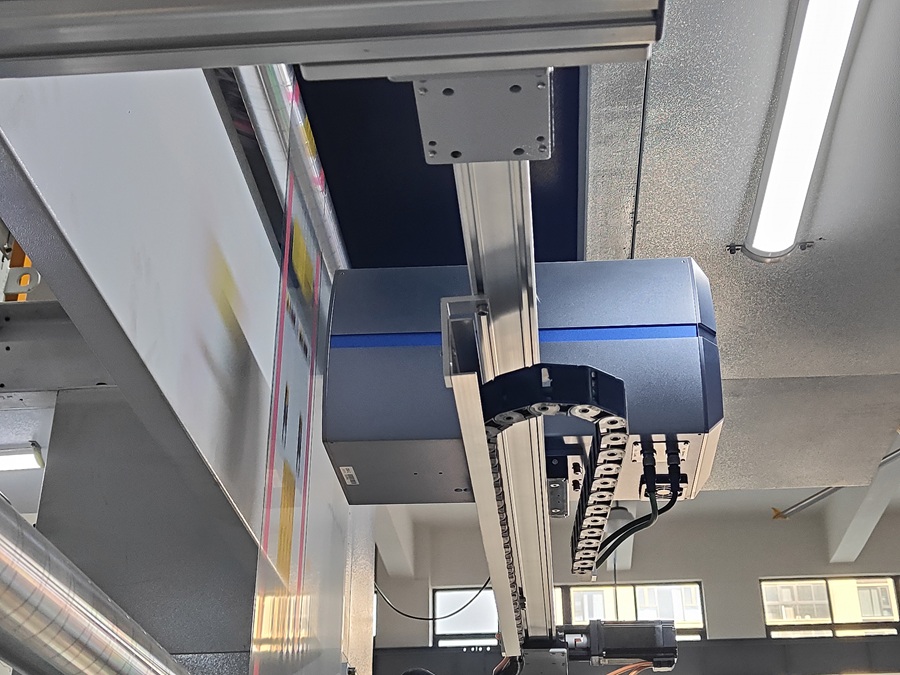

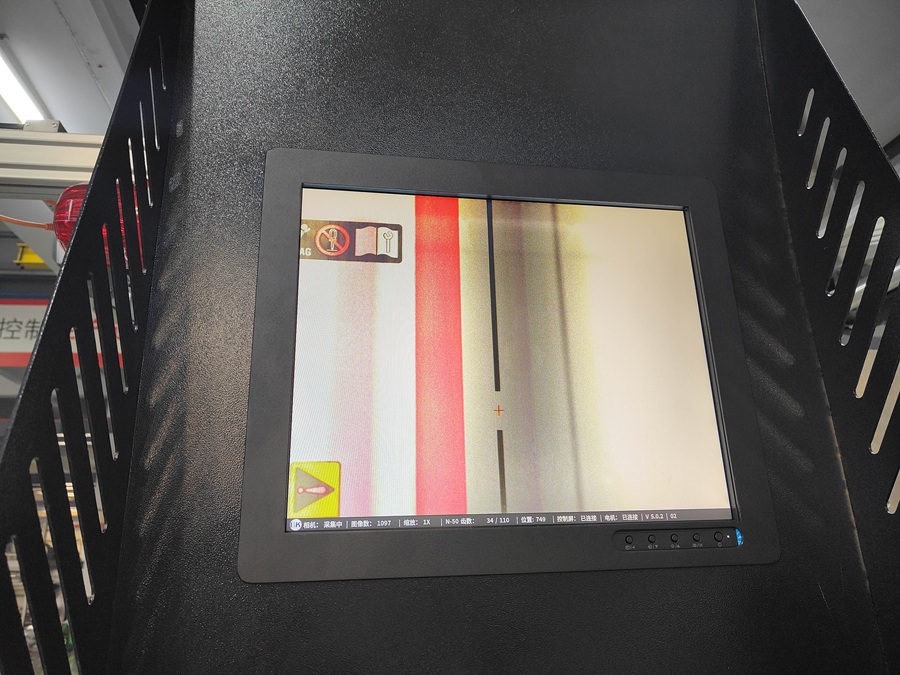

| Video Inspection System of Stacked Flexo Press for Chololate Wrapper | |
 |  |

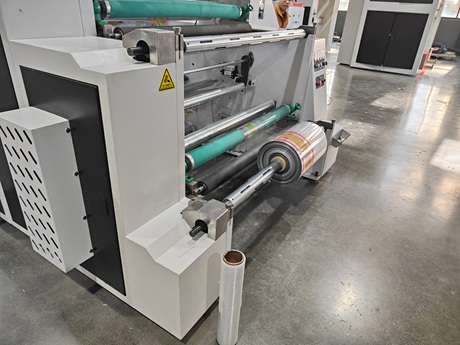

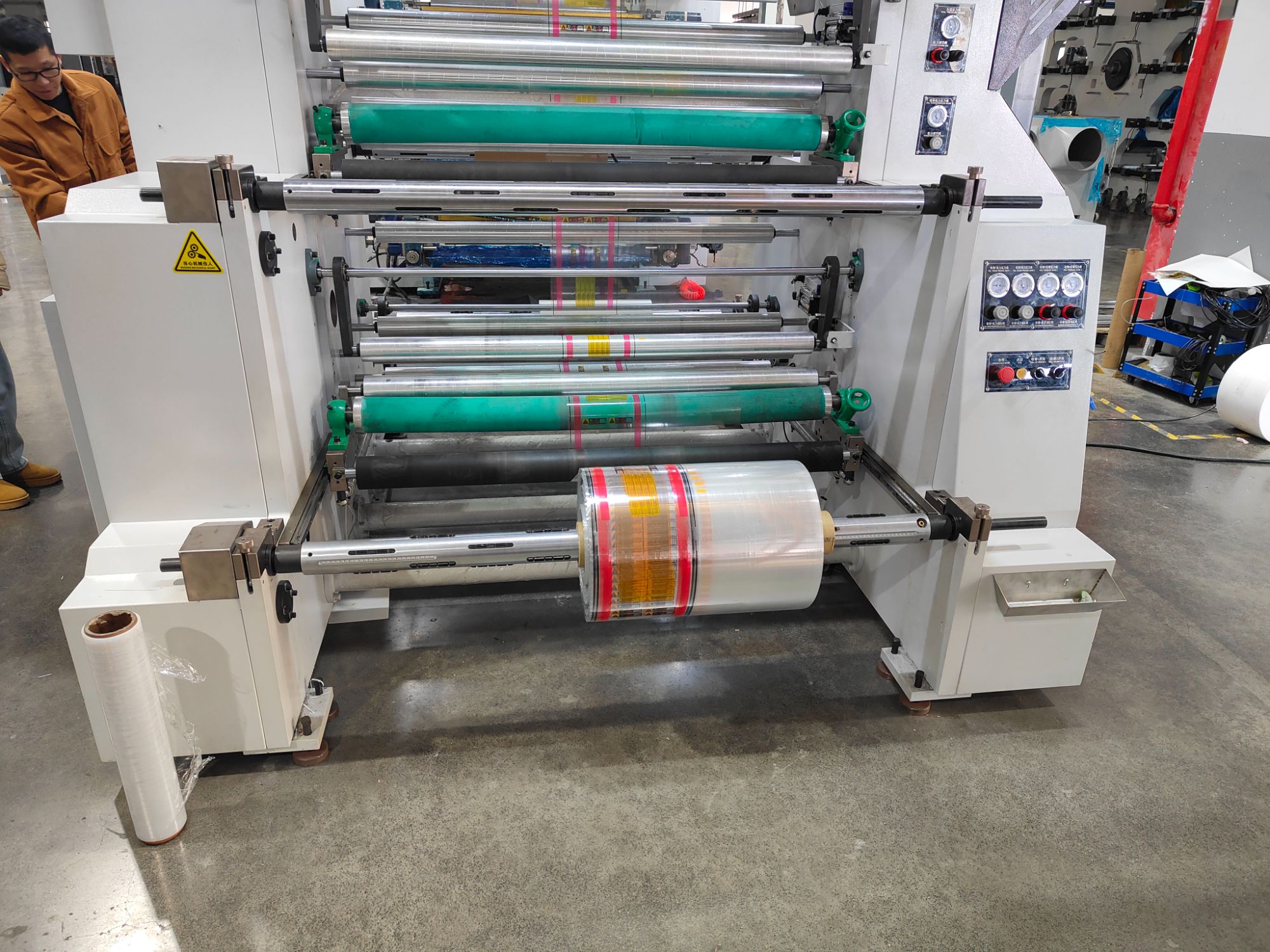

| Rewinding Unit of Stacking Flexo Printing Machine for Potato Chip Film Pouches | |
Q&A
- 1. How do your stack flexo press drive the cylinder rollers in these printing units?
Our machine printing unit include plate cylinder, impression cylinder, fountain cylinder, anilox cylinder, ink tray, flexible plate and doctor blade. We have two types driving system for these cylinder in printing units, timing belts driving and gear motors driving.(click to know more details)
- 2. How to transfer ink from the ink fountain to the printing substrate?
The fountain cylinder pick up ink and pass ink to the anilox cylinder. The the doctor blade removes the excess ink from the smooth non-engraved portions of the anilox roll and the land areas of the cell walls. Anilox cylinder even spread ink in the surface of the flexible plate. Impression cylinder and plate cylinder press substrate and transfer ink to substrate material surface.
- 3. How does your stack flexo printing press machine improve color registration accuracy?
Color registration system is one of the most factors in the flexo printing machine. We adopt different method to adjust color registration. The best one is full automatic color registration system which can be run in the control panel. You also can choose other method according your products. If your printing pattern is simple, you also can use manual adjustment. (click to know more about color registration)
- 4. Which type doctor blade install in your stacking type flexographic printing machine?
Our stack type and central drum impression flexo printing machine adopt chamber type doctor blade. Chamber doctor blade system have many advantages, including improved printing quality, reduce ink waste and lower cleaning costs.
- 5. How to choose a set correct ceramic anilox rollers for our products?
Our flexo printing machine adopt ceramic anilox roller as ink transfer roller. You can send your printing pattern AI format file. Our engineers will provide a solution to you according your patter colors and saturation requirements. Because LPI(line per inch) and BCM very impressed printing quality.
- 6. How is the tension of the unwinding and rewinding unit controlled?
Our flexo printing machine adopt magnetic brakes or motors to control unwinder and rewinder tension. Magnetic brake can well control paper rolls and non woven fabric materials tension. If you need print flexible packaging film, we suggest motor control tension. Because motor output tension is more sensitive which is better for pressure sensitive material (such as opp, bopp, pvc film, lamination, self adhesive paper rolls).
- 7. Can I add static image inspection system to my flexo printing machine?
Of course you can. The static image inspection system uses a high-resolution camera to capture the printing image in real time, checking whether the "+" pattern printed by each color printing plate roller on the printing material overlaps to ensure color registration accuracy. The operator checks the screen to see whether the "+" pattern of each color on the printing material overlaps. The static image inspection system also provides real-time feedback and alarms. If there is no overlap, the automatic color registration system can be used to adjust, or the plate roller position can be adjusted manually.
- 8. How do I change the plate roller? How long will it take me?
First, you should stop the flexo printing machine to clean up the ink, paper scraps and other debris around the plate roller.
Then, use a wrench to loosen the fixing bolts at both ends of the plate roller, gently tap to separate the old plate roller from the printing roller, and use a lifting device to move the old plate roller out.
Next, put the new plate roller accurately into the installation position and tighten the bolts.
Finally, adjust the pressure between the new plate roller and the printing roller, and start the machine for the first printing. During the process, check whether the plate roller runs smoothly, whether there is any abnormal noise or vibration, and the printing effect.
Usually, it takes 30 minutes to 1 hour to replace the plate roller. If the plate roller is large or the installation position is complicated, it may take 2 hours or more.
- 9. How can I prevent the anilox roller cells from clogging when my flexo printing machine stops running?
The anilox roller can be cleaned in time by hot alkali solution or ultrasonic cleaning, or by using a pre-inking motor. The pre-inking motor converts electrical energy into mechanical energy to drive the anilox roller to rotate slowly, keep the ink circulating in the anilox roller cells, prevent deposition and drying, and help dissolve and disperse some of the dried ink.
- 10. When I need to print on both sides, do I need to add special structure to this machine?
If you choose to print alternately, you need to equip a turn bar. It can be installed between two adjacent printing units, uses rollers and air pumps to flip the material for printing the back side after the front side.
If you choose to print synchronously (printing on both sides at the same time), two independent printing units are required to process the front and back sides respectively.
The specific configuration of the 4-color flexo printing machine is as follows:
1 color group prints the front side, 3 color groups print the back side: suitable for the situation where the front side printing content is less and the back side printing content is more.
2 color groups print the front side, 2 color groups print the back side: suitable for the situation where the front and back printing content is relatively balanced.
The specific configuration of the 6-color flexo printing machine is as follows:
3 color groups print the front side, 3 color groups print the back side: suitable for the situation where the front and back printing content is relatively balanced and more.
2 color groups print the front side, 4 color groups print the back side: suitable for the situation where the front printing content is less and the back printing content is more.
4 color groups print the front side, 2 color groups print the back side: suitable for the situation where the front printing content is more and the back printing content is less.
- 11. What drying systems can be equip for this model of machine? How do I choose the drying system?
This model machine can be equip with hot air, UV, IR, LED drying system. Different printing materials and inks require different drying systems.
Solvent-based inks are usually dried with hot air drying system or hot air + infrared drying system. Hot air evaporates the solvent and infrared heats the surface. UV inks are usually cured with UV drying system without heating. Water-based inks contain more water and need to be dried with hot air drying system.
Paper materials are generally dried with hot air drying system or hot air + infrared drying system to ensure uniform heating and avoid deformation. Film materials are easy to deform and are often dried with low-temperature hot air drying system. Special materials such as metal foils are often dried with hot air drying system or infrared drying system to prevent damage.
